Summary of Contents for 2GOability Quest

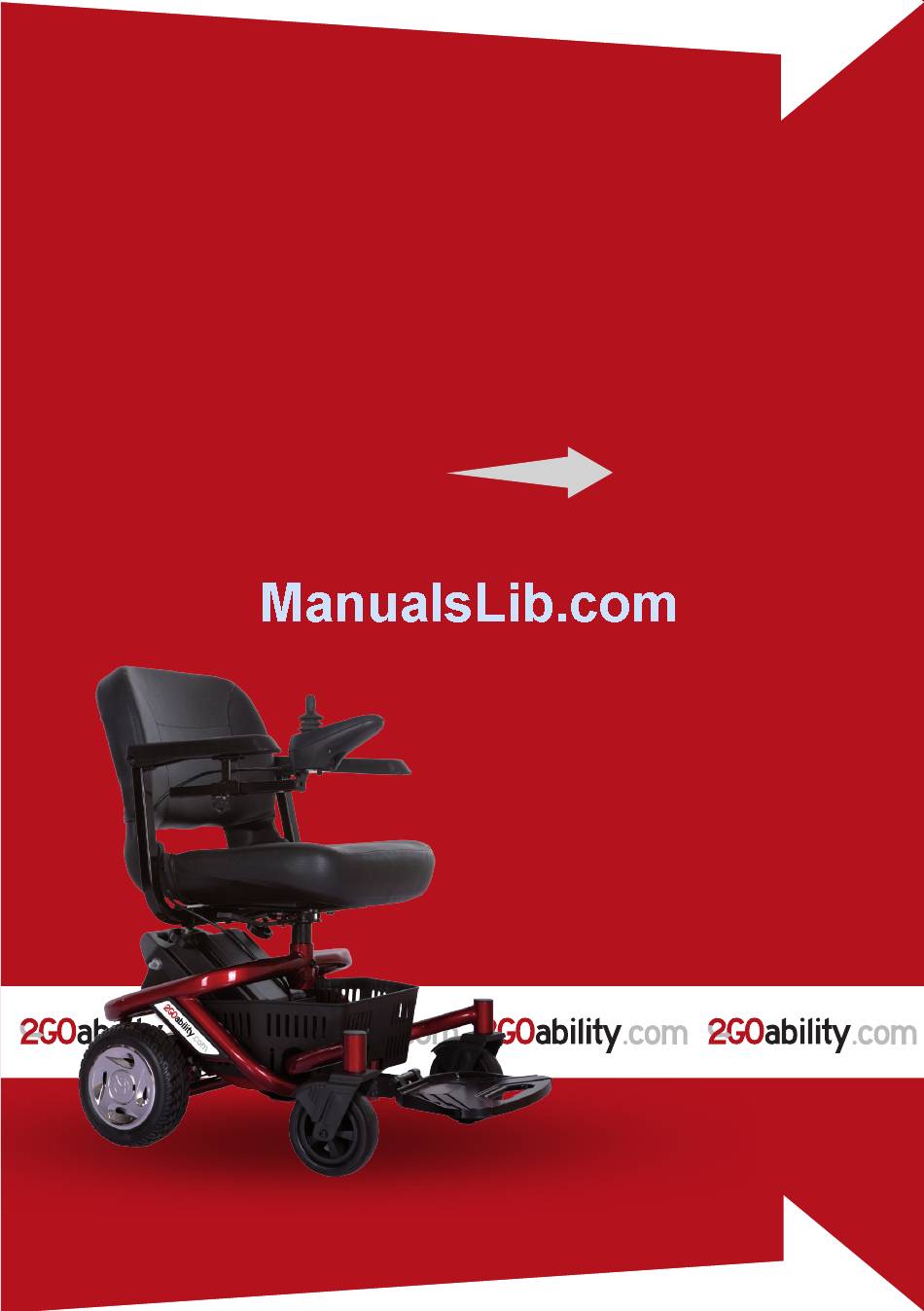

- Page 1 Quest User Manual...
- Page 2 We reserve the right, therefore without prior notification, to alter this guide. It is important that your guide for the use of the Quest power chair is read carefully. The manual contains important information about the safe use and maintenance of your Quest power chair.
- Page 3 Quest Fill out the information on your authorized dealer below: Company: ………………………………………………………………… Address: ………………………………………………………………… ………………………………………………………………… Telephone number: ………………………………………………………………… Fax number: ………………………………………………………………… Email address: ………………………………………………………………… Website: …………………………………………………………………...
-
Page 4: Table Of Contents
IDENTIFICATION ......................4 GENERAL EXPLANATION CONCERNING YOUR POWER CHAIR ........5 2.1 C OMPONENTS OF THE POWER CHAIR ..................5 2.2 G ENERAL EXPLANATION OF THE FUNCTION AND POSSIBILITIES OF YOUR POWER CHAIR ....5 SAFETY REGULATIONS ....................6 3.1 G ENERAL SAFETY REGULATIONS .....................6 3.2 W ARNINGS FOR SAFE USE... -
Page 5: Identification
Your Quest power chair is equipped with a unique serial number. You can find this number on the frame of your Quest power chair. Below is an example of the frame label on which you can find the identification number. Furthermore you will find the explanation of the various data stored on the frame label listed below. -
Page 6: General Explanation Concerning Your Power Chair
The Quest power chair is equipped with multifunction brakes and stable wheels which roll easily. The Quest power chair is especially developed so that it can be adjusted to every individual user. Your Quest power chair is a medical equipment product and is not a standard consumer product. -
Page 7: Safety Regulations
Protect your 2GOability Quest power chair by checking it regularly. When a part of your Quest power chair is not functioning properly, a dangerous situation could occur. Warning: You must keep your Quest power chair in a good state to guarantee safe use. 3.2 Warnings for safe use Warnings Always operate your power chair with thought, care and safety;... - Page 8 Do not disassemble the tire. If disassembly is required, have your authorized 2GOability dealer perform any necessary maintenance or repair; Do not attempt to inflate the tires of your power chair. Your power chair is equipped with foam filled flat free tires that do not require inflation;...
-
Page 9: Instructions For Use
Quest INSTRUCTIONS FOR USE Tip Before turning on the power of your power chair, take note of your environment and set your speed control accordingly. For indoor driving, we recommend that you select the lowest speed setting. For outdoor driving, we recommend that you select a speed setting at which you feel comfortable, safe and in control of your power chair. - Page 10 Joystick The joystick controls the speed and direction of your power chair. When you are not pushing on the joystick, or when you release the joystick, the joystick will automatically return to the neutral position, the chair will decelerate, as the electromagnetic brakes are applied, and come to a smooth stop.
-
Page 11: Getting On And Off
Release the joystick to clear the fault. Note that this is not a fault. If the condition persists after removing your hand, the joystick may be damaged. Contact your 2GOability dealer. Battery gauge flashes rapidly The control system safety circuits have operated and the control system has been prevented from moving the wheelchair. -
Page 12: Freewheel Mode
Before getting on your power chair: Check to be certain that the power is turned off. This will eliminate the possibility of accidentally activating the paddle controls and causing injury to yourself or to others; Check to be certain that your power chairs brake handle is in the engaged ... -
Page 13: Indicators
Maximum speed / profile indicator flashes This indicates the speed of the wheelchair is being limited for safety reasons. Contact your 2GOability dealer. 4.5 Locking / unlocking the power chair The VR2 control system can be locked to prevent unauthorized use. -
Page 14: Control Through Tight Spots
4.6 Control through tight spots As you use your power chair to greatly increase your mobility, you will undoubtedly encounter some obstacles that will require practice to manoeuvre smoothly and safely. Below are some common obstacles that you may meet during the daily use of your power chair. -
Page 15: Motor Braking System
Quest Curbs Do not go up or down a curb that is higher than 3,5 cm; Always use caution when descending any curb; Approach the curb so that both back wheels of your power chair go over the curb ... - Page 16 The FDA has determined that each make and model of power chair can resist EMI/ RFI to a certain level. The higher the lever of resistance, the greater the degree of protection from EMI/ RFI – measured in volts per meter (V/m). The FDA has also determined that current technology is capable of providing 20 V/m of resistance to EMI/ RFI, which would provide useful protection against common sources of interference.
-
Page 17: Instructions For Use And Mounting Options
ADJUSTMENTS MADE BY YOURSELF ARE STRONGLY ADVISED AGAINST AND CARRIED OUT AT YOUR OWN RISK. INSTRUCTIONS FOR USE AND MOUNTING OPTIONS In this chapter we will explore all the possibilities on your Quest power chair. Your power chair is an 2GOability Quest power chair. 5.1 Technical information... -
Page 18: Armrest Adjustments
5.2 Armrest adjustments Armrest width adjustment To adjust the armrest width: Loosen the adjustment knobs at the rear of the seat see picture 4; Slide the armrests in or out to the desired width; Tighten the adjustment knobs. ... -
Page 19: Seat Adjustments
Quest 5.3 Seat adjustments Warning: Be sure the seat is correctly installed and locked before operating your power chair. Seat rotation lever Push down the seat rotation lever and rotate the seat to the desired position; Release the handle to lock the seat. -
Page 20: Footplate Adjustments
5.4 Footplate adjustments Footplate angle adjustment Fold the footplate upward for easy access to the angle adjustment bolt, see picture 7; Turn the jam nut counter clockwise with a 17mm wrench to loosen; Use an 8mm Allen wrench to turn the adjustment bolt. Turn the adjustment bolt ... - Page 21 Quest Joystick bracket length adjustment Loosen the adjustment knob, see picture 9; Slide the joystick holder in or out to the desired position; Tighten the adjustment knob. Picture 9 Joystick position Loosen the joystick adjustment screw, see picture 10;...
-
Page 22: Dis)Assembly
11; Connect the joystick control to the VR2 power module, see picture 12; For disassembly, reverse the assembly process. Picture 11 Picture 12 Battery replacement If your batteries need replacement, contact your 2GOability dealer. - Page 23 Quest Placing the seat Fold the seat back down; Grasp the seat firmly on each side, lift the seat and align the seat pin with the hole in the seat post receiver, see picture 13; Insert the seat into the seat post;...
- Page 24 Arm installation Loosen the armrest width adjustment screw from the armrest receiver tube at the bottom rear of the seat frame, see picture 14; Insert the armrest into the arm receiver tube, so that the armrest pad faces forward the front of the unit;...
-
Page 25: Transport And Transit In Car
Picture 15 TRANSPORT AND TRANSIT IN CAR Your 2GOability Quest power chair is designed to be easily transported by car. See chapter 5.4 how to disassemble your power chair and see chapter 5.5 assembly for mounting your power chair. -
Page 26: Care And Maintainance
CARE AND MAINTAINANCE Routine maintenance The 2GOability Quest power chair is virtually maintenance free. All off the bearings on your power chair are permanently lubricated and sealed. No additional lubrication is required. There are, however, several things that you can do to help keep up the appearance and maintain the performance of your power chair. - Page 27 Quest Vinyl seat Clean with a mild soap or mild detergent and a damp cloth. A vinyl cleaner may also be used. Batteries and charging Battery maintenance is the most important part of maintaining your power chair. Keeping the batteries fully charged helps to extend battery life. Use the following guidelines to help keep your batteries in optimum condition.
-
Page 28: Charging The Batteries
Charging the batteries Your power chair charging system is designed for your safety and for your convenience; Turn off the power on the joystick; Insert the matching charger plug into the joystick’s charging socket that is located at the front of the joystick or alternatively into the battery pack, see picture 16 and 17;... - Page 29 If the main circuit breaker trips, please wait for approximately one minute and then push the reset button to reset the main circuit breaker, see picture 18. Picture 18 Warning: Do not attempt electrical repairs. Consult your authorized 2GOability dealer.
-
Page 30: Problem Analysis And Solutions
PROBLEM ANALYSIS AND SOLUTIONS Your 2GOability Quest power chair is inspected and adjusted so that you can use it immediately. Self-help guide If a system trip occurs, you can find out what has happened by counting the number of LEDs on the battery gauge that are flashing. -
Page 31: Warranty
2GOability offers a warranty period of 2 years on the complete product except the batteries: 6 months. Also you can find the warranty periods label on the frame of your Quest power chair. See also chapter 1. Tip We recommend the use of only 2GOability replacement parts. - Page 32 identification label as described in the manual, see chapter 1. The Quest power chair that is described and showed in this manual can differ from your own model in details. However, all instructions are relevant, independent of slightly different details. We reserve the right to change the product in this manual without further notice.
-
Page 33: General Maintenance Instructions
Checking the reversibility of User front wheels Cleaning User Checking the stability of the Retailers frame Oiling the wheel bearing Retailers Tip The 2GOability Quest complies with EN 12184 and EN 1041. For more information, please visit our website, www.2GOability.com... - Page 34 2GOability.com: ‘Créateur de solutions de mobilité’ France: info@2goability.fr European distribution centre: UK/Ireland: info@2goability.co.uk Belgium: info@2goability.be 1, Route d’Anrosey, Germany: info@2goability.de Laferté sur Amance Spain: info@2goability.es 52500 Haute-Marne Poland: info@2goability.pl France Netherlands: info@2goability.nl...
