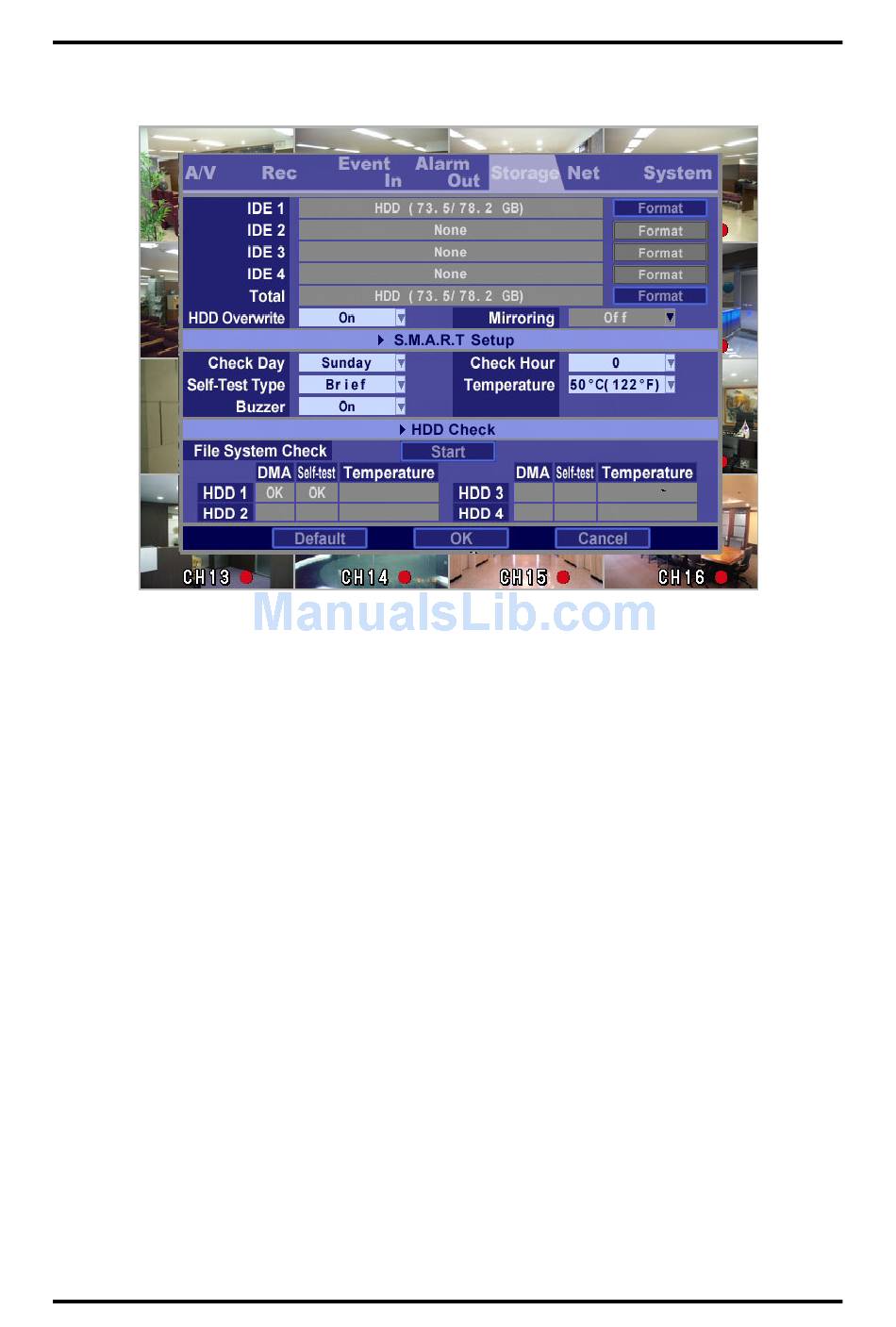

3-3-5. Storage

1) IDE1~IDE4
Display the information and usage of the hard disk drives. If you press the
'Format' button on each IDE, only that HDD will be formatted.
If you install the backup drive such as CD-RW, DVD, that information will be
shown on IDE4.
2) Total
Display all the HDD usage being used for the product. If you press the 'Enter'
button on here, all the hard disk drives will be formatted.
3) HDD Overwrite
Determine whether you want to continue recording if there is no spare saving
space at hard disk drives.
4) Mirroring
If you install two hard disk drives, you can set the second drive as a backup
drive by mirroring. If you choose 'On', you will be asked to format the second
drive. After conforming, the mirroring starts. This is the best way to avoid the
data loss. If you encounter any hard disk problem, you can perfectly restore the
data from the mirror hard disk drive.
If you install C and D hard disk drive, C will be mirrored to D. If you install
the 4(four) hard disk drive, that is C, D, E and F, C will be mirrored to D and E
will be mirrored to F. But in this case you can not use the backup IDE device.
In any case, the mirrored disk size will be the same or greater than master HDD.
