1-4-2. 8 and 16CH

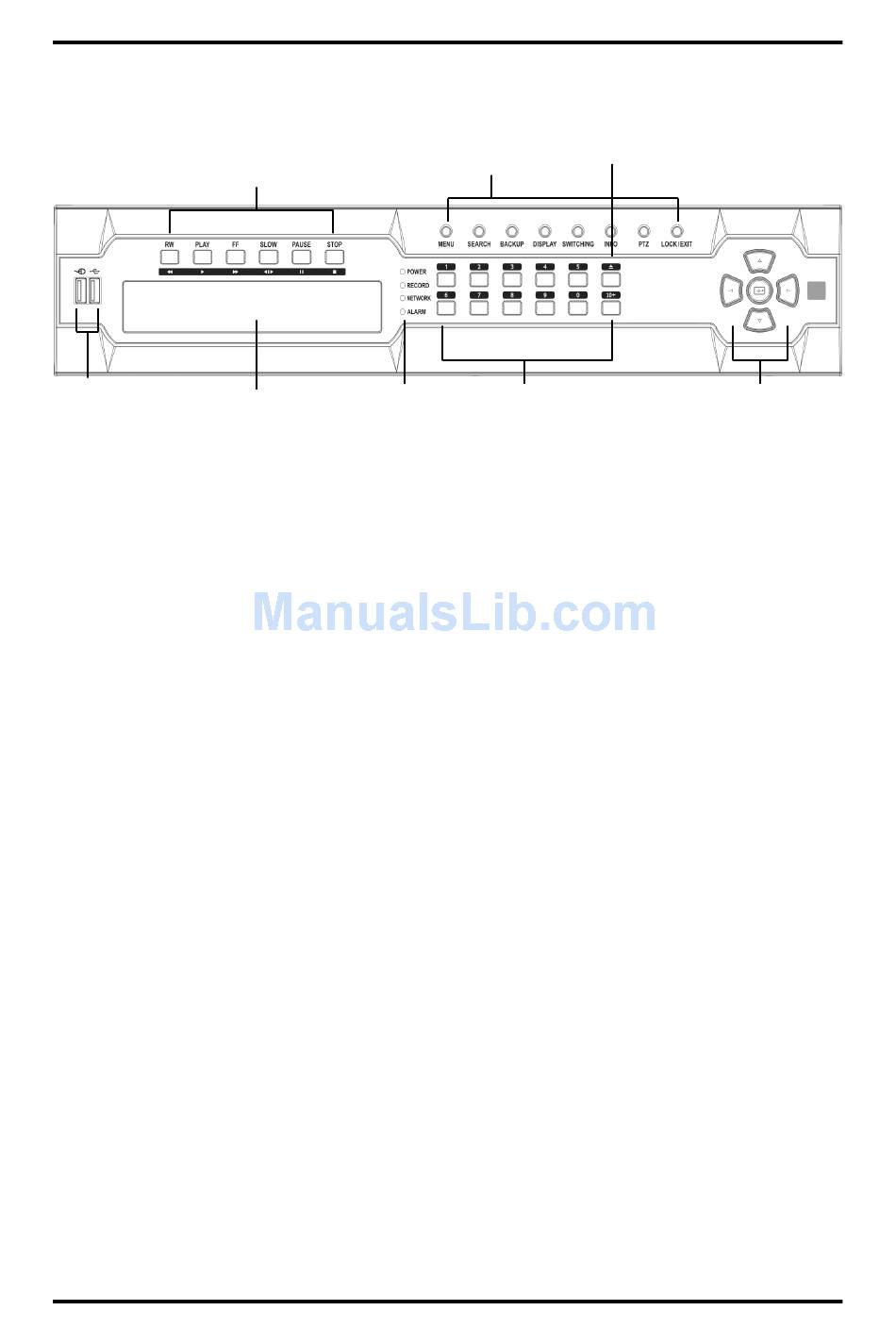

[Front Panel]
3. Playback button
4. USB port 5. Backup device
1. Number buttons : If you press this button, it will be changed to full screen in live
viewing or playback
(※ In menu and password setting, it is automatically converted to number buttons)
2. EJECT : It will open or close the backup drive such as CD-RW or DVD.
3. Playback buttons : It will be used on playback. If you press these buttons in live
mode, it will be automatically changed to the Instant Play mode. 'Stop' button
changes from the play mode to the live mode.
4. USB ports : These USB ports are for mouse and USB devices. You should
connect correctly the USB devices and mouse as picture directed.
5. Backup device : You can use the versatile backup devices such as CD-RW and
6. Function keys
1) Search : It will change to the playback mode from the live mode.
2) Backup : It will move to the backup screen from the live or play mode.
3) PTZ : It will change to the pan, tilt and zoom control mode from the live mode.
4) MENU : It will move to the setup screen from the live mode.
5) DISPLAY : It will change the screen splitting sequentially from 1, 4, 6, 9, 13 and
16. It can be adapted both live and play mode.
6) SWITCHING : It will change to switching mode except 16 splitting.
7) INFO : It will turn it on and off the GUI and OSD sequentially.
8) EXIT(LOCK) : If you want move to the upper menu or exit without saving, press
this button. On playback, it will disappear the search list for the better
viewing. On live viewing, it performs the system lock.
7. ARROW, ENTER : This button is used to change settings for the product in
8. Status LED
POWER : Blue. Power indicator.
RECORD : Red. It will be lit on while recording.
NETWORK : Green. It will be lit on while connecting the network.
ALARM : Red. It will be lit on when the events happen.
※ For more details, refer to [CH 3. How to Use]
8. LED
DVD-RW.
MENU Mode or used in Search Mode.
2. EJECT
6. Function key
1. Number buttons
12
CH 1 Product Introduction
7. Enter and arrow key
