Eclipse Security Nubix User Manual page 23

CH 2 Installation Method and Cautions

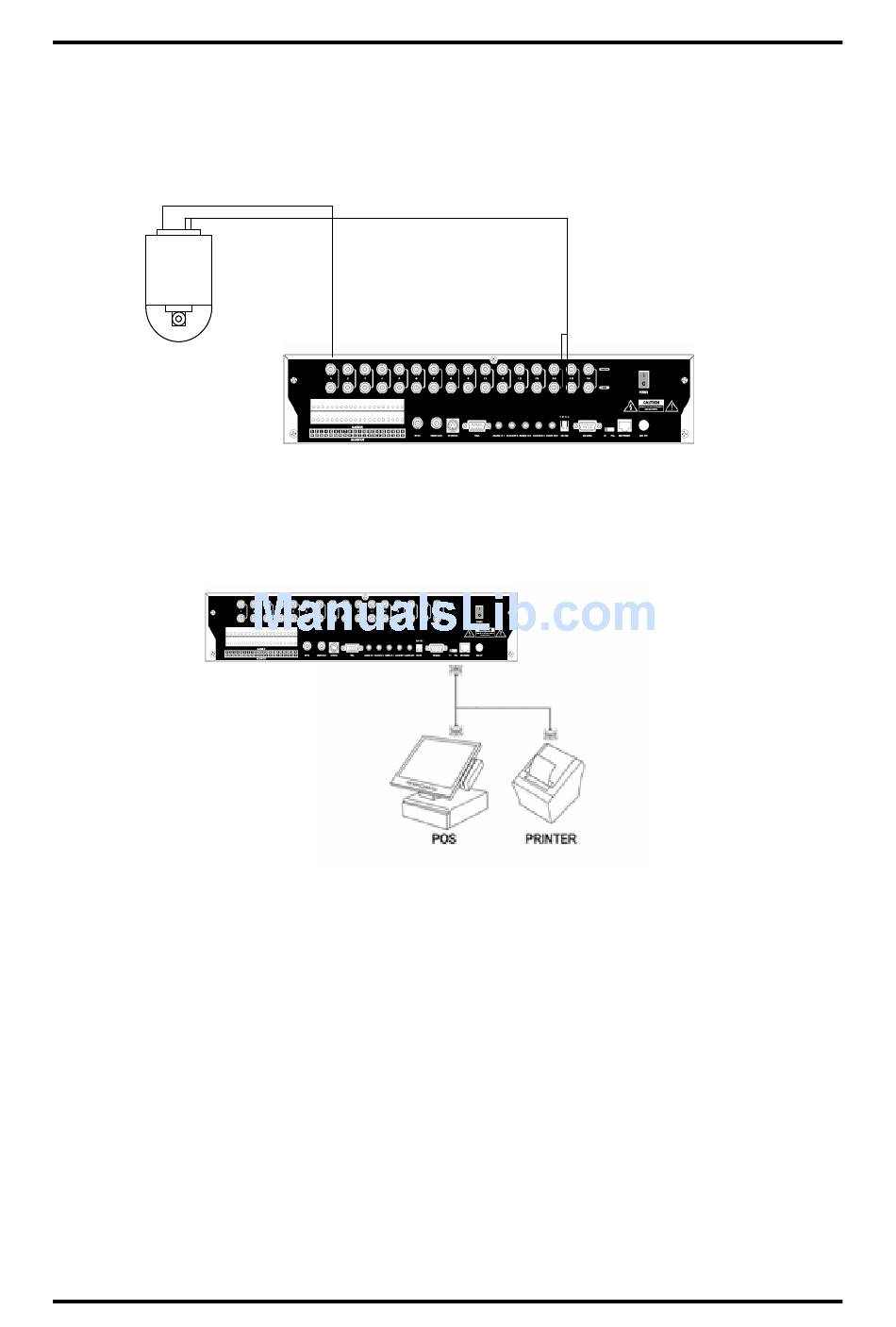

4) Connection Using PTZ camera
In case of using pan and tilt cameras, connect PAN/TILT DRIVE to product as
shown at following figure.
VIDEO CABLE
SPEED
RS485 CABLE
DOME
5) Connection with POS or ATM
In case of operating with POS or ATM , connect POS or ATM to product using the
expanded serial cable as shown at following figure.
Extended Serial Cable
※ For more details, refer to [Appendix A How to Connect POS].
• Attention
This DVR has one RS232 port. So you cannot use the POS and DVR
controller simultaneously.
6) Installing Hard disk drive
In case of installing the hard disk drive, open the upper case and install the hard disk
drive on the hard bracket. If you use the one hard disk drive, it should be set the IDE1
with master setting. If you use the 2 hard disk drives, it also should be set the IDE1
with 1 master and 1 slave setting. Remember that the main power should be off to
install the hard disk drive. If you have any trouble, please contact the technical
support.
22
