6. CONNECTION OF BY-PASS AND SINGLE UPS

6.1 INSTALLATION OF BY-PASS AND SINGLE UPS

TO UPS PARALLEL PORT

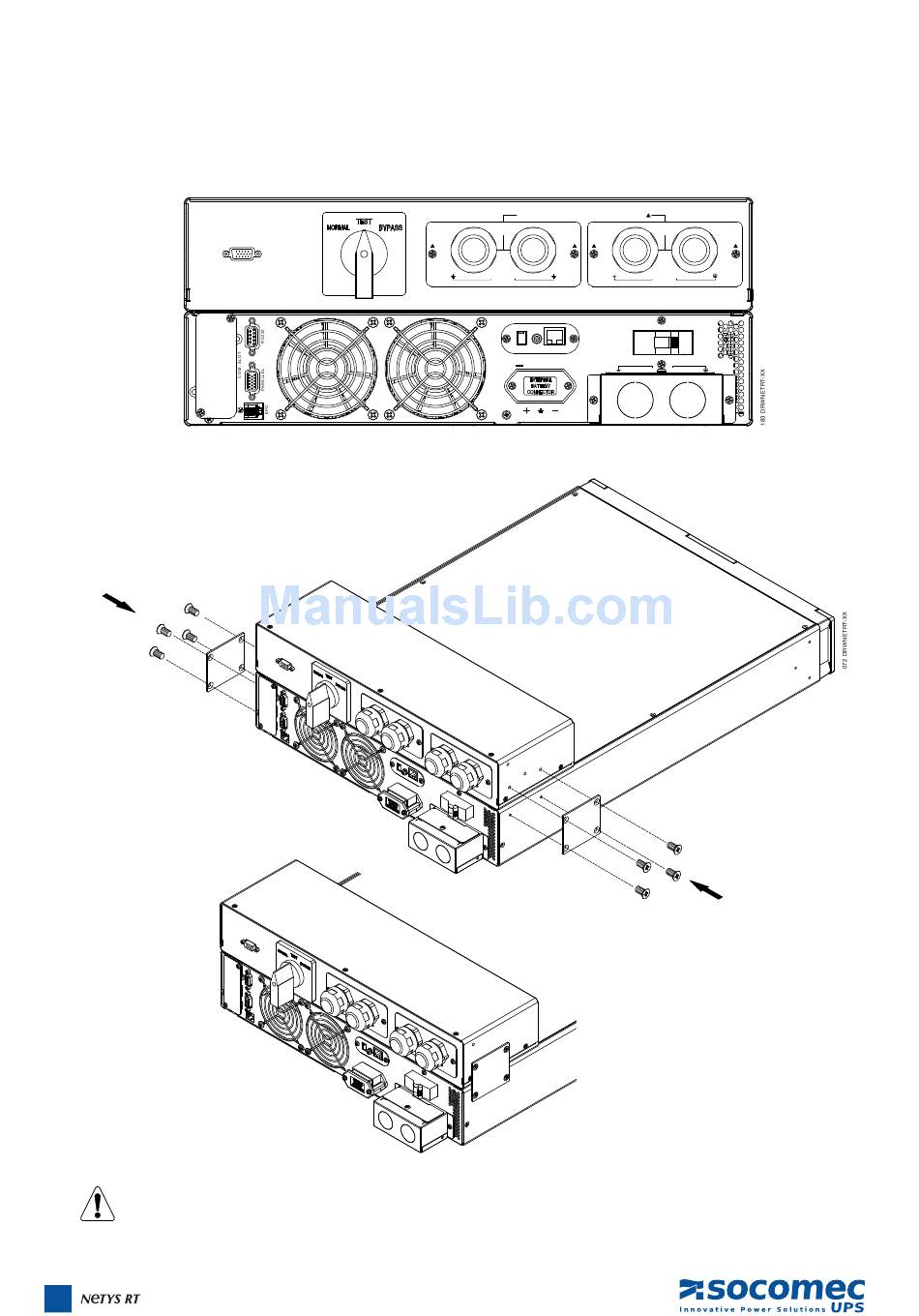

6.1.1 Fixing the BY-PASS to the UPS
Manual bypass is for 5/7/9/11 kVA models only.
18 5-11 kVA - Ref.: IOMNETRTXX01-GB 05
TO CONNECT WITH WIRES:LOOSEN SCREWS MARKED BY
200-240Vac
50/60Hz
N L L N
TO UPS OUTPUT TO UPS INPUT AC OUTPUT
MINI COM. SLOT
INPUT
BREAKER
230Vac
10 100
SW
Network
40A
OUTPUT
EXTERNAL BATTERY CONNECTOR
230Vac 50/60Hz
CAUTION: DO NOT DISCONNECT BATTERY
CABLE UNDER LOAD.
200-240Vac
50/60Hz
N L L N
AC INPUT
INPUT
230Vac 50/60Hz
N L L N
