Group Icon

The following options may appear for the user to configure:
Collapse - To collapse the group that will be represented by a single icon.
•
Expand - To expand the SIM group, in detail.
•
Property - To pop up a window to display the group information.
•
This window holds the following information:
Parameter
Device Name
Module Name
MAC Address
Remote Port No.
Local Port No.
Port Speed
Click Close to close the Property window.
xStack DGS-3600 Series Layer 3 Gigabit Ethernet Managed Switch

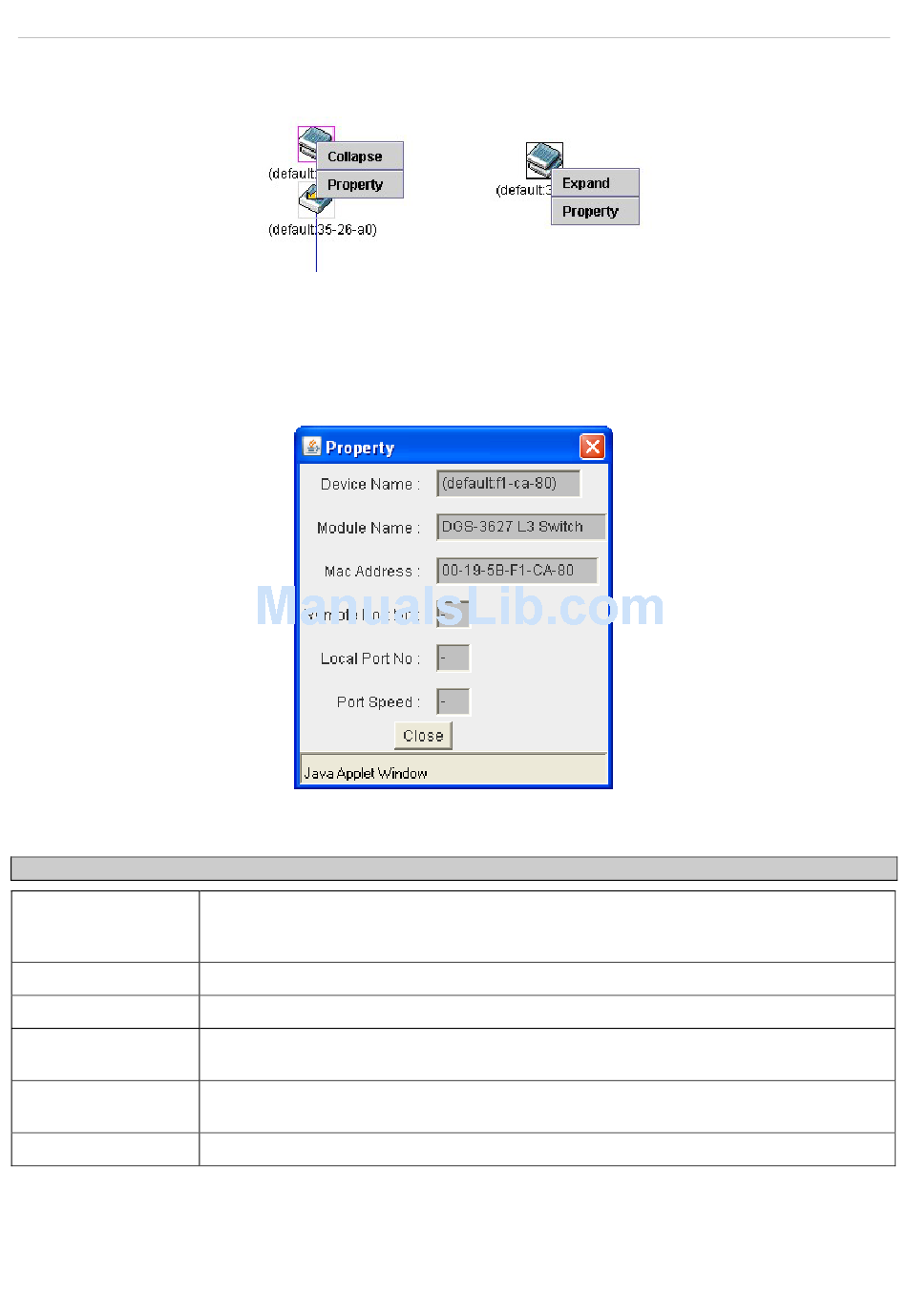

Figure 6- 67. Right-Clicking a Group Icon
Figure 6- 68. Property window
Description
This field will display the Device Name of the switches in the SIM group configured by the
user. If no Device Name is configured by the name, it will be given the name default and
tagged with the last six digits of the MAC Address to identify it.
Displays the full module name of the switch that was right-clicked.
Displays the MAC Address of the corresponding Switch.
Displays the number of the physical port on the MS or CaS that the CS is connected to. The
CS will have no entry in this field.
Displays the number of the physical port on the CS that the MS or CaS is connected to. The
CS will have no entry in this field.
Displays the connection speed between the CS and the MS or CaS
