Summary of Contents for Ledj LEDJ P85
-

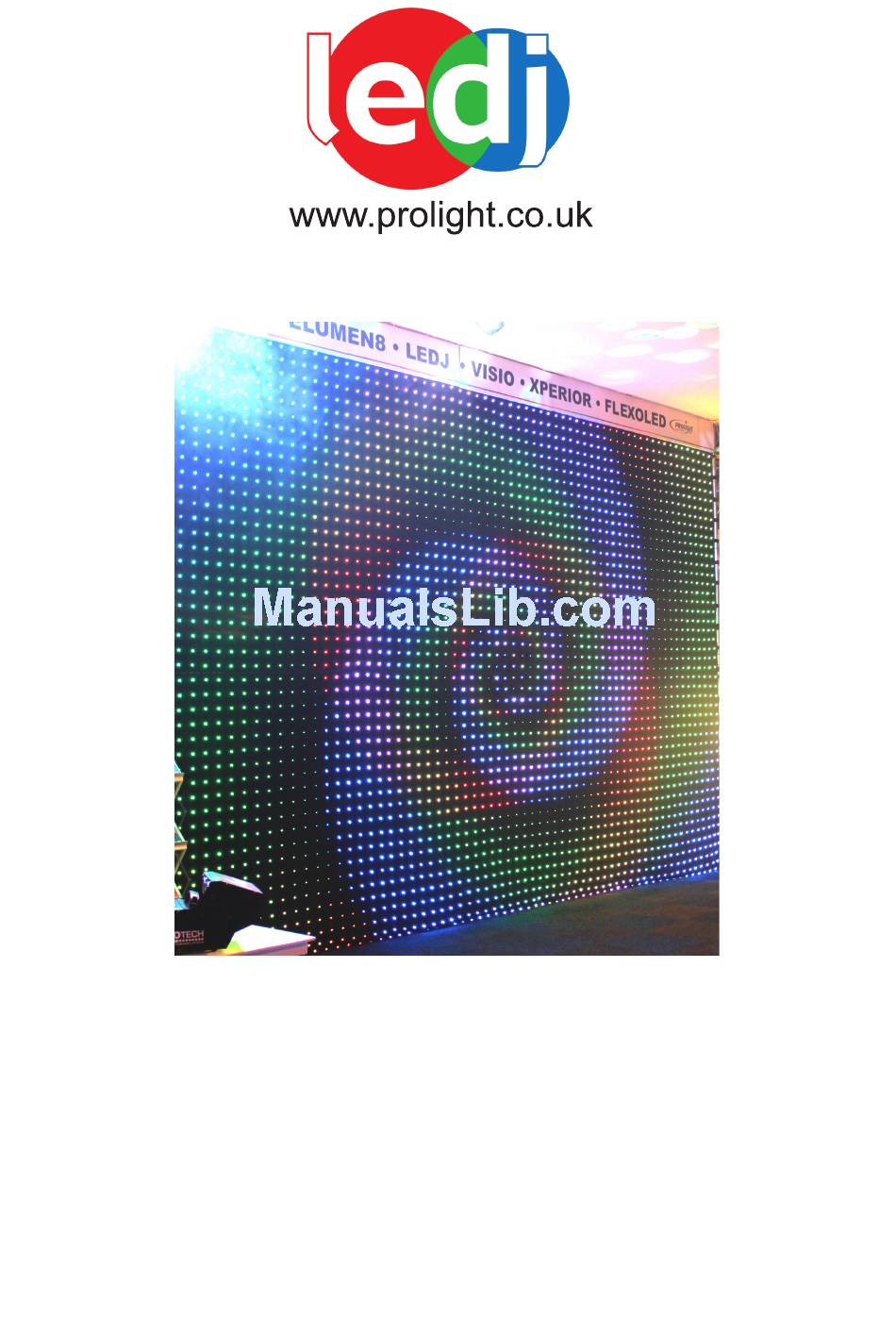

Page 1: User Manual
LEDJ P85 5.5 x 4M Pixel Cloth System Order code: STAR40 USER MANUAL... -
Page 2: Safety Instructions
LEDJ P85 5.5 x 4M Pixel Cloth System Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this... -
Page 3: Operating Determinations
LEDJ P85 5.5 x 4M Pixel Cloth System Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... -
Page 4: Technical Specifications
LEDJ P85 5.5 x 4M Pixel Cloth System Technical Specifications You should find inside the carton the following items: 1,4 x 2.75 x 2M Pixel Cloths 2, Instruction manual 3, DVI Box 4, Sub Controller 5, Connection cables 6, Power cable... - Page 5 LEDJ P85 5.5 x 4M Pixel Cloth System Operating System Operating System For the software to run correctly you must have the following operating system and hardware; Operating system: Windows98/me/2000/NT or XP Hardware configuration: CPU: Pentium ablove 300MHz Memory: 64Meg...
- Page 6 LEDJ P85 5.5 x 4M Pixel Cloth System Set up Setting Up the System Please be sure that before the installation procedure that you have connected the full system up to your computer. Please follow the connection instructions below. POWER...
- Page 7 LEDJ P85 5.5 x 4M Pixel Cloth System Software Installation Software Installation To begin the installation process, first please make sure you have received the software disc with the following files on. 1, Xmplayer, 2, 64-48(pm).rsps 3, Set up 4, Xmplayer set up.
- Page 8 LEDJ P85 5.5 x 4M Pixel Cloth System Setting The Software Setting the software (quick start guide) Once the XMPLAYER software has been installed you now need to set it up. To start the set up, double click on the “XMPLAYER” icon on your desk top and the programme window will appear (fig 8).
- Page 9 LEDJ P85 5.5 x 4M Pixel Cloth System Setting The Software Setting the software (quick start guide) After clicking on the “SEND ALL PARA” button a pop up window will appear and click OK. Once it has sent the information click on the “EXIT” button (fig 15) and exit the LED Control Manager After exiting the control manager a pop up window will appear asking you “are you sure you want to exit the programme”, simply click OK (fig 16).
- Page 10 LEDJ P85 5.5 x 4M Pixel Cloth System Multiple Screen Display Set Up Multiple Screen Display Set Up Before playing the software you will have to set up the multiple screen display option so when the preview window appears what you see in the preview window will be what you see on the Pixel Cloth as the Pixel Cloth is used as a second monitor.
- Page 11 (fig 5). Once you have chosen the style the preview will window will appear at the top left of your screen and a new file window will appear (fig 6). Fig 5. Fig 6. You should now be able to see on the LEDJ P85 Pixel Cloth what is being displayed in the preview window.
- Page 12 Once have chosen the relevant media file, to preview it just double click on the file you have just placed. To play the media file click on the “PLAY” button the top tab bar and it will output to the LEDJ P85 Pixel Cloth.
- Page 13 LEDJ P85 5.5 x 4M Pixel Cloth System Intelligent Set Up Setting Parameters: If you need to set the parameters further from the quick start set up guide then please follow the instructions below. Sending Card: Screen display: The screen display adjust the brightness of the screen and the scope is 1-256.
