Summary of Contents for Ledj SPECTRA PAR 7T3
-

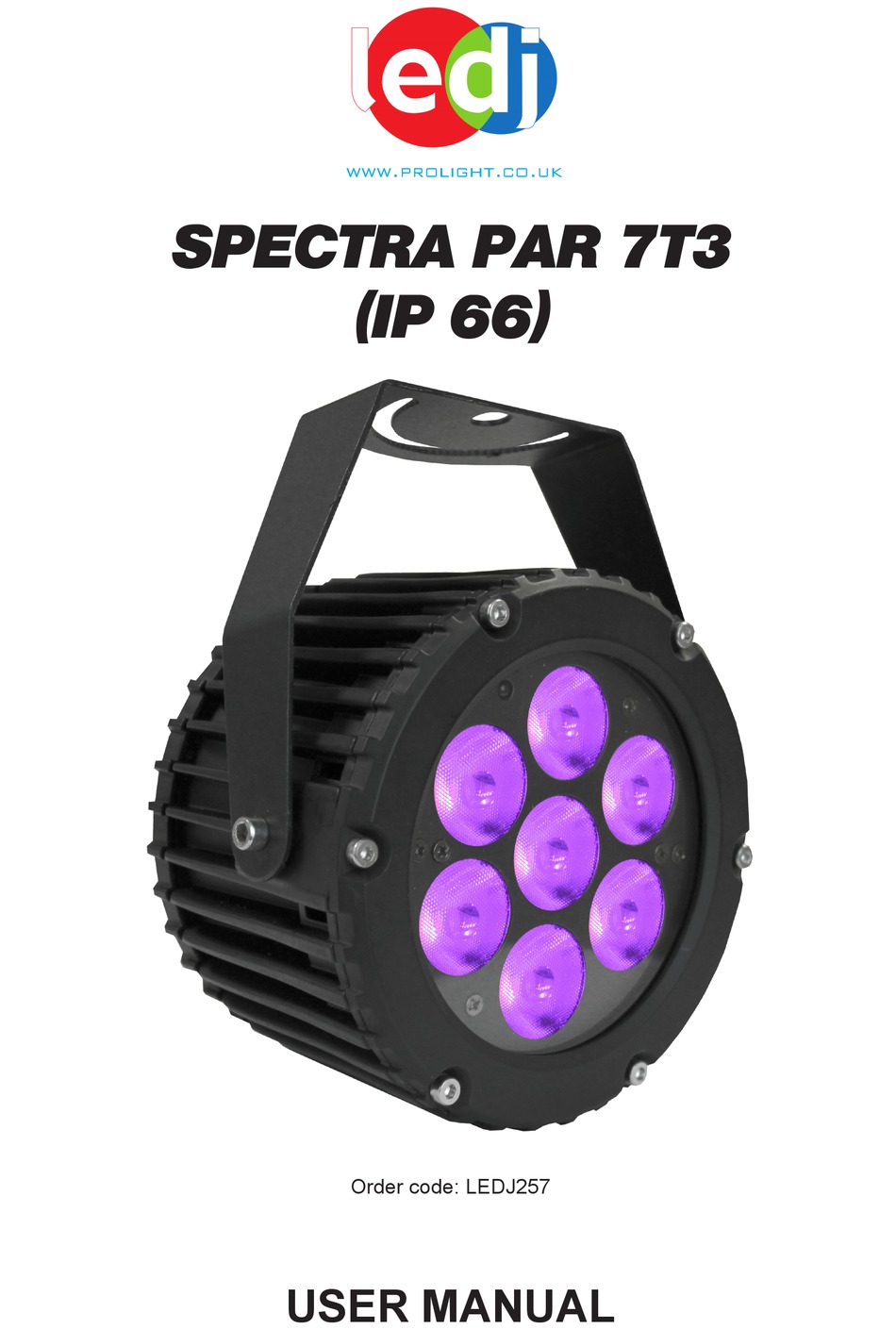

Page 1: User Manual

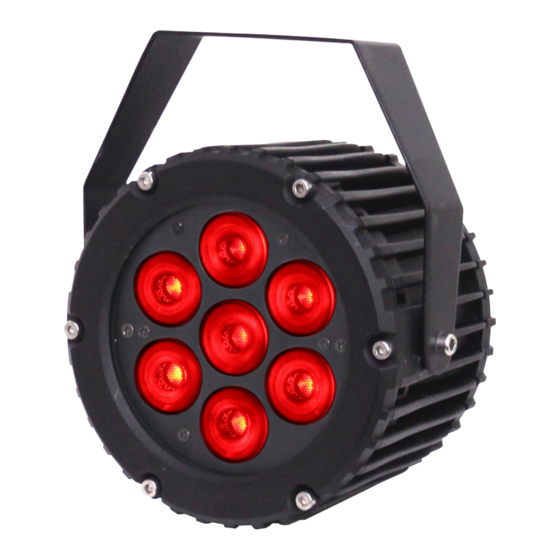

SPECTRA PAR 7T3 (IP 66) Order code: LEDJ257 USER MANUAL... - Page 2 Spectra Par 7T3 Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! INPUT VOLTAGE OF 100~240V SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent...
-
Page 3: Operating Determinations
Spectra Par 7T3 Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... - Page 4 7, DMX in/out lead 8, LED display 9, IR receiver Setup Operating Instructions The Spectra Par 7T3 Exterior is a DMX-512 controllable unit made up of high efficiency RGB LEDs and will operate in stand alone, master/slave or DMX control modes.
- Page 5 If you set r, 9. and b to 000, the Spectra Par 7T3 will have no LEDs on (blackout). If you set r to 255 and 9. and b to 000, the Spectra Par 7T3 will be 100% Red. Built-in programmes: To activate the units built-in programmes, press the “M”...
-
Page 6: Restore Factory Settings
Spectra Par 7T3 DMX Programme Charts Master/salve mode: To set the unit as the master, simply use any of the above modes on the unit. To set the unit as a slave unit(s), press the “MODE” button to show “SLAV” on the LED display. - Page 7 Spectra Par 7T3 DMX Programme Charts 5 channel mode DMX chart Value Channel Function 0-255 Red 0-100% 0-255 Green 0-100% 0-255 Blue 0-100% 0-255 Master dimmer 0-100% 0-255 Strobe (slow to fast) 6 channel mode DMX chart...
- Page 8 Spectra Par 7T3 DMX Programme Charts 6 channel mode DMX chart continued..
-
Page 9: Button Functions
Spectra Par 7T3 I.R Remote Functions (LEDJ90A) Button functions: The “BLACKOUT” button is used to set the LED’s into the power on or off modes. The “AR” button is used to set the LED’s into the auto run mode. The “S PR” button is used to set the LED’s to run the built-in programmes Built-in programme selection: 7 colour selection, colour changing and colour fade. - Page 10 DATA Cable (DMX cable) requirements (for DMX operation): • The Spectra Par 7T3 can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output.
-
Page 11: Power Linking
PAT test or equivalent electrical safety test. Power linking: • The Spectra Par 7T3 supports power linking. You can link up to 8 products at 120 VAC or 16 at 240 VAC. •This product supplied with a fixed power input cord. This product is not suppled with a power link... -
Page 12: Troubleshooting
Spectra Par 7T3 Trouble Shooting Problem Probable cause Solution Check that the power is switched No power to the fixture. on and cables are connected. One or more fixtures are completely dead. Contact your Prolight dealer. Internal fuse has blown. - Page 13 Spectra Par 7T3 Trouble Shooting Problem Probable cause Solution Contact a technician for servicing Fixture black out suddenly The fixture is resetting the effect. if the problem persists. Allow the fixture to cool down. Fixture is too hot. Make sure that all air vents are not blocked.
- Page 14 Spectra Par 7T3 Notes Notes:...
- Page 15 Spectra Par 7T3 Notes Notes:...
