Summary of Contents for Ledj Mini Pix 9 Panel

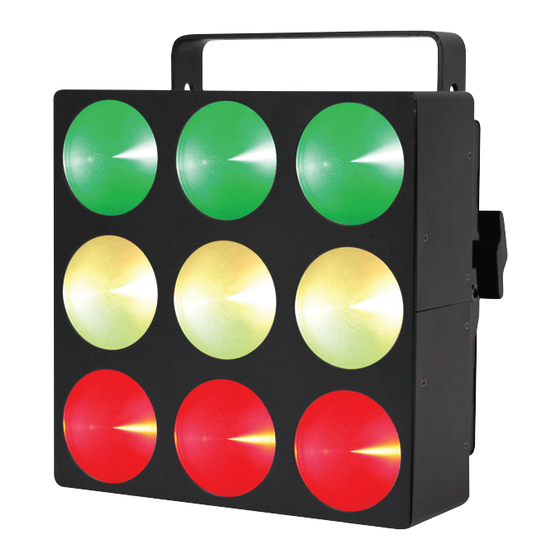

- Page 1 Mini Pix 9 Panel (9 x 9W tri-colour COB LEDs) User Manual Order code: LEDJ261...
-
Page 2: Safety Advice
• If your product fails to function correctly, stop use • Do not expose to flammable sources, liquids or gases. immediately. Pack the unit securely (preferably in the original packing material), and return it to your Pro Light • Always disconnect the power from the mains when dealer for service. equipment is not in use or before cleaning! Only handle the power-cable by the plug. Never pull out the plug by • Only use fuses of same type and rating. pulling the power-cable. • Repairs, servicing and power connection must only be • Make sure that the available voltage is between carried out by a qualified technician. THIS UNIT CONTAINS 100~240V, 50/60Hz. NO USER SERVICEABLE PARTS. • Make sure that the power cable is never crimped or • WARRANTY: One year from date of purchase. damaged. Check the equipment and the power cable periodically. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Mini Pix 9 Panel User Manual... - Page 3 • Static colour, colour mix, colour change, colour fade, built-in programs, auto, sound active and master/slave modes • Remote device management (RDM) • Bracket allows for multiple rigging applications • 4 push button menu with LED display • 3-Pin XLR in/out sockets • IEC power in/out sockets • Fan cooled Specifications Mini Pix 9 Panel 25° - Lux 3370 1011 Power consumption 116W Power supply 100~240V, 50/60Hz Fuse 1A 250V (2A 125V) 25° Dimensions 300 x 259 x 169mm Weight 4.8kg Order code LEDJ261 259mm 169mm www.prolight.co.uk Mini Pix 9 Panel User Manual...
-
Page 4: Technical Specifications
DMX IN DMX OUT www.prolight.co.uk POWER IN POWER OUT 01 - Bracket 05 - LED display 09 - IEC power in socket In the box: 1 x fixture, 02 - Bracket tightening knobs 06 - Function buttons 10 - IEC power out socket 1 x power cable & 03 - Earth point 07 - DMX input socket 11 - Fuse 1A 250V (2A 125V) 1 x user manual 04 - Safety eye 08 - DMX output socket 12 - Mic www.prolight.co.uk Mini Pix 9 Panel User Manual... -
Page 5: Dmx Channel Mode
64-71 RGB 72-79 Colour 1 80-87 Colour 2 88-95 Colour 3 96-103 Colour 4 104-111 Colour 5 112-119 Colour 6 Master dimmer 120-127 Colour 7 (Active when Flash (0-255) CH1 value is Slow to fast 128-135 Colour 8 0-255) 136-143 DREAM 144-151 METEOR 152-159 FADE 160-167 CHANGE 168-175 FLOW1 176-183 FLOW2 Speed (0-255) 184-191 FLOW3 Slow to fast (Active when CH1 192-199 FLOW4 value is 136-255) 200-207 FLOW5 208-215 FLOW6 216-223 FLOW7 224-231 FLOW8 232-239 FLOW9 240-255 SOUND www.prolight.co.uk Mini Pix 9 Panel User Manual... - Page 6 CH13 CH14 CH15 CH16 CH17 CH18 (0-255) (0-255) (0-255) (0-255) (0-255) (0-255) (0-255) (0-255) (0-255) CH19 CH20 CH21 CH22 CH23 CH24 CH25 CH26 CH27 (0-255) (0-255) (0-255) (0-255) (0-255) (0-255) (0-255) (0-255) (0-255) www.prolight.co.uk Mini Pix 9 Panel User Manual...
- Page 7 80-87 Colour 2 88-95 Colour 3 96-103 Colour 4 104-111 Colour 5 112-119 Colour 6 120-127 Colour 7 Flash (0-255) 128-135 Colour 8 R (0-255) G (0-255) B (0-255) Slow to fast 136-143 DREAM 144-151 METEOR 152-159 FADE 160-167 CHANGE 168-175 FLOW1 Speed (0-255) 176-183 FLOW2 Slow to fast 184-191 FLOW3 (Active when CH1 192-199 FLOW4 value is 136-239) 200-207 FLOW5 208-215 FLOW6 216-223 FLOW7 224-231 FLOW8 232-239 FLOW9 Sensitivity (0-255) 240-255 SOUND (Active when CH1 sound value is 240-255) www.prolight.co.uk Mini Pix 9 Panel User Manual...
-
Page 8: Master/Slave Mode
Note: In this mode, it will run 14 built-in programs in a continuous loop. Built-in programs mode To access the built-in programs mode, press the “MODE” button on the rear of the unit to show “01.STATIC” on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to select between the 14 built-in programs. Now press the “ENTER” button to select the desired speed and adjust by using the and “DOWN” buttons. Speed values: 01 - 99 (00 = slow, 99 = fast) Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MODE” button. See next page for built-in programs chart. www.prolight.co.uk Mini Pix 9 Panel User Manual... -
Page 9: Invert Mode
Dimming curve: To access the dimming curve mode, press the “MODE” button on the rear of the unit to show “DIMMER CURVE” on the LCD display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to select between the 2 dimming curves. 01 = Halogen emulation mode with a very smooth slow dimming and a small delay. 02 = LED response with faster dimming and no delay. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MODE” button. www.prolight.co.uk Mini Pix 9 Panel User Manual... -
Page 10: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Mini Pix 9 Panel User Manual... -
Page 11: Line Termination
3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Mini Pix 9 Panel User Manual... -
Page 12: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Mini Pix 9 Panel User Manual...
