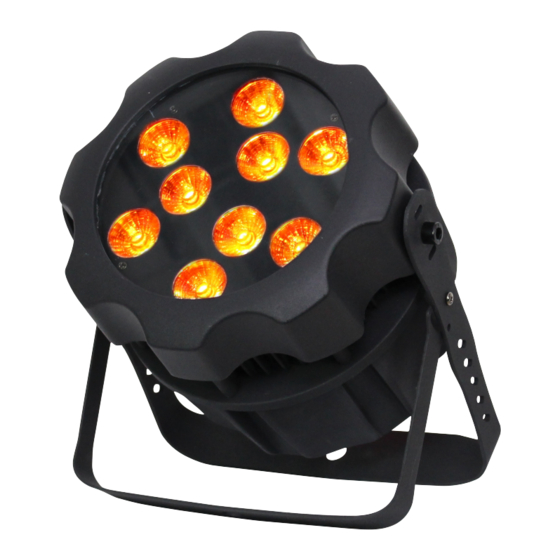

- Page 1 HEX Par 9 Exterior Fixture User Manual Order code: LEDJ226...
-
Page 2: Safety Advice
• Do not expose to flammable sources, liquids or gases. • If your product fails to function correctly, stop use • Always disconnect the power from the mains when immediately. Pack the unit securely (preferably in the equipment is not in use or before cleaning! Only handle original packing material), and return it to your Pro Light the power-cable by the plug. Never pull out the plug by dealer for service. pulling the power-cable. • Only use fuses of same type and rating. • Make sure that the available voltage is between • Repairs, servicing and power connection must only be 100~240V, 50/60Hz. carried out by a qualified technician. THIS UNIT CONTAINS • Make sure that the power cable is never crimped or NO USER SERVICEABLE PARTS. damaged. Check the equipment and the power cable • WARRANTY: One year from date of purchase. periodically. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. HEX Par 9 User Manual www.prolight.co.uk... - Page 3 Product overview & technical specifications HEX Par 9 Exterior Fixture IP65 The exterior HEX Par 9 features 9 x 12W six-colour LEDs, giving smooth colour mixing from rich saturated hues to subtle pastel shades, controlled via a 4 push button LED menu which allows for easy access to the modes including DMX, auto and master/slave. This fixture can be used for interior and exterior applications (IP65 rated) making it suitable for both architectural and stage lighting. • 9 x 12W six-colour LEDs (RGBWAUV) • Beam angle: 25° • 4kHz refresh rate • DMX channels: 2/3/4/5/6 or 9 selectable • Auto and master/slave modes • 0 - 100% dimming and variable strobe • 4 push button menu with LED display • IP rated power in/out sockets • IP rated 3-Pin DMX in/out sockets Specifications HEX Par 9 Power consumption 115W Power supply 100~240V, 50/60Hz Dimensions 235 x 230 x 205mm Weight 4.8kg Order code LEDJ280 25°...
- Page 4 Channel Value Function 000-255 Dimmer (0-100%) Channel Value Function 000-255 Strobe (slow to fast) 000-255 Red (0-100%) 000-255 Red (0-100%) 000-255 Green (0-100%) 000-255 Green (0-100%) 000-255 Blue (0-100%) 000-255 Blue (0-100%) 000-255 White (0-100%) 000-255 White (0-100%) 000-255 Amber (0-100%) 000-255 UV (0-100%) 000-004 No function 005-255 Fading & effect mode HEX Par 9 User Manual www.prolight.co.uk...
- Page 5 LED display OFF ENTER d 1 S P MENU ENTER d S 1 P LED display invertion MENU t e S t Auto test ENTER ENTER h o u r 9 9 9 9 Life time HEX Par 9 User Manual www.prolight.co.uk...
- Page 6 JuNP Sp00 (colour change) press “ENTER” and the display will show , press “ENTER” again and use the “UP” and “DOWN” buttons to select the desired colour change speed SP00-SP99 and then press “ENTER” to confirm your selection. You can now set the dimmer by pressing the “UP” button followed by the “ENTER” button, now use the “UP” and “DOWN” buttons to select the desired brightness d000 d255 and then press “ENTER” to confirm your selection. F@de Sp00 (colour fade) press “ENTER” and the display will show , press “ENTER” again and SP00 SP99 use the “UP” and “DOWN” buttons to select the desired colour fade speed and then press “ENTER” to confirm your selection. You can now set the dimmer by pressing the “UP” button followed by the “ENTER” button, now use the “UP” and “DOWN” buttons to select the desired brightness d000 d255 and then press “ENTER” to confirm your selection. RGB colour mixing: To access the colour mixing mode, press the “MODE” button until the display shows baLa and press Gree the “ENTER” button. Use the “UP” and “DOWN” buttons to select the desired colour bLue and then press “ENTER” to confirm your selection. Use the “UP” and “DOWN” buttons to select the colour level then press “ENTER” to confirm your selection. HEX Par 9 User Manual www.prolight.co.uk...
- Page 7 Operating instructions Display On/Off: To access the LED display on/off mode, press the “MODE” button until the display shows and press the “ENTER” button. Use the “UP” and “DOWN” buttons to select or and then press “ENTER” to confirm your selection. Display inversion On/Off: To access the LED display inversion mode, press the “MODE” button until the display shows dISP and press the “ENTER” button. Use the “ENTER” button to select the inversion on or off and press “ENTER” to confirm your selection. Self test: test To access the self test mode, press the “MODE” button until the display shows and press the “ENTER” button. The fixture will now run an auto test on all the LEDs and colours. Fixture hours: hour To access the fixture hours mode, press the “MODE” button until the display shows and press the “ENTER” button. The fixture will now show the total operating hours. HEX Par 9 User Manual www.prolight.co.uk...
-
Page 8: Dmx Setup
DMX cable DMX cable DMX cable DMX cable Order code: LEDJ91 Order code: LEDJ141 Order code: LEDJ142 Order code: LEDJ143 Order code: LEDJ144 Also remember LEDJ 1m Exterior LEDJ 2m Exterior LEDJ 5m Exterior LEDJ 10m Exterior Power cable Power cable Power cable Power cable that DMX cable must be daisy chained and cannot be split. Order code: LEDJ146 Order code: LEDJ147 Order code: LEDJ148 Order code: LEDJ149 HEX Par 9 User Manual www.prolight.co.uk... - Page 9 5-pin XLR (socket) 3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C HEX Par 9 User Manual www.prolight.co.uk...
-
Page 10: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. HEX Par 9 User Manual www.prolight.co.uk... - Page 11 HEX Par 9 User Manual www.prolight.co.uk...
