Summary of Contents for Ledj ECO LED Par 56

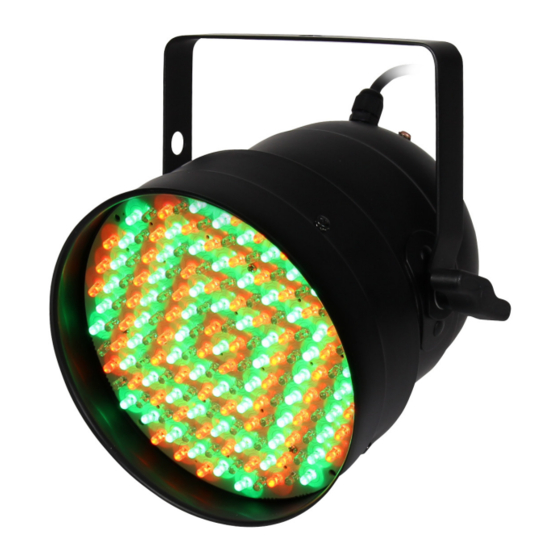

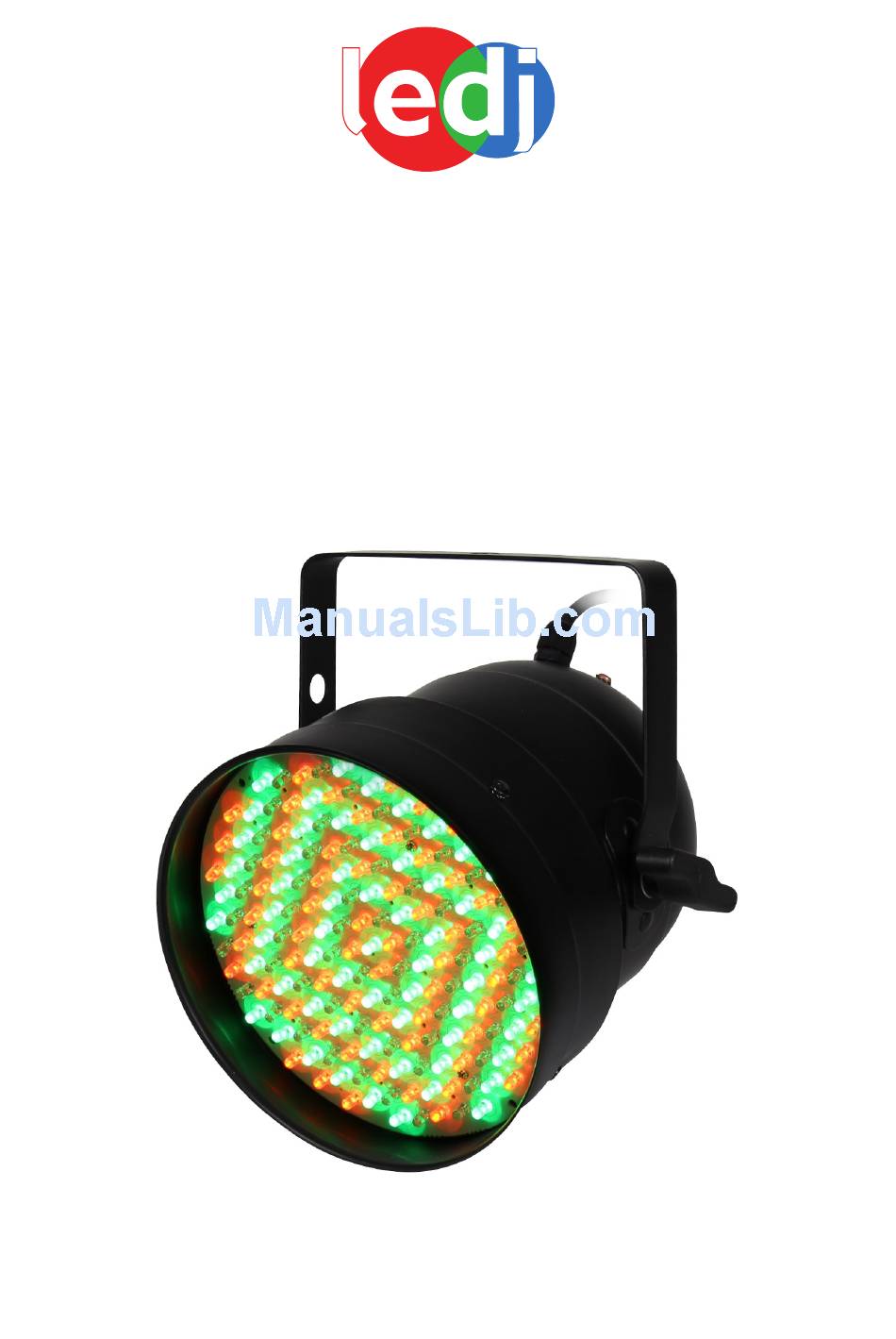

- Page 1 ECO LED Par 56 User Manual...
-
Page 2: Safety Advice
• If your product fails to function correctly, stop use • Do not expose to flammable sources, liquids or gases. immediately. Pack the unit securely (preferably in the original packing material), and return it to your Pro Light • Always disconnect the power from the mains when dealer for service. equipment is not in use or before cleaning! Only handle the power-cable by the plug. Never pull out the plug by • Only use fuses of same type and rating. pulling the power-cable. • Repairs, servicing and power connection must only be • Make sure that the available voltage is between carried out by a qualified technician. THIS UNIT CONTAINS 100~240V, 50/60Hz. NO USER SERVICEABLE PARTS. • Make sure that the power cable is never crimped or • WARRANTY: One year from date of purchase. damaged. Check the equipment and the power cable periodically. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk ECO LED Par 56 User Manual... - Page 3 PUSH DMX OUT DMX IN ECO LED PAR 56 STATUS INDICATOR 240mm www.prolight.co.uk 120~240V, 50/60Hz 01 - Captive power connection 02 - DMX out 03 - DMX in 04 - Status indicator In the box: 1 x fixture, 05 - Dipswitches hanging bracket & 06 - Sound sensitivity 1 x user manual adjustment knob www.prolight.co.uk ECO LED Par 56 User Manual...
-
Page 4: Master/Slave Mode
Red (0: low brightness, 255: high brightness) 0-255 Green (0: low brightness, 255: high brightness) 0-255 Blue (0: low brightness, 255: high brightness) Sound active mode: To access this mode plug the fixture in and put dipswitch #10 in the “ON” position. The fixture will now react to sound. To exit this mode put the dipswitch in the “OFF” position. Auto mode: To access this mode plug the fixture in and put dipswitch #9 and 10 in the “ON” position. The fixture will now chase through the colours. To adjust the speed put the dipswitches #1 to 7 in the “ON” position (1 being the slowest, 7 being the fastest). To exit this mode put the dipswitches in the “OFF” position. RGB mode: To access this mode plug the fixture in and put dipswitch #8, 9 and 10 in the “ON” position. Dipswitch #1 placed in the “ON” position will project red at 25% intensity, whilst dipswitch #2 will project at 50% intensity. Combining both dipswitches #1 and 2 will project red at 100% intensity. Dipswitch #3 placed in the “ON” position will project green at 25% intensity, whilst dipswitch #4 will project at 50% intensity. Combining both dipswitches #3 and 4 will project green at 100% intensity. Dipswitch #5 placed in the “ON” position will project blue at 25% intensity, whilst dipswitch #7 will project at 50% intensity. Combining both dipswitches #5 and 6 will project blue at 100% intensity. To exit this mode put the dipswitches in the “OFF” position. Master/slave mode: For master/slave operation, set the first fixture (master) into sound, auto or RGB mode. Now set the remaining fixtures into slave mode by setting dipswitch 1 to the “ON” position and all other dipswitches to the “OFF” position. To exit this mode put the dipswitches in the “OFF” position. www.prolight.co.uk ECO LED Par 56 User Manual... -
Page 5: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Note: DMX cable must be daisy chained and cannot be split. www.prolight.co.uk ECO LED Par 56 User Manual... -
Page 6: Line Termination
3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk ECO LED Par 56 User Manual... -
Page 7: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk ECO LED Par 56 User Manual... - Page 8 www.prolight.co.uk ECO LED 56 Can User Manual...
