Secure the hard drive suspension plate to the system board with the five
screws removed in Step 24.
38
Connect the hard drive, power, and LED cables to the system board, then
connect the speaker and headphone/microphone jack cable to the audio
card using the notes you made in Step 23.

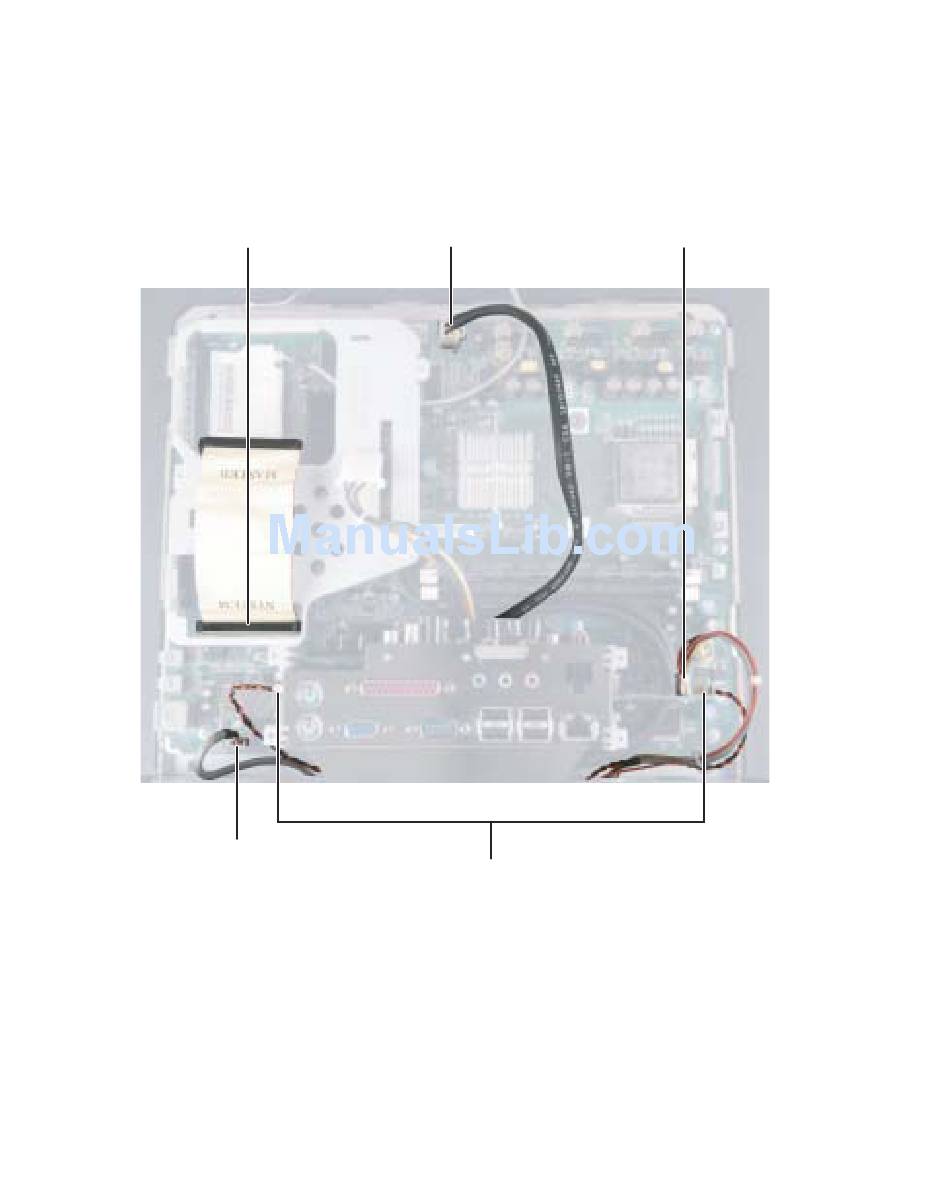

Hard drive cable
LED cable
Power cable
Headphone/Microphone jack cable
Speaker cables
www.gateway.com
Replacing the system board
