Page 1: Quick Installation Guide
NeoGate TA FXS Gateway Quick Installation Guide NeoGate TA FXS Gateway Quick Installation Guide Version: V1.0 Yeastar Technology Co., Ltd. Date: June 9 , 2014 http://www.yeastar.com 1/12... -
Page 2: Table Of Contents
NeoGate TA FXS Gateway Quick Installation Guide Contents 1. Preparation before Installation ............ 3 2. Hardware Specifications ............4 2.1 Overview ................................4 2.2 LED Indicators and Ports ............................. 5 2.3 Specifications and Operating Environment ......................7 3. NeoGate TA Series Installation ............ 8 3.1 Placement Instructions ............................ -
Page 3: Preparation Before Installation

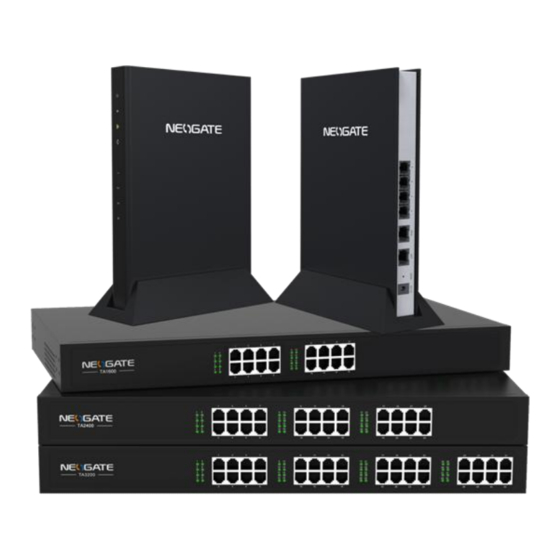

NeoGate TA FXS Gateway Quick Installation Guide About NeoGate TA Series Analog VoIP Gateway NeoGate TA Analog VoIP Gateways are cutting-edge products that connect legacy telephones, fax machines and PBX systems with IP telephony networks and IP-based PBX systems. Featuring rich functionalities and easy configuration, NeoGate TA is ideal for small and medium enterprises that wish to integrate a traditional phone system into IP-based system. -
Page 4: Hardware Specifications
NeoGate TA FXS Gateway Quick Installation Guide 2. Hardware Specifications 2.1 Overview -1 NeoGate TA FXS Gateways gure 2 http://www.yeastar.com 4/12... -
Page 5: Led Indicators And Ports
NeoGate TA FXS Gateway Quick Installation Guide 2.2 LED Indicators and Ports The LED indicators and ports of NeoGate TA Series are straightforward. Take the front panel and rear panel of NeoGate TA800 and NeoGate TA3200 as examples. Front Panels... -
Page 6: Rear Panels
NeoGate TA FXS Gateway Quick Installation Guide Rear Panels LAN Port Power Inlet FXS Ports RESET WAN Port (reserved) Figure 2-4 NeoGate TA800 Rear Panel LAN Port Power Inlet POWER RESET RJ21 FXS Ports Protective Earth CONSOLE Power Switch Figure 2-5 NeoGate TA3200 Rear Panel http://www.yeastar.com... -
Page 7: Specifications And Operating Environment
NeoGate TA FXS Gateway Quick Installation Guide Indication Status Description The power is switched on. POWER Power status The power is switched off. Blinking NeoGate is running properly. NeoGate status Not Blinking/Off NeoGate goes wrong. Solid green: the port is idle. -
Page 8: Neogate Ta Series Installation
If the LAN port is connected to PC directly (not via a switch), please use cross-over cable. 3.2.2 Connection of FXS Ports NeoGate TA FXS Gateways are available with 5 models, supporting up to 32 FXS ports. RJ11 Phone Port Connect one end of a RJ11 phone cable to the port. -
Page 9: Power Connection
NeoGate TA FXS Gateway Quick Installation Guide 3.2.3 Power Connection Connect the power adapter to the Gateway’s power port, and then plug the power adapter into an electrical outlet. Press the On switch to power on the Gateway. The gateway will start booting. In the meantime, users would see that the “POWER”... -
Page 10: Neogate Ta Series Basic Configurations
Web interface. NeoGate TA FXS Gateway uses DHCP to pick up an IP address. Use an analog phone connected to the FXS port of the Gateway, press *** to get into the IVR menu. Enter 1 to obtain the Gateway’s IP address. -
Page 11: Network Settings
NeoGate TA FXS Gateway Quick Installation Guide Enter the Admin User Name and Password to log in. Figure 4-2 NeoGate Admin Configuration Interface Via the configuration interface, the admin can make all the system configurations, including network settings (LAN, WAN, Firewall, VPN, DDNS, VLAN, etc.); system parameters configuration (time zone, password, etc.);... -
Page 12: Reset To Factory Defaults
NeoGate TA FXS Gateway Quick Installation Guide 2. Outbound and inbound calls Users should be able to make and receive external calls after configuring FXS ports, VoIP Trunk, and dial pattern. Please refer to Administrator’s Guide for details. 4.5 Reset to Factory Defaults To reset to factory defaults, you could follow the below instruction: Press the “RESET”...
