Yeastar Technology NeoGate TG Series Installation Manual
Hide thumbs
Also See for NeoGate TG Series:
- Installation manual (14 pages) ,
- User manual (62 pages) ,
- User manual (104 pages)
Related Manuals for Yeastar Technology NeoGate TG Series
Summary of Contents for Yeastar Technology NeoGate TG Series

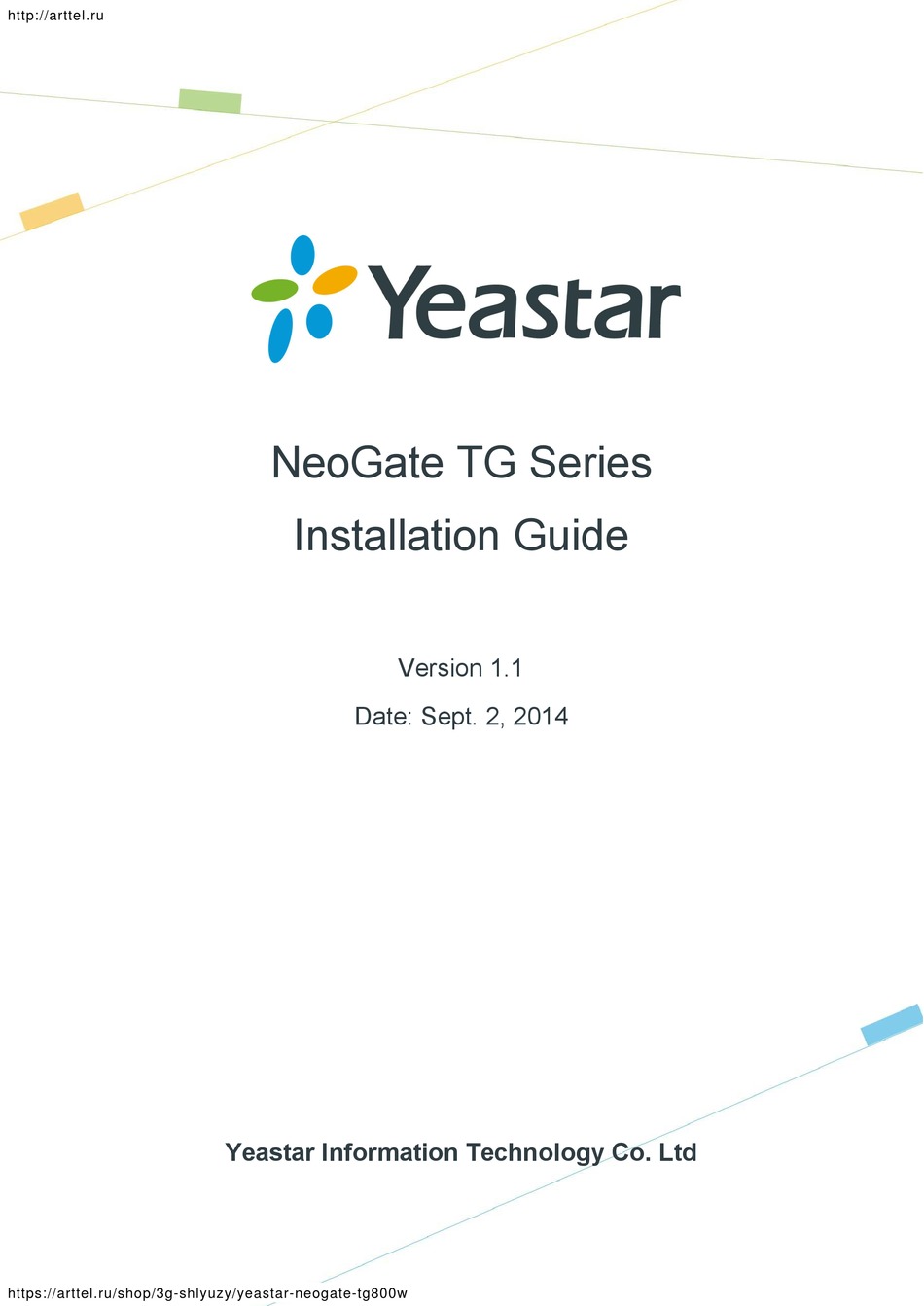

- Page 1 http://arttel.ru NeoGate 7* 6HULHV ,QVWDOODWLRQ *XLGH Version 1.1 Date: Sept. 2, 2014 Yeastar Information Technology Co. Ltd https://arttel.ru/shop/3g-shlyuzy/yeastar-neogate-tg800w...
-
Page 2: Table Of Contents
3.2.2 Connection of GSM ports ................... 11 3.2.3 Power Connection ....................12 3.2.4 Indicators Status ....................12 4. NeoGate TG Series Basic Configurations ..................13 4.1 Factory Defaults ................13 4.2 Logging in the Web Configuration Panel ..........13 4.3 Network Settings ................14 4.4 Make and Receive calls .............. - Page 3 About NeoGate TG Series VoIP GSM Gateway NeoGate TG Series is a series of VoIP GSM gateway connecting GSM Network to VoIP Network directly, which can support two-way communication: GSM to VoIP or VoIP to GSM. It is the best solution ever to connect IP-based telephone systems, softswitches, and IP-PBXs to GSM network;...
-
Page 4: Preparation Before Installation
NeoGate TG Series Installation Guide 1. Preparation before Installation Please make sure the following devices are available before installation: Contents of the box Upon receiving NeoGate gift box, please open the package and check if all the items are supplied... - Page 5 NeoGate TG Series Installation Guide Grounding stud and nut Pair Rubber feet Sheet 3 NeoGate TG400 Packing List Item Unit Description NeoGate TG800 NeoGate TG800 main box Power cord For the input of power Warranty card With Series Number printed for Repair &...
-
Page 6: Hardware Specifications

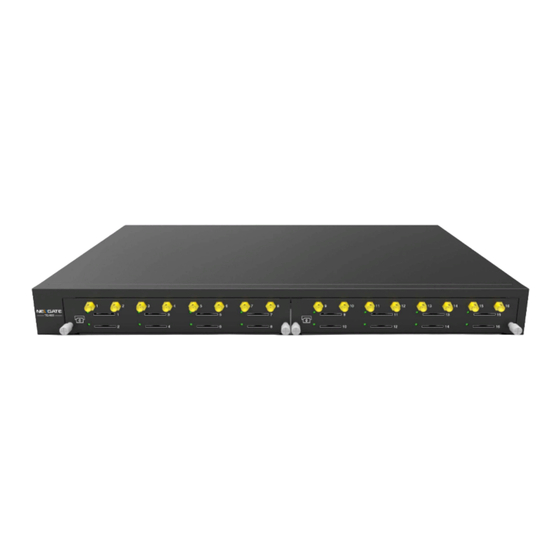

NeoGate TG Series Installation Guide 2. Hardware Specifications 2.1 Overview Figure 2-1 NeoGate TG Series Figure 2-2 NeoGate TG1600 6/16 https://arttel.ru/shop/3g-shlyuzy/yeastar-neogate-tg800w... -
Page 7: Led Indicators And Ports
NeoGate TG Series Installation Guide 2.2 LED Indicators and Ports The LED indicators and ports of NeoGate TG Series are straightforward. Take the front panel and rear panel of NeoGate TG400 and TG1600 as an example. POWER PORT STATUS... - Page 8 NeoGate TG Series Installation Guide ANTENNA SIM CARD SLOT GSM PORT STATUS Figure 2-5 NeoGate TG1600 Front Panel POWER POWER INLET RESET POWER SWITCH CONSOLE PROTECTIV Figure 2-6 NeoGate TG1600 Rear Panel Indication Status Description Power Power status The power is switched on.
-
Page 9: Specifications And Operating Environment
Antenna ports For the connection of GSM Antennas. Ethernet ports NeoGate TG Series provides 1 10/100 adaptive RJ45 Ethernet ports, marked as LAN. -LAN port: LAN port is for the connection to Local Area Network (LAN). Reset button Press the reset button to restore the factory defaults. - Page 10 NeoGate TG Series Installation Guide Size (L×W×H) 440x280x44 (mm) Power Supply 100-240V 50/60Hz Operating Temperature 0°C–40°C (32°F–104°F) Storage Temperature -20°C–65°C (-4°F–149°F) Humidity 10%–90% Non-condensing) 10/16 https://arttel.ru/shop/3g-shlyuzy/yeastar-neogate-tg800w...
-
Page 11: Neogate Tg Series Installation
If the LAN port is connected to PC directly (not via a switch), please use cross-over cable. 3.2.2 Connection of GSM ports NeoGate TG Series, available with four models, supports 1, 2, 4, 8, 16 GSM ports. To use the GSM ports, you need to insert the SIM card and connect the antenna. -
Page 12: Power Connection
NeoGate TG Series Installation Guide Connect the antenna. Connect the antenna to the relevant place. Insert SIM cards. Push the SIM card into the card slot on the front panel. 3.2.3 Power Connection Once users have made sure that device installation, cable connection and power type are correct, please switch on the power. -
Page 13: Neogate Tg Series Basic Configurations
NeoGate TG Series Installation Guide 4. NeoGate TG Series Basic Configurations 4.1 Factory Defaults NeoGate TG Series provides web-based configuration interface for administrator and account user. The user can manage the device by logging in the Web interface. The factory default IP address: LAN: 192.168.5.150;... -
Page 14: Network Settings
NeoGate TG Series Installation Guide Figure 4-2 NeoGate Admin Configuration Interface Via the configuration interface, the admin can make all the system configurations, including network settings (LAN, Firewall, VPN, DDNS, VLAN, etc.); system parameters configuration (time zone, password, etc.); internal settings (Web access port, etc.); route lists; module lists; call logs (search, download);... -
Page 15: Make And Receive Calls
NeoGate TG Series Installation Guide 4.4 Make and Receive calls NeoGate TG Series supports SIP Peer mode. Users should be able to make and receive calls after configuring VoIP trunking, and Mobile to IP or IP to Mobile routes. Please refer to Administrator’s Guide for details. - Page 16 NeoGate TG Series Installation Guide 16/16 https://arttel.ru/shop/3g-shlyuzy/yeastar-neogate-tg800w...
