    TG200 User Manual Version 5.10.0.87 Yeastar Technology Co., Ltd...

  • Page 2: Table Of Contents

    NeoGate User Manual Table of Contents 1. Introduction .................... 3 1.1 Features .................... 3 1.2 Hardware Specification ................ 3 1.2.1 Exterior Appearance ..............3 2. System set up ..................6 2.1 SIM Card Placement ................6 2.2 Antenna Connection ................6 2.3 Ethernet Line Connection ..............

  • Page 3: Introduction

    NeoGate User Manual 1. Introduction NeoGate-GSM Gateway for Maximum Efficiency & Cost Savings NeoGate is a device for connecting GSM Network to VoIP Network directly, which can support two-way communication: GSM to VoIP or VoIP to GSM. It is the best solution ever to connect IP-based telephone systems, soft switches, and IP-PBXs to GSM network.

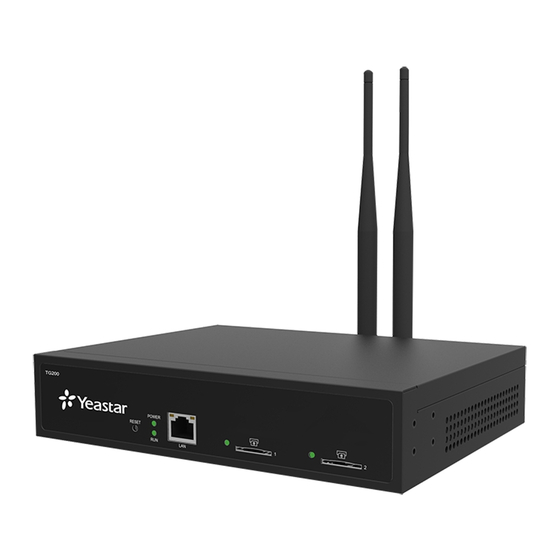

  • Page 4 NeoGate User Manual ① ② ③ ④ ⑤ ⑥ ⑦ Figure 1-1 NeoGate Front Panel Picture Identifying ①Power Green shining: Connected, correct function. Green flashing: Device error. No light: Disconnected, malfunction. Green Light：Indicates the server system is in working order ②RUN ③Ready Green Light：Indicates the system is ready.
  • Page 5 NeoGate User Manual Light：stands for GSM port ⑦ LED – Green (fast blink): GSM port is in talking. 2) Back Side Figure 1-2 NeoGate Back Side Picture www.yeastar.com...

  • Page 6: System Set Up

    NeoGate User Manual 2. System set up 2.1 SIM Card Placement Lift off the SIM card holder on the backside, insert the SIM card and replace the holder, securing the latch. Note1: Remember to set call forwarding, call barring, preferential network(s), SMS centre and similar provider and SIM card services in your mobile phone before inserting the SIM card in NeoGate.
  • Page 7 NeoGate User Manual 1. Connect the small end of the power cable to the power input port on the NeoGate back panel, and plug the other end of the cable into a 100VAC power outlet. 2. Check the Power LED on the front panel. A solid green LED indicates that power is being supplied correctly.

  • Page 8: Neogate Configuration

    NeoGate User Manual 3. NeoGate Configuration 3.1 Manager Login From your web browser, input the IP address of the NeoGate server. If this is the first time you are configuring NeoGate, please use the default settings below: IP Address: http://192.168.5.150 Username: admin Password:...

  • Page 9: Gsm Settings

    NeoGate User Manual 3.2 GSM Settings 3.2.1 Module List Figure 3-2 NeoGate Status Description: Status Idle: The port is idle. Busy: The port is in use. Error: The port has not inserted the SIM Card. Signal : No signal. : Poor. : Average.

  • Page 10: Gsm Settings

    NeoGate User Manual 3.2.2 GSM Settings Figure 3-3 Trunk Name: A name of this Trunk. Ex: 'GSM1' etc. Max. Call Duration (min)/Per Month: Defines the maximum call duration within a month through this SIM card. (0 it means unlimited) Clear Stat: Set the day in a month, in this day system will automate reset the SIM card’s Max Call Duration to 0 min, (if selected 0, it means disable this functions) Volume Setting: Define the volume of this GSM Trunk.
  • Page 11 NeoGate User Manual 3.3.1.1 SIP Account It is an SIP Account that allows an IP Phone, IP Soft- Phone client, IPPBX and soft switch to register on NeoGate. ·Extension The numbered extension, i.e. 1234, that will be associated with this particular User / Phone.
  • Page 12 NeoGate User Manual Username of SIP account. Used for SIP trunk registration. ·Password Password of SIP account. .Authorization name Used for SIP authentication. Leave this blank if not required. .Online number Define the online number that expected by ‘Skype Connect’ and some other SIP service providers.

  • Page 13: Advanced Settings

    NeoGate User Manual Figure 3-7 3.3.2 Advanced Settings 1) General ·Transport This will be the transport method used by devices. The options are UDP (default) or TCP. ·UDP Port Port use for sip registrations, Default is 5060. ·TCP Port Port use for sip registrations, Default is 5060. ·RTP Port Start Beginning of RTP port range ·RTP Port End...
  • Page 14 NeoGate User Manual Maximum duration (in seconds) of a SIP registration. Default is 3600 seconds. ·Min Registration/Subscription Time Minimum duration (in seconds) of a SIP registration. Default is 60 seconds. ·Default Incoming/Outgoing Registration Time Default Incoming/Outgoing Registration Time: Default is 30 seconds. ·Register Attempts The number of SIP REGISTER messages to send to a SIP Registrar before giving up.
  • Page 15 NeoGate User Manual ·External Refresh Interval If an external host has been supplied, you may specify how often the system will perform a DNS query on this host. This value is specified in seconds. ·Local Network Identification Used to identify the local network using a network number/subnet mask pair when the system is behind a NAT or firewall.

  • Page 16: Route Settings

    NeoGate User Manual transmitting) of a VoIP call. a-law: A PSTN standard codec, used outside of North America, that provides very good voice quality and consumes 64kbit/s in each direction (receiving and transmitting) of a VoIP call. GSM: A wireless standard codec, used worldwide, that provides adequate voice quality and consumes 13.3kbit/s in each direction (receiving and transmitting) of a VoIP call.
  • Page 17 NeoGate User Manual Click ‘New Outbound Route’ and fill in the corresponding information in the popup window. 1）General ·Route Name Name of this Outbound Route. ex: 'Local' or 'Long Distance' etc. ·Dial Pattern Outbound calls that match this dial pattern will use this outbound route. There are a number of dial pattern characters that have special meanings: X : Any Digit from 0-9 Z : Any Digit from 1-9...

  • Page 18: Incoming Routes

    NeoGate User Manual Balance: Select the trunk last recently used. ·Time The scope of time which is allowed to make calls via this route. ·Days of week The days in a week when is allowed to make calls via this route. ·Member Trunks Define the trunks that can be used for this outbound route.
  • Page 19 NeoGate User Manual blank to match any or no CID info. You can also use a pattern match (e.g. 2[345]X) to match a range of numbers. The following patterns may be used: X : Any Digit from 0-9 Z : Any Digit from 1-9 N : Any Digit from 2-9 [12345-9] : Any digit in the brackets (in this example, 1,2,3,4,5,6,7,8,9) The ‘.’...

  • Page 20: Callback Settings

    NeoGate User Manual 3.4.3 Callback Settings NeoGate allows caller A to dial the number of the SIM card inserted in NeoGate, and after hearing the ring back tone, A can hang up the call or wait for NeoGate to cut off the call, then NeoGate will call A with this SIM card. When A pick up the call, A can dial the number he wants to call;...

  • Page 21: Blacklist

    NeoGate User Manual Figure 3-13 Test: Use mobile phone (whose number is 13405925798 which has already been added in the call back number) to call the SIM card inserted in the NeoGate. After hanging up the call, NeoGate will use SIM card to call user’s mobile phone number. You pick up the call and then you can dial the number you want to call.

  • Page 22: Sms

    NeoGate User Manual Figure 3-14 3.5 SMS 3.5.1 Send SMS Users can send the SMS in this page. Note: Please select corresponding Calling Code when sending SMS. If the Calling Code isn't available in the list, please input it before the Destination Number.

  • Page 23: Sent Sms Logs

    NeoGate User Manual Figure 3-15 3.5.2 Sent SMS Logs The Sent SMS logs capture all sent SMS details, including Account, Port, Destination, Time and Content. Note: the maximum amount of messages sent that can be saved are 500. 3.5.3 Received SMS Logs The Received SMS logs capture all received SMS details, including Port, From, Time and Content.

  • Page 24: Firewall

    NeoGate User Manual .MAX Call Duration The absolute maximum amount of time permitted for a call. A setting of 0 disables the timeout. Default value is 6000s. ·HTTP Bind Port/Web Access Port Port use for HTTP sessions. Default: 80 Figure 3-16 3.6.2 Firewall Firewalls are used to prevent unauthorized Internet users from accessing private networks connected to the Internet, especially intranets.
  • Page 25 NeoGate User Manual ·Description Simple description for this rule. eg: Accept the specific host to access the web interface for configuration. ·Protocol The protocols of this rule. ·Port Initial port should be on the left and end port should be on the right. The end port must be equal to or greater than start port.
  • Page 26 NeoGate User Manual ·Protocol Auto defense protocol, TCP or UDP. ·Rate The maximum packets or connections can be handled per unit time. E.g.: (Port: 8022 Protocol: TCP Rate: 10/minute) means maximum 10 TCP connection to port 8022 can be handled per minute, the eleventh connection will be refused directly.

  • Page 27: Network Setting

    NeoGate User Manual Enable this item, net ping from remote hosts will be dropped. ·Drop All When you enable ‘Drop All’ feature, system will drop all packets or connection from other hosts if there are no other rules defined. To avoid locking the devices, at least one ‘TCP’...

  • Page 28: Password Settings

    NeoGate User Manual traditional LAN to a group of LAN segments, given specific configurations. ·IP Address2 and Subnet Mask2 .Configure second IP Address and Mask in this text, NeoGate can use this ip address access to another network. ·VLAN Number .The VLAN Number is a unique value you assign to each VLAN on a single device.

  • Page 29: Date And Time

    NeoGate User Manual Figure 3-21 3.6.5 Date and Time Set the date and time for NeoGate. Figure 3-22 3.6.6 Backup and Restore You can backup your configure in this page. After back up, you can see the back up in the list. You can restore the configure in this page also. Note: the restore will only work after reboot.

  • Page 30: Reset And Reboot

    NeoGate User Manual Figure 3-23 3.6.7 Reset and Reboot ·Reboot System Warning: Rebooting the system will terminate all active calls! ·Reset to Factory Defaults Warning: A factory reset will erase all configuration data on the system. Please do not turn off the system until the RUN light begins blinking. Any power interruption during this time could cause damage to the system.

  • Page 31: Reports

    NeoGate User Manual update the firmware. More Information, please see http://www.yeastar.com/download/NeoGate/ Note： 1. If enabled ‘Reset configs’, System will restore to factory default settings. 2. When update the firmware, please don’t turn off the power. Figure 3-25 3.7 Reports 3.7.1 Call Logs The call Log captures all call details, including Source, Destination, Start Time, End Time, Duration, Billable Duration, Disposition, Communication Type, etc.

  • Page 32: System Info

    NeoGate User Manual Figure 3-26 3.7.2 System Info General: Information about hardware version, firmware version and system uptime. LAN: Information about hostname, MAC address, IP address, subnet mask, gateway, Primary DNS and Secondary DNS. Disk Usage: Disk usage information. Memory Usage: Memory usage information.
  • Page 33 NeoGate User Manual Figure 3-27 www.yeastar.com...

  • Page 34: Application

    NeoGate User Manual 4. Application Application 1 Figure 4-1 Application 2 Figure 4-2 <Finish> www.yeastar.com...
