User Manual
BEDIENUNGSANLEITUNG
DJ-COLOR 200
Für weiteren Gebrauch aufbewahren!
Keep this manual for future needs!
Gardez ce mode d'emploi pour des
utilisations ultérieures!
Guarde este manual para posteriores usos.
USER MANUAL
MODE D'EMPLOI
MANUAL DEL USUARIO

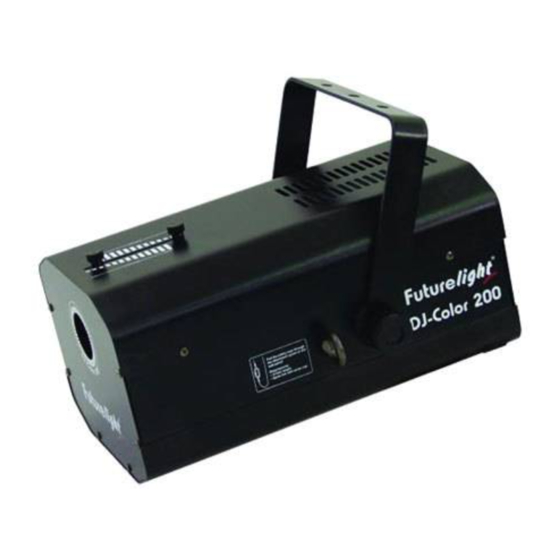

Color-changer
Pull the safety-rope through
the attachment eyelet on the
side panel!
Requirements:
• 12-fold weight
• Quick
link with screw cap
Future light
R
DJ-Color 200
Nachdruck verboten!
Reproduction prohibited!
Réproduction interdit!
Prohibida toda reproducción.
©
Copyright
Advertisement
Table of Contents
Related Manuals for Future light DJ-COLOR 200
Summary of Contents for Future light DJ-COLOR 200
-

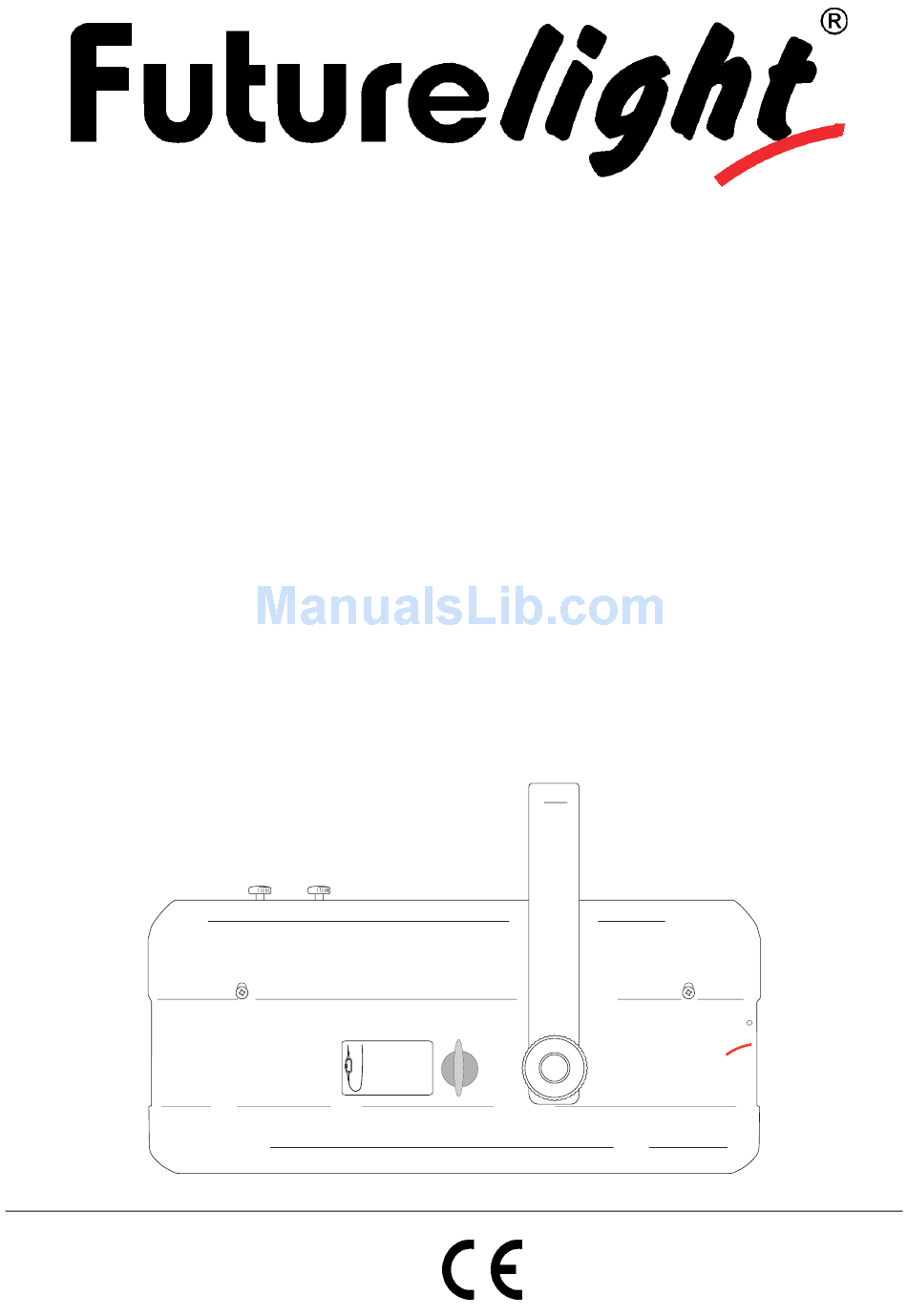

Page 1: User Manual
BEDIENUNGSANLEITUNG USER MANUAL MODE D'EMPLOI MANUAL DEL USUARIO DJ-COLOR 200 Color-changer Future light Pull the safety-rope through the attachment eyelet on the side panel! DJ-Color 200 Requirements: • 12-fold weight • Quick link with screw cap © Für weiteren Gebrauch aufbewahren! -
Page 2: Table Of Contents
MULTI-LANGUAGE-INSTRUCTIONS Inhaltsverzeichnis Table of contents Sommaire Contenido EINFÜHRUNG..............................4 SICHERHEITSHINWEISE..........................4 BESTIMMUNGSGEMÄßE VERWENDUNG..................... 5 GERÄTEBESCHREIBUNG ..........................6 Features ................................. 6 Geräteübersicht.............................. 7 INSTALLATION ..............................8 Lampeninstallation/Lampenwechsel ......................8 Lampenjustierung............................9 Überkopfmontage............................9 Anschluss an den DMX-512 Controller / Verbindung Projektor - Projektor ..........10 Anschluss ans Netz............................ - Page 3 You can find the latest update of this user manual in the Internet under: Vous pouvez trouvez la dernière version de ce mode d'emploi dans l'Internet sous: Vd. puede encontrar la versión más reciente de este manual en el Internet bajo: www.futurelight.com 3/49 51839360X18NXS_V_1_1.DOC...
-
Page 4: Introduction
- pass this manual on to every further owner or user of the product - include every supplementay update with the original manual INTRODUCTION Thank you for having chosen a FUTURELIGHT DJ-COLOR 200. You will see you have acquired a powerful and versatile device. Unpack your DJ-COLOR 200. -
Page 5: Operating Determinations
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. This device falls under protection-class I. The power plug must only be plugged into a protection class I outlet. -
Page 6: Description Of The Device
Always fix the fixture with an appropriate safety-rope. The maximum ambient temperature t = 45° C must never be exceeded. Operate the device only after having become familiar with its functions. Do not permit operation by persons not qualified for operating the device. Most damages are the result of unprofessional operation! Please use the original packaging if the device is to be transported. -
Page 7: Overview
Overview Future light Down Mode DJ-Color 200 Control Board (1) Housing screws (2) Housing cover (3) Mounting bracket (4) Fixation screw (5) Focus-screw (6) Zoom-screw (7) Control Board (8) Safety eyelet (9) Lamp system (10) DMX-Out socket (11) DMX-In socket... -
Page 8: Installation
INSTALLATION Installing/Replacing the lamp DANGER TO LIFE! Only install the lamp with the device switched off! Unplug from mains before! For the installation, you need one MSD/HSD 200 GY-9.5, MSD/HSD 250 GY-9.5 or MSD 250/2 GY-9.5 lamp. The lamp must only be changed when wearing appropriate protective clothing (protection glasses, protection gloves, helmet with sight, leather apron). -
Page 9: Lamp Adjustment
Lamp adjustment The lampholder is aligned at the factory. Due to differences between lamps, fine adjustment improve light performance. Strike the lamp, open the shutter and the iris, set the dimmer intensity onto 100 % and focus the light on a flat surface (wall). -
Page 10: Dmx-512 Connection / Connection Between Fixtures
Caution: Devices in hanging installations may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible installation, do NOT install the device! Before rigging make sure that the installation area can hold a minimum point load of 10 times the device's weight. -
Page 11: Connection With The Mains
Lighting effects must not be connected to dimming-packs. OPERATION After you connected the effect to the mains, the DJ-COLOR 200 starts running. During the Reset, the motors are trimmed and the device is ready for use afterwards. Turn the focus-screw for adjusting the focus in order to obtain a sharp projection. -
Page 12: Dmx-Protocol
If you set, for example, the address to channel 5, the DJ-COLOR 200 will use the channel 5 to 8 for control. Please, be sure that you don’t have any overlapping channels in order to control each DJ-COLOR 200 correctly and independently from any other fixture on the DMX data link. -
Page 13: Cleaning And Maintenance
213-234 Circle 3 235-255 Circle 2 Control channel 3 - Shutter, Strobe DMX-value Feature Shutter closed 1-139 Shutter opening 140-149 Reset (after 3 seconds) 150-219 Strobe-effect with increasing speed 220-229 No function (shutter open) 230-239 Random strobe-effect 240-255 Shutter open Control channel 4 - Dimmer DMX-value Feature Dimmer closed... -
Page 14: Replacing The Fuse
No. 89106015 OSRAM HSD250/2 90V/250W GY9,5 3000h 7800K No. 89106110 PHILIPS MSD250/2 90V/250W GY-9,5 2000h No. 89106115 Recommended controllers: FUTURELIGHT CP-256 controller No. 51834285 FUTURELIGHT CP-256/32 controller No. 51834286 Wizard-512 USB DMX-Software + Interface No. 51860102 Wizard-1024 DMX-Software + Interface No.
