Summary of Contents for Future light EX-4

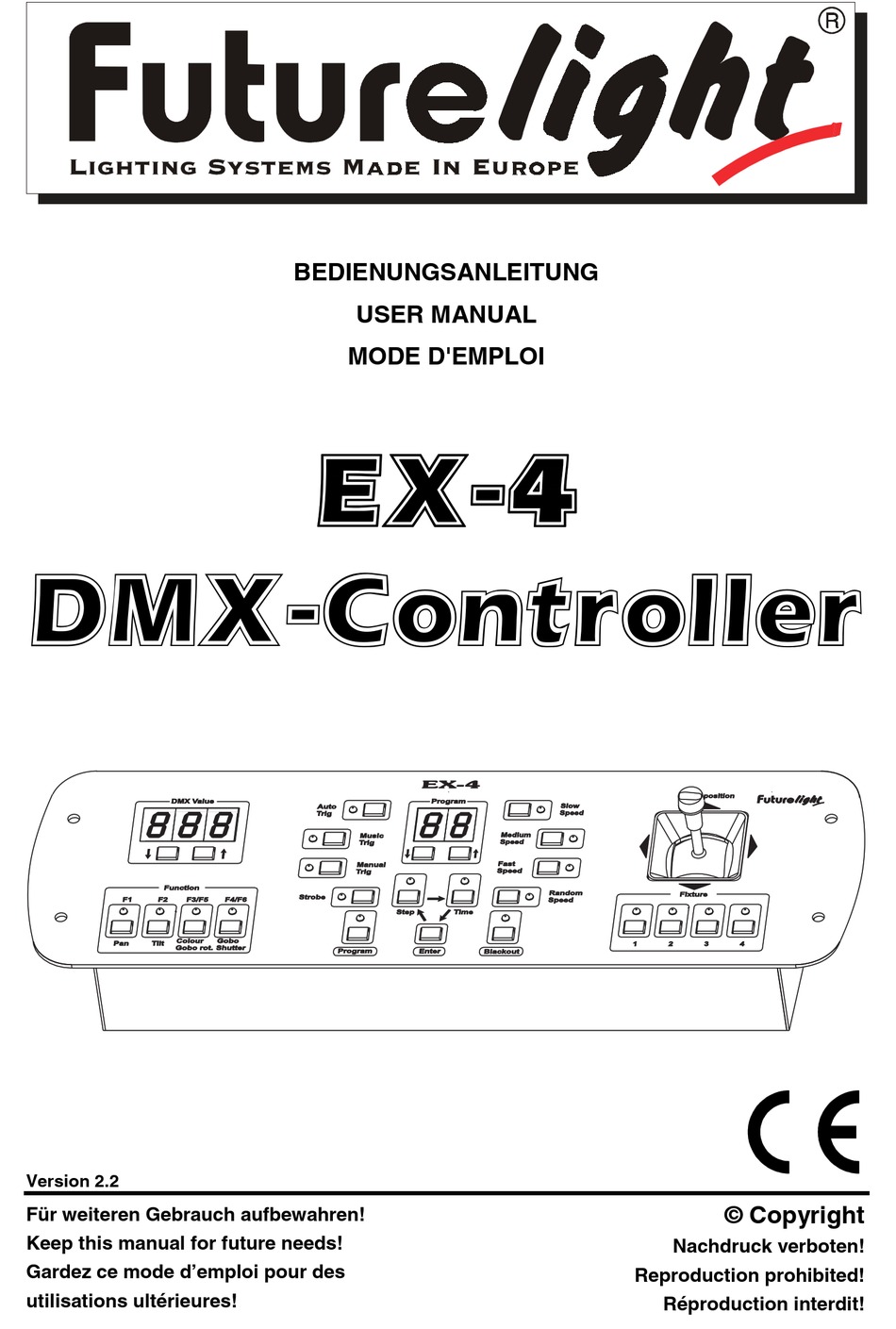

  • Page 1 BEDIENUNGSANLEITUNG USER MANUAL MODE D'EMPLOI (; '0;&RQWUROOHU Version 2.2 © Copyright Für weiteren Gebrauch aufbewahren! Keep this manual for future needs! Nachdruck verboten! Gardez ce mode d’emploi pour des Reproduction prohibited! utilisations ultérieures! Réproduction interdit!
  • Page 2 51834020 FUTURELIGHT EX-1 controller 51834035 19" installation-frame for EX-1 controller 51834036 FUTURELIGHT EX-4 controller 51834040 19" installation-frame for EX-4 controller 51834041 FUTURELIGHT CP-192 controller 51834260 FUTURELIGHT CP-256 controller 51834285 FUTURELIGHT ist eine eingetragene Marke der Steinigke Showtechnic GmbH, Deutschland. FUTURELIGHT is a registered trademark of Steinigke Showtechnic GmbH, Germany.
  • Page 3: Table Of Contents

    (;'0;&RQWUROOHU 8VHUPDQXDO Table of contents Introduction ........................13 Safety instructions ......................13 Operating determinations ....................14 Description of the device ....................14 Features ........................14 Overview........................14 Setup..........................16 Sound-control ........................16 DMX-512 connection with the projector .................16 Connection to the mains ....................17 Operation..........................17 Cleaning and maintenance .....................18 Technical specifications ....................19...
  • Page 4: Introduction

    BEFORE YOU INITIAL START - UP! Introduction Thank you for having chosen a FUTURELIGHT EX-4 controller. If you follow the instructions given in this manual, we can assure you that you will enjoy this device for many years. Unpack your FUTURELIGHT EX-4.
  • Page 5: Operating Determinations

    Operating determinations This device is a DMX-controller for controlling DMX-effects. This product is only allowed to be operated with an alternating current of 230 V, 50 Hz and was designed for indoor use only. Do not shake the device. Avoid brute force when installing or operating the device. When choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture or dust.
  • Page 6 Overview on the control elements 5) DMX VALUE UP/DOWN BUTTONS For setting DMX value. 6) DMX VALUE- DISPLAY Shows current DMX value. 7) MANUAL TRIG BUTTON With the Manual Trig -key, you can jump from one step to another. 8) MUSIC TRIG BUTTON If this LED shines the controller is in Audio-mode (operation with sound-control).
  • Page 7: Setup

    The sound-control either works via the ¼” mono jack-socket or the built-in microphone. If the EX-4 is supposed to work via a soundsignal at the Audio In-socket, connect the ¼" jack socket with the soundsignal of your headphones output or a second adjustable output (if existing) of your mixer, or with the loud-speaker output of your amplifier.
  • Page 8: Connection To The Mains

    Projector addressing Please note that the EX-1 assigns the DMX-starting addresses every 6 steps. You have to address every projector to the respective starting address. Otherwise, the channel assignment will not be correct. All projectors with the same starting address work synchronically. Projector Starting address Projector...
  • Page 9: Cleaning And Maintenance

    Activating the sound-control If the sound-control is activated, the program moves in the bass-tact of the music. Press the MUSIC TRIG button (LED shines) and the sound-control is activated. Strobe-function Via the Strobe-key, you can strobe all fixtures at the same time (You can strobe PAN or TILT position too). Manual control of fixtures If LED-diode of some FIXTURE button shines, the fixture responds to a joystick movement.
  • Page 10: Technical Specifications

    If the power supply cable of this device will be damaged, it has to be replaced by authorized dealers only in order to avoid hazards. Should you have further questions, please contact your dealer. Technical specifications Power supply: 230 V AC, 50 Hz ~ Power consumption: Number of control-channels: 24 Sound-control:...
