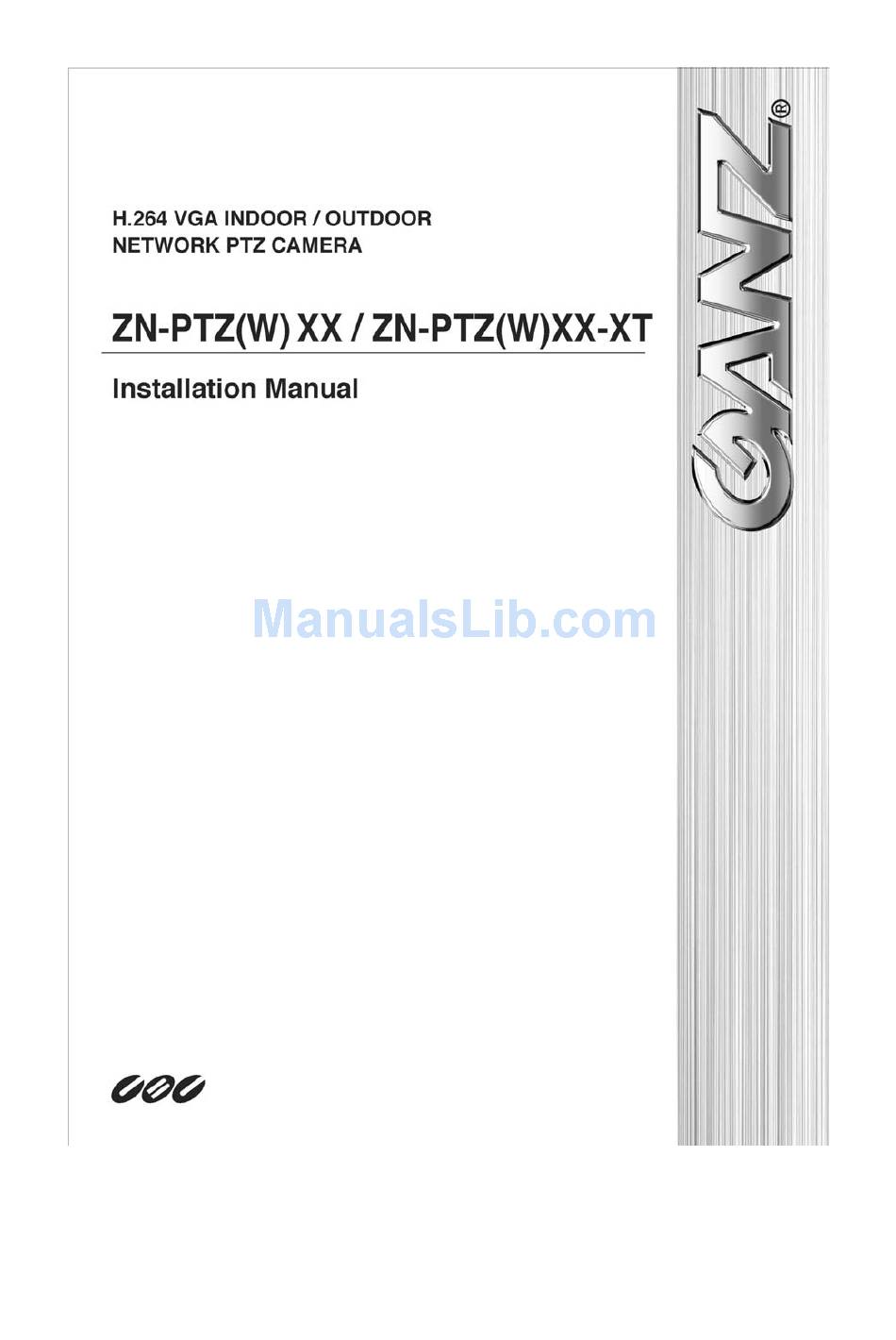

- Page 1 (ZN‐PTZxxVP‐XT is an Outdoor PTZ Camera, Adding an Outdoor Housing to Indoor PTZ ZN‐ PTZxxVP) IMPORTANT! The explanation and specification at this manual are mainly on the basis of ZN‐PTZW36VP which uses Sony 36X Optical Zoom module. ...
- Page 2 INFORMATION TO USER CAUTION RISK OF ELECTRIC SHOCK, DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SEERIVCE PERSONEL. This symbol is intended to alert the user to the presence of un‐insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating ...
-
Page 3: Table Of Contents
Table of Contents 1. FEATURES ....................... 6 2. PACKAGE CONTENTS ....................7 3. PART NAMES ......................8 4. INSTALLATION ...................... 11 4.1. Setting the Image Attribute....................12 4.2.Operating the OSD Menu....................12 5. CONNECTIONS ...................... 13 5.1.Connectors ........................13 6. CONFIGURATION ....................18 6.1.Set up network environment .................... 18 6.2.View video on web page ....................18 6.2.1. View video using IPAdmin Tool ................. -
Page 4: Features
ZN‐PTZ(W)xxVPIPE4100/IPE4500 Installation Guide 1. FEATURES Camera Indoor / Outdoor PTZ Dome IP Camera IP66 vandal proof (supported only with Outdoor Housing) Sony 1/4” Exview HAD CCD x36 Optical Zoom, x12 Digital Zoom True Day & Night (IR Cut Filter) +DSS Streaming Dual streaming mode (such as different codec/resolution/bit rate and so on.) De‐interlacing on DSP Burnt‐in text supported Unicast/Multicast supported Video/Audio Video compression: H.264/MPEG/MJPEG, 25/30FPS@D1(PAL/NTSC) Audio compression: G.711(µLaw, aLaw)/PCM Analog video out for external monitors Video Motion Detection supported Two‐way mono audio supported Network RTSP/ HTTP protocol supported 10/100 Base‐T Ethernet Additional Features ... -
Page 5: Package Contents
ZN‐PTZ(W)xxVPIPE4100/IPE4500 Installation Guide 2. PACKAGE CONTENTS Unpack carefully and handle the equipment with care. The packaging contains: Camera Ceiling Mount Bracket Ceiling Cover Screws Wrench Terminal block (2Pin, 3Pin , 5Pin ,6Pin) Safety Wire Cable Ties Quick Installation Guide The above contents are subject to change without prior notice. Note 06A.02 7 ... -
Page 6: Part Names
ZN‐PTZ(W)xxVPIPE4100/IPE4500 Installation Guide 3. PART NAMES Bubble Lock Screw Dip Switch Camera Lens Lock Holder Ceiling Mount Bracket for indoor 06A.02 8 ... - Page 7 ZN‐PTZ(W)xxVPIPE4100/IPE4500 Installation Guide ALARM ⑥ ⑤ GND 1 4 GND ④ ⑦ LINE OUT ① VIDEO MIC/ LINE IN 100 BaseT ⑨ ② RS 485 AC24V ⑧ ③ * Models herein and their appearance are subject to change without any prior notice. 06A.02 9 ...
- Page 8 ZN‐PTZ(W)xxVPIPE4100/IPE4500 Installation Guide ① LAN Connector (Ethernet) This is a RJ45 LAN connector for 10/100 Base‐T Ethernet. LED1 LED2 This LED lights up as orange and turns green when the encoder is powered on. LED operation setting: For the factory default setting, LED 2 blinks for the heartbeat and LED 1 turns on for video signal. To change its setting, refer to the section 4.5.11. LED Setting of the NVC Web Page User’s Manual. ② RS‐485 The camera supports RS‐485 Serial Communication Port. ③ 3 pin connector for power The camera needs an AC24V for power supply. Refer to the section “5.1.Connectors” for more specific information. ④ External video It is an analog video output port. ⑤ 5 pin connector for D/O The camera provides 2 channel D/O. Refer to the section “5.1.Connectors” for more specific information. ...
-
Page 9: Installation
ZN‐PTZ(W)xxVPIPE4100/IPE4500 Installation Guide 4. INSTALLATION 147.0 mm A SAFETY WIRE SCREW(Ø4.0) COVER HOLE CELING BRACKET LOCK HOLDER 1 SAFETY WIRE HOLE MOUNTING HOLE Before you install the camera, you should set the DIP switches to configure the camera ID, communication protocol. Please refer to the C ... -
Page 10: Setting The Image Attribute
ZN‐PTZ(W)xxVPIPE4100/IPE4500 Installation Guide D LOCK HOLDER.1 SCREW (M3.0) 10° LOCK HOLDER.2 F 6. Make the wires go through the square hole. 7. Insert mount holder and twist the camera counterclockwise. 8. Fix the camera by driving a screw on lock COVER holder1 and 2. 9. Install the cover by inserting cover lock and twisting clockwise. ... -
Page 11: Connections
ZN‐PTZ(W)xxVPIPE4100/IPE4500 Installation Guide 5. CONNECTIONS 5.1.Connectors IR SENSOR or DOOR SENSOR AUX 1 SIGNAL AUX 2 TERMINAL BLOCK (FEMALE) LINE OUT LAN CABLE 100 BaseT MIC/ LINE IN MONITOR RS 485 LINE OUT MIC IN RS-485 Serial Device AC24V ... - Page 12 ZN‐PTZ(W)xxVPIPE4100/IPE4500 Installation Guide Sensor (DI) connection The camera provides 4 channel D/I. It can be connected to a relay type sensor as the following figures. Relay Rating: Max 24VAC 500mA or 12VDC 1A Do not exceed the maximum relay rateing. Caution Internal Output of Sensor ‐ Relay Type Alarm (DO) connection The camera provides 2 channel D/O. Relay Rating: Max 24VAC 500mA or 12VDC 1A Do not exceed the maximum relay rating. Caution Internal Device Relay Type 06A.02 14 ...
- Page 13 ZN‐PTZ(W)xxVPIPE4100/IPE4500 Installation Guide DIP Switch Before you install the camera, you should set the DIP switches to configure the camera ID, communication protocol. Opening dome cover 2 mm UNLOCK 1 2 3 4 5 6 1 2 3 4 5 6 Unlock the screw ...
- Page 14 ZN‐PTZ(W)xxVPIPE4100/IPE4500 Installation Guide Camera ID Setup ID number of camera is set using binary number. The example is shown bellow. DIP1 Pin 1 2 3 4 5 6 7 8 ID Value 1 2 4 8 16 32 64 128 Default on off off off off off off off ex) ID=10 off on off on off ...
- Page 15 ZN‐PTZ(W)xxVPIPE4100/IPE4500 Installation Guide ‐ If you want to control using DVR or P/T controller, their protocol must be identical to camera. Otherwise, you cannot control the camera. ‐ If you changed camera protocol by changing DIP S/W, the change will be effective after you reboot the camera. ‐ Factory default of protocol is “Pelco‐D, 2400 bps, 8 bit, 1 stop bit, no parity.” 06A.02 17 ...
-
Page 16: Configuration
ZN‐PTZ(W)xxVPIPE4100/IPE4500 Installation Guide 6. CONFIGURATION 6.1.Set up network environment The default IP address of your IP device is 192.168.XXX.XXX. You can find the available IP address from the MAC address of your device. Please make sure the device and your PC are on the same network segment before running the installation. If the network segment between your PC and the device is different, change your PC’s settings as below. ... - Page 17 ZN‐PTZ(W)xxVPIPE4100/IPE4500 Installation Guide To use the IPAdminTool and view the live video on a web page: 1. Start IPAdminTool. Names and info of currently activated IP devices appear as a list. 2. Right‐click on the desired device and select Web view. 3. Click pop‐up blocked and install the ActiveX setup.exe by clicking the Run or Save button. You need to install the ActiveX for displaying the images. 4. Follow the instructions of the dialog boxes and complete the installation. Then the live video is displayed on the main page of the web browser. 5. If the live video is not displayed with the message said, “This software requires the Microsoft XML Parser V6 or higher. Please download MSXML6 from the Microsoft website to continue. Error code: Can not create XMLDOMDocument.”, please download and install the relevant MSXML. If ...
-
Page 18: View Video Using Ip Address
ZN‐PTZ(W)xxVPIPE4100/IPE4500 Installation Guide 6.2.2. View video using IP address View the live video on a web page using your IP device and its IP address. To have the correct IP address ready and use it on a web page: 1. Convert a MAC address to an IP address or check the IP address on the IPAdminTool. Refer to Appendix (D): Hexadecimal‐Decimal Conversion Table. ... -
Page 19: Appendix (A): Specifications
ZN‐PTZ(W)xxVPIPE4100/IPE4500 Installation Guide APPENDIX (A): SPECIFICATIONS Summary The explanation and specification at this manual are mainly on the basis of the specific camera model, which uses Sony 36X Optical Zoom module. Camera Module Image Sensor Sony 1/4” Exview HAD CCD Samsung 1/4" Interline Transfer CCD Effective Pixels NTSC 768(H) * 494(V) 380K / PAL 752(H) * 582(V) 440K TV System NTSC / PAL Horizontal 550TV Lines 550TV Lines Resolution Auto / Manual (Red, Blue ATW / AWC / OUTDOOR / MANUAL (1700 °K ~ White Balance Gain Adjustable) 11,000°K) Scanning System 2:1 Interlace Sync System Internal (12 VDC) 1.4Lux (50IRE) , 0.2Lux (50IRE) , Min. Illumination 0.01Lux (ICR On) 0.02Lux (ICR On) 27x Optical Zoom (F=1.6 ~ 37x Optical Zoom 36x Optical Zoom (F=1.6 ~ Lens (Optical) 2.8 , f=3.5 to 95mm ) (F=1.6~F3.9, f=3.5~129.5 ... - Page 20 ZN‐PTZ(W)xxVPIPE4100/IPE4500 Installation Guide System Accuracy 0.024° Dome Horizontal Angle of 57.8° (Wide end) to 1.7° (Tele end) View (Approx.) 165 positions with 16 character labels / Preset Independent preset characteristic setup Auto Scan Programmable Auto Scan Max. 8 Programmable group tours Group Tour (each one consisting of up to 60 preset steps with different steps) Pattern 8 Programmable Patterns (total 480 seconds) Sector 8 Selectable Sectors with 16 characters Privacy Zone 24 8 Auto Flip On / OFF On Screen Camera ID, Pan/Tilt angle, Flip, Zoom, etc Display(analog) Video Compression H.264, MPEG‐4, MJPEG Selectable per Stream Number of Streams Dual stream, Configurable Resolution D1, 4CIF, 2CIF, VGA, CIF, QVGA, QCIF Compression FPS 25/30 fps @ D1 (PAL/NTSC) De‐interlacing Supported (DSP) Motion Detection Supported ...
-
Page 21: Electrical Characteristics
ZN‐PTZ(W)xxVPIPE4100/IPE4500 Installation Guide (Dome) ABS Material (Outdoor Housing) Aluminum ,Poly Carbonate Dome: 147φ * 190mm(H) (5.8" (D) * 7.5"(H)) Dimensions Outdoor Housing: 149φ * 312mm(H) Color Cool gray Dome: 1.9 kg (5 lbs) Weight (Approx) Outdoor Housing: 5.7 kg Electrical Characteristics Power Source Dome:18~32VAC 60/50Hz 850mA With Outdoor Housing: 18~32VAC 60/50Hz 1.5A Power Consumption Dome:18W Max With Outdoor Housing: 36W Max Analog Video Output 1 Vp‐p, 75Ω, Composite Audio Input Linein, 1.43Vp‐p(Min 1.35Vp‐p, max 1.49 Vp‐p), 39 KΩ Audio Output Lineout, 46mW Power, 16 Ω D/I Voltage type : Max 12V, Max 50mA Relay type : On resistance‐ Max 50 Ω D/O Relay type : On‐state current : Max 110mA, On‐state resistance: 50 Ω (max continuous) Environment Condition Fan / Heater Supported via Outdoor Housing ‐10 ~ 50 (14 ~ 122 ) (Dome) Operating Temperature ... -
Page 22: Appendix (B): Dimensions
ZN‐PTZ(W)xxVPIPE4100/IPE4500 Installation Guide APPENDIX (B): DIMENSIONS Dome (Unit: mm) 06A.02 24 ... -
Page 23: Outdoor Housing
ZN‐PTZ(W)xxVPIPE4100/IPE4500 Installation Guide Outdoor Housing (Unit: mm) 06A.02 25 ... -
Page 24: Appendix (C): Accessories
ZN‐PTZ(W)xxVPIPE4100/IPE4500 Installation Guide APPENDIX (C): ACCESSORIES Outdoor part Sun Visor Housing Circuit Board Cover Mount Bracket 06A.02 26 ... -
Page 25: Assembling Outdoor Housing
ZN‐PTZ(W)xxVPIPE4100/IPE4500 Installation Guide Assembling outdoor housing Attach the mount bracket to the dome camera. Find more explanation at NOTE A below. Cover Open the dome cover to remove the bubble. Find more explanation at NOTE B below. Twist the bubble counterclockwise and remove it Remove the bubble from the dome cover. Put the dome cover on the dome camera. Connect the LAN cable and power supply cable with the dome camera. Find more explanation at NOTE C below. Housing Place the dome camera into the outdoor housing. Fasten the dome camera with screws. Make sure the dome camera and the housing fit each other Sun Visor into place. Put the outdoor cover on the housing. Fasten the cover with screws. When assembling the dome and its outdoor housing, make sure they fit each other into place. Note Dome Camera with Mount Bracket NOTE A. Before you assemble the dome camera and its outdoor housing, you should attach the mount bracket to the dome camera. For the detailed information, please refer to the 4. INSTALLATION NOTE B. when you remove the bubble, you ... - Page 26 ZN‐PTZ(W)xxVPIPE4100/IPE4500 Installation Guide NOTE C. when you supply the electric power to the outdoor housing, you should connect the lines between outdoor housing and dome camera using terminal block. Please refer to the picture below. <Bottom of Dome Camera> Terminal Block AC24V ADAPTOR Circuit Board Con1 Con2 <Outdoor Housing> There is a bimetal implemented in the outdoor housing for controlling the fan and heater. Refer to its specification below for more details. Bimetal for Fan Heater Activation 35°C‐OFF / 45°C‐ON ...
- Page 27 ZN‐PTZ(W)xxVPIPE4100/IPE4500 Installation Guide APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec 00 0 4A 74 6F 94 B9 185 DE 25 37 BA 186 01 1 26 38 ...
-
Page 28: Appendix (D): Hexadecimal-Decimal Conversion Table
ZN‐PTZ(W)xxVPIPE4100/IPE4500 Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments 01A.00 15/07/2009 Created. 01A.01 08/24/2009 Added the requirement of VCA : MSXML4.0 01A.02 09/25/2009 Added Operation the OSD menu Added Setting the Image Attribute 01A.03 09/29/2009 Changed the VCA specification 01A.04 10/15/2009 Added the Cross Reference 01A.05 11/16/2009 Added the assembling Outdoor housing 01A.06 11/19/2009 Removed DI voltage type 01A.07 12/09/2009 Added Specifications items 01A.08 12/24/2009 Changed the assembling Outdoor housing 01B.00 01/08/2010 Official SDK release version 01B.01 01/11/2010 Added the description of ZN‐PTZ(W)xx‐XT. ...
