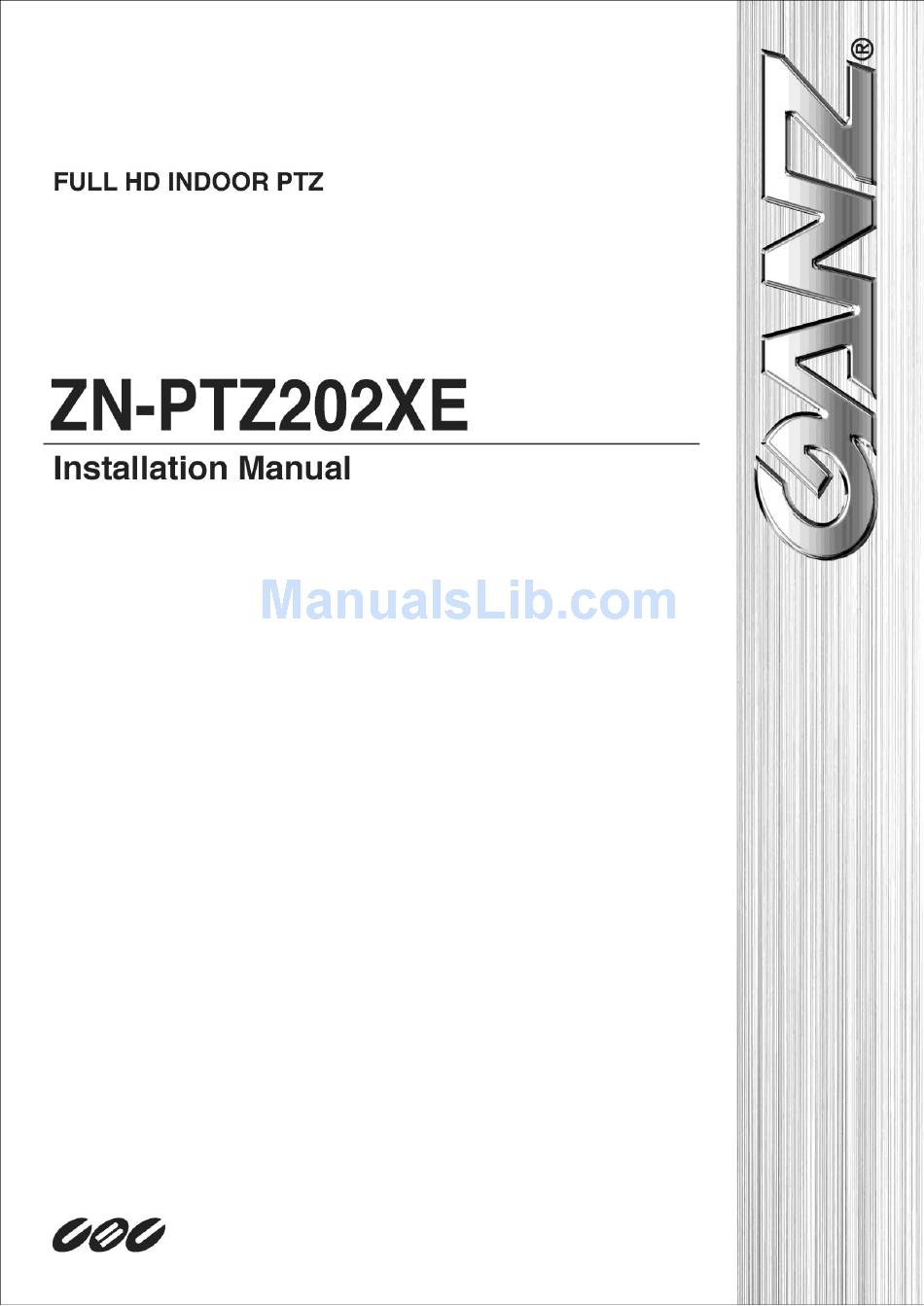

Ganz ZN-PTZ202XE Installation Manual

Full hd indoor ptz
Hide thumbs Also See for ZN-PTZ202XE:

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZN-PTZ202XE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ganz ZN-PTZ202XE

  • Page 2: Information To User

    ZN-PTZ202XE Installation Guide INFORMATION TO USER CAUTION RISK OF ELECTRIC SHOCK, DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). CONTACT QUALIFIED SERVICE PERSONNEL FOR INTERNAL PARTS. This symbol is intended to alert the user the presence of un-insulated “dangerous voltage”...
  • Page 3: Table Of Contents

    ZN-PTZ202XE Installation Guide Table of Contents 1. FEATURES ......................... 4 2. PACKAGE CONTENTS ....................5 3. PART NAMES ......................6 4. INSTALLATION ......................7 4.1. Setting the Lens Position ....................8 4.3. Setting the Image Attribute .................... 8 5. CONNECTIONS ......................9 6.
  • Page 4: Features

    ZN-PTZ202XE Installation Guide 1. FEATURES Camera  Full HD indoor high-speed dome IP camera  High quality compression in real time streaming  1/3” High Quality CMOS Image Sensor  Optical 20X, Digital 8X zoom  True Day / Night (ICR) ...
  • Page 5: Package Contents

    ZN-PTZ202XE Installation Guide 2. PACKAGE CONTENTS Unpack carefully and handle the equipment with care. The packaging contains: Camera Video connector Quick installation guide The above contents are subject to change without prior notice. Note 01A.00...
  • Page 6: Part Names

    ZN-PTZ202XE Installation Guide 3. PART NAMES PCB View ⑦ ⑥ ⑤ ④ ③ ① ② Main Camera Top View ⑧ ⑨ * Models and their appearance are subject to change without any prior notice. ① 3-Pin terminal block connector ② Video Out For power connection (AC, FG, AC) CVBS : 1.0 Vp-p / 75Ω...
  • Page 7: Installation

    ZN-PTZ202XE Installation Guide 4. INSTALLATION 1) Secure three screws inside a PCB board shield’s three unit holders with metal rings attached in the end. 2) Connect all necessary cables to a PCB board before attaching the shield to an installation surface.
  • Page 8: Setting The Lens Position

    ZN-PTZ202XE Installation Guide 4.1. Setting the Lens Position The device is 360° rotating camera and fully controlled by web user interface. Once the unit’s installation is complete and connected properly, please refer to ZN-XE Series Web User’s Manual for the device’s camera configuration instructions.
  • Page 9: Connections

    ZN-PTZ202XE Installation Guide 5. CONNECTIONS Top View ④ ② ③ ① ⑤ * Models and their appearance are subject to change without any prior notice. ① Audio Mic in and Line out (3.5mm) Support PCM8/16, G.711 a-law, and u-law compression formats.
  • Page 10 ZN-PTZ202XE Installation Guide ④ LAN connector Use 10/100 Base-T Ethernet cable to connect to a network. Use RJ45 coupler to extend the cable. ⑤ 12V DC Power A 3-pin terminal block is used for power output. Function Notes Output ⑥ Micro SD slot Located on top of main device, next to 32-pin socket, a user must push the upper cover as inscribed arrow direction next to “OPEN”...
  • Page 11: Configuration

    ZN-PTZ202XE Installation Guide 6. CONFIGURATION 6.1.Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. Be sure that the device and PC are on a same area network before running the installation.
  • Page 12: Custom Ip Environment

    ZN-PTZ202XE Installation Guide 6.1.2. Custom IP Environment IPAdminTool is provided with SDK at the following SDK path. {SDK root}\BIN\TOOLS\AdminTool\ IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations.
  • Page 13: View Video On Web Page

    ZN-PTZ202XE Installation Guide 6.2. View video on web page Type the proper IP address to view the live streaming images through a web browser. The default username and password is root / pass. 6.2.1. ActiveX Installation When the browser asks to install the AxUMF software, click Install to proceed.
  • Page 14: View Video Using Ipadmin Tool

    ZN-PTZ202XE Installation Guide 6.2.2. View video using IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. IPAdminTool is provided with SDK at the following SDK path.
  • Page 15: Factory Default

    ZN-PTZ202XE Installation Guide 6.3. Reset Perform the following procedures to reset your device: Press the Reset button for 2 seconds. Wait for the system to reboot. Reset Button Location 6.4. Factory Default Resetting the device back to the factory default will initialize all parameters including the IP address back to the factory defaults.
  • Page 16: Appendix (A): Specifications

    ZN-PTZ202XE Installation Guide APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor 1/3” 1080p CMOS CMOS Effective Pixels 1920x1080 Scanning system Progressive scanning Resolution 1920 x 1080 ELECTRICAL Min. Color: 1.5Lux(50 IRE) / 0.02Lux(Sens-up) Illumination B/W : 0.1Lux(50 IRE) / 0.001Lux(Sens-up)
  • Page 17: Electrical Characteristics

    ZN-PTZ202XE Installation Guide Electrical Characteristics Power Source AC 24V ±10%, PoE+ (IEEE802.3at) Power Consumption Max. 21W Video Output 1 Vp-p, 75Ω, Composite Audio Input / Output Mic in, Line out Audio Format PCM8/16, G.711 a-law, u-law Environment Condition Operating Range (Indoor) AC24V : 0˚C ~ 50˚C (32˚F ~ 122˚F)
  • Page 18: Appendix (B): Power Over Ethernet

    ZN-PTZ202XE Installation Guide APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables.
  • Page 19: Appendix (C): Dimensions

    ZN-PTZ202XE Installation Guide APPENDIX (C): DIMENSIONS (Unit: mm) 01A.00...
  • Page 20: Appendix (D): Hexadecimal-Decimal Conversion Table

    ZN-PTZ202XE Installation Guide APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. AA 170 AD 173 DA 218 DD 221 01A.00...
  • Page 21: Revision History

    ZN-PTZ202XE Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments 01A.00 12/06/2012 First release version 01A.00...
