Ganz ZN8 User Manual

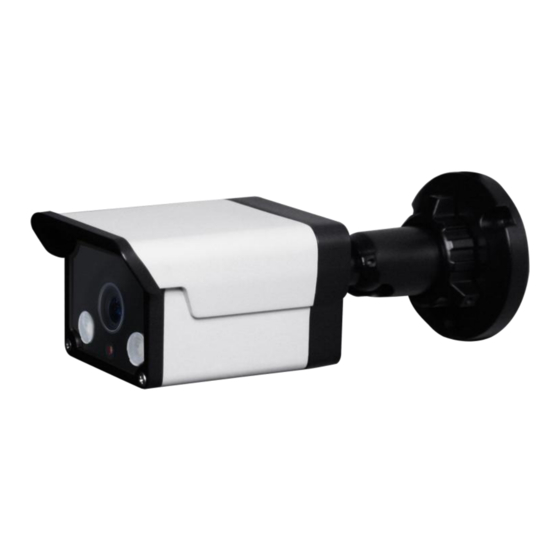

Infrared bullet network camera
Hide thumbs Also See for ZN8:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

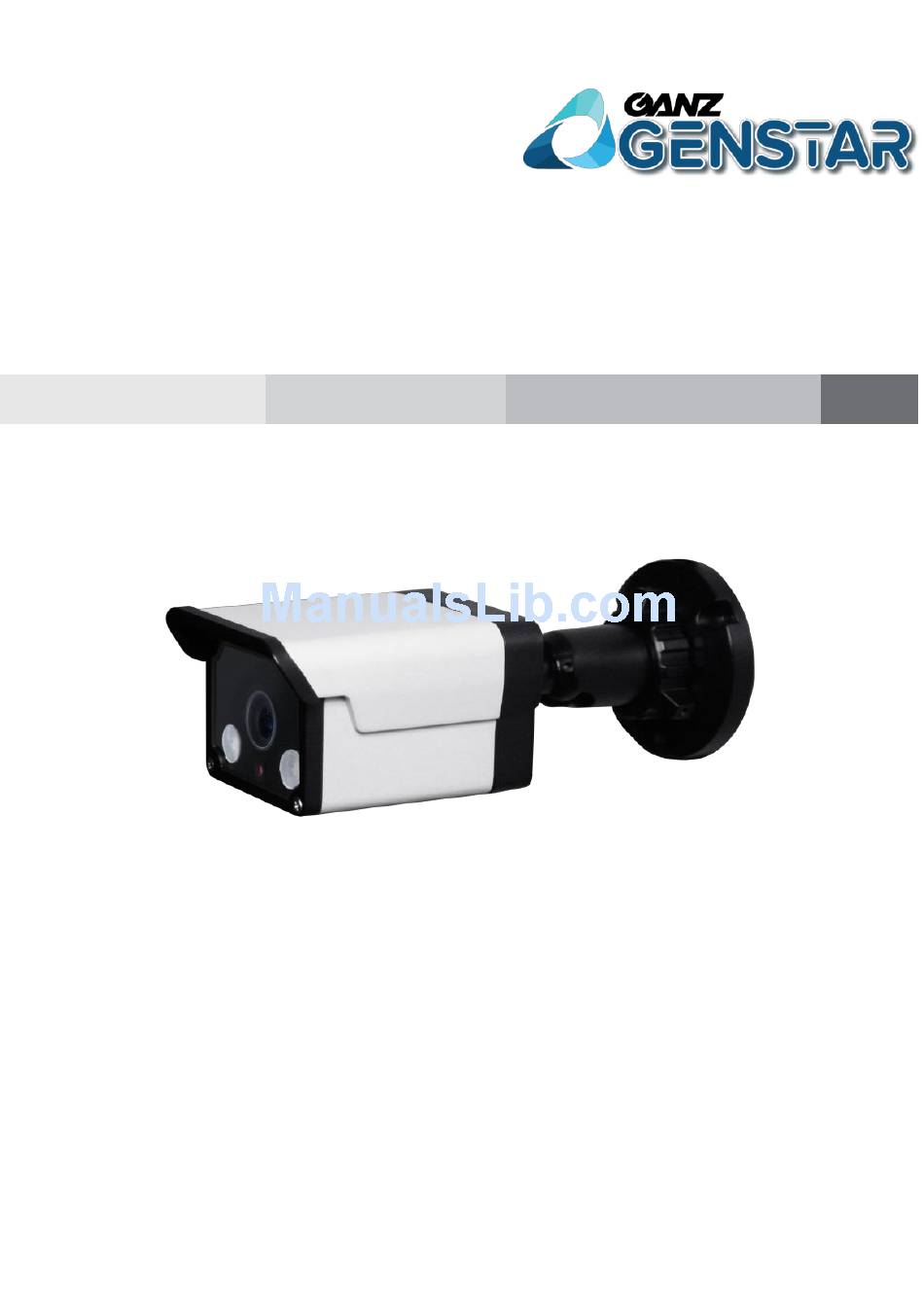

GANZ ZN8 Infrared Bullet Network Camera

User Manual

Issue
V1.0
Date
2016-02-22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZN8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ganz ZN8

Summary of Contents for Ganz ZN8

  • Page 1: User Manual

    GANZ ZN8 Infrared Bullet Network Camera User Manual Issue V1.0 Date 2016-02-22...

  • Page 3: Precautions

    Infrared Bullet Network Camera User Manual Precautions Precautions Precautions Fully understand this document before using this device, and strictly observe rules in this document when using this device. If you install this device in public places, provide the tip "You have entered the area of electronic surveillance" in an eye- catching place.
  • Page 4 Infrared Bullet Network Camera Precautions User Manual  Strictly conform to local electrical safety standards and use power adapters that are marked with the LPS standard when installing and using this device. Otherwise, this device may be damaged.  Use accessories delivered with this device. The voltage must meet input voltage requirements for this device.
  • Page 5 Infrared Bullet Network Camera User Manual Precautions Special Announcement All complete products sold by the manufacturer are delivered along with nameplates, operation instructions, and accessories after strict inspection. The manufacturer shall not be held responsible for counterfeit products. This manual may contain misprints, technology information that is not accurate enough, or product function and operation description that is slightly inconsistent with the actual product.

  • Page 7: Table Of Contents

    Infrared Bullet Network Camera User Manual Contents Contents Precautions ........................i 1 Overview ........................1 1.1 Hardware Connection ..................... 1 1.2 Features .......................... 2 2 Device Dimensions ....................4 3 Device Installation ....................5 3.1 Installation Mode......................5 3.2 Installation Procedure ..................... 5 4 Quick Configuration ....................

  • Page 9: Overview

    Infrared Bullet Network Camera User Manual 1 Overview Overview 1.1 Hardware Connection Figure 1-1 shows the multi-head cable used by an IR Bullet Network Camera. Table 1- 1 describes the multi-head cable. Figure 1-1 Multi-head cable Table 1-1 Multi-head cable description Function Description Network...

  • Page 10: Features

    Infrared Bullet Network Camera 1 Overview User Manual Figure 1-2 Real panel Table 1-2 Components on the rear panel Component Description Reset button Restores the camera to the factory settings by pressing and holding this button for more than five seconds. 1.2 Features Network Features ...
  • Page 11 Infrared Bullet Network Camera User Manual 1 Overview Photographic Experts Group（MJPEG）or H.264 standard. The frame rate and image quality can be configured I/O Features  Provides a 10/100 Mbits/s self-adaptive Ethernet port. Other Features  Support the heartbeat function that allows the management host to learn the running status of the IP camera in real time.

  • Page 12: Device Dimensions

    Infrared Bullet Network Camera 2 Device Dimensions User Manual Device Dimensions Figure 2-1 shows the camera dimensions. Figure 2-1 Dimensions (unit: mm) Issue V1.0 (2016-02-22)

  • Page 13: Device Installation

    Infrared Bullet Network Camera User Manual 3 Device Installation Device Installation 3.1 Installation Mode The IR Bullet Camera can be installed on the ceiling or wall. You can select an installation position based on your requirement. The following installation procedure assumes that the IPC is installed on the wall.
  • Page 14 Infrared Bullet Network Camera 3 Device Installation User Manual Figure 3-2 Installing the expansion particles Step 3 Mount the camera on the wall and fasten the screws, as shown in Figure 3-3. Figure 3-3 Fixing the camera Step 4 Connect the multi-connector cable. Step 5 Loosen the bracket locking ring to adjust the position so that the camera faces the monitored area, then tighten the bracket locking ring and fix the locking screw, as...
  • Page 15 Infrared Bullet Network Camera User Manual 3 Device Installation Figure 3-4 Adjusting the monitoring direction Issue V1.0 (2016-02-22)

  • Page 16: Quick Configuration

    Infrared Bullet Network Camera 4 Quick Configuration User Manual Quick Configuration 4.1 Login and Logout You must use Internet Explorer 6 or a later version to access the web management system; otherwise, some functions may be unavailable. Login system Step 1 Open the Internet Explorer, enter the IP address of IP camera (default value: 192.168.1.168) in the address box, and press Enter.

  • Page 17: Main

    Infrared Bullet Network Camera User Manual 4 Quick Configuration logout To logout of system, click Sign out in the upper right corner of the main page, the login page is display after you log out of the system. 4.2 Main page layout On the main page, you can view Live video, playback and configuration, change the password, and log out of the system.

  • Page 18: Browsing Video

    Infrared Bullet Network Camera 4 Quick Configuration User Manual Element Description will display within 10s in the web management system. When the device encounters an exception, the fault icon Fault icon is displayed. You can click to view the fault information. Change You can click to change the password.
  • Page 19 Infrared Bullet Network Camera User Manual 4 Quick Configuration Figure 4-3 Adding the a trusted site 2. In the Internet Explorer, choose Tool > Internet Options > Security > Customer level, and set Download unsigned ActiveX control and initialize and script ActiveX controls not marked as safe for scripting under ActiveX controls and plug-ins to Enable, as shown in Figure 4-4.

  • Page 20: Download The Right Control In The Internet Explorer

    Infrared Bullet Network Camera 4 Quick Configuration User Manual The login page is display when the control is loaded. 4.3.1 Download the right control in the Internet Explorer Preparation  User uses the Internet Explorer browse video. Live video page pop-ups the message “clicks to play live video with ActiveX ...

  • Page 21: In The Google, Firefox, Or Safari Browsers Watch Live Video

    Infrared Bullet Network Camera User Manual 4 Quick Configuration Figure 4-6 Download control tips Click the message ”click here to use Flash for live Video ”, jump to download ActiveX control interface, once downloading is complete, you can watch more fluent video screen.

  • Page 22: Parameter Description

    Infrared Bullet Network Camera 4 Quick Configuration User Manual Figure 4-7 Local Network page Step 2 Set the parameters according to Table 4-2. Table 4-2 Local network parameters Parameter Description Setting IP Protocol IPv4 is the IP protocol that uses [Setting method] an address length of 32 bits.
  • Page 23 Infrared Bullet Network Camera User Manual 4 Quick Configuration Parameter Description Setting Default Gateway This parameter must be set if [Setting method] the client accesses the device Enter a value manually. through a gateway. [Default value] 192.168.1.1 Preferred DNS IP address of a DNS server. [Setting method] Server Enter a value manually.

  • Page 24: Technical Specifications

    Infrared Bullet Network Camera 5 Technical Specifications User Manual Technical Specifications Table 5-1 lists the technical specifications of the camera. Table 5-1 Technical specifications Specifications Description Image sensor 1/3" AR0330 Aptina CMOS Standard(PAL/N Can be configured TSC) 1920(H) ×1080(V) Effective Pixels Digital zoom Not supported Color: 0.2Lux@(F1.2, AGC ON, 50IRE, 3200K)
  • Page 25 Infrared Bullet Network Camera User Manual 5 Technical Specifications Specifications Description RS485 Optical interface Alarm interface Audio interface BNC connectors SD card interface Video coding H.264(ISO/IEC 14496-10) and MJPEG 50Hz： 25fps (1920×1080) 25fps (640×360) 12fps(1920×1080) Image coding specification 60Hz： 30fps (1920×1080) 30fps (640×360) 12fps(1020×1080) Main bit rate: 500Kbps~12Mbps...
  • Page 26 Infrared Bullet Network Camera 5 Technical Specifications User Manual Specifications Description access users Corridor mode On/off Alarm detection Occlusion video Four area, area size can be set Motion detection Support eight motion detection area Cache makeup Region of interest ROI Intelligent analysis Subtitles...
  • Page 27 Infrared Bullet Network Camera User Manual 5 Technical Specifications Specifications Description Operating 0-95% humidity Storage -20-70℃ temperature Protection level IP 66 Weight 481g 169(W) ×70(H) ×60(D) Dimensions(mm) Installation Wall, Ceiling model Issue V1.0 (2016-02-22)

  • Page 28: A Hazardous Substance Declaration

    Infrared Bullet Network Camera User Manual Hazardous Substance Declaration Hazardous Substance or Element Hexavalent Polybrominated Component Plumbum Mercury Cadmium Polybrominated Chromium Diphenyl Ethers (Pb) (Hg) (Cd) Biphenyls (PBB) (Cr6+) (PBDE) Structural × ○ ○ ○ ○ ○ part Board/circuit × ○...
