Ganz ZN8 User Manual

Ir vandal dome network camera
Hide thumbs Also See for ZN8:
Table of Contents

Advertisement

Quick Links

See also: User Manual

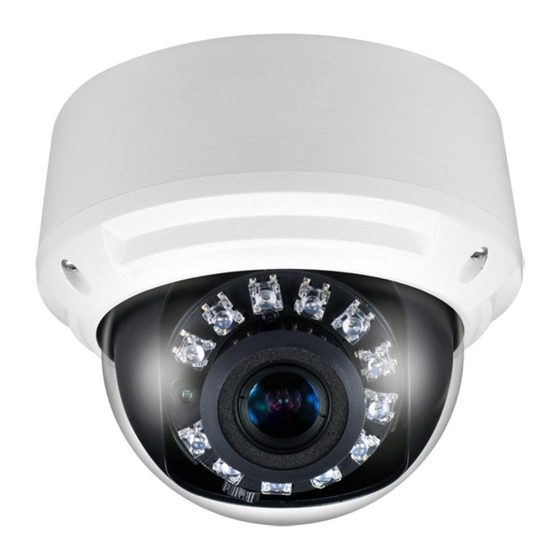

GANZ ZN8 IR Vandal Dome Network Camera

User Manual

Issue
V1.3
Date
2016-02-22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZN8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ganz ZN8

Summary of Contents for Ganz ZN8

  • Page 1: User Manual

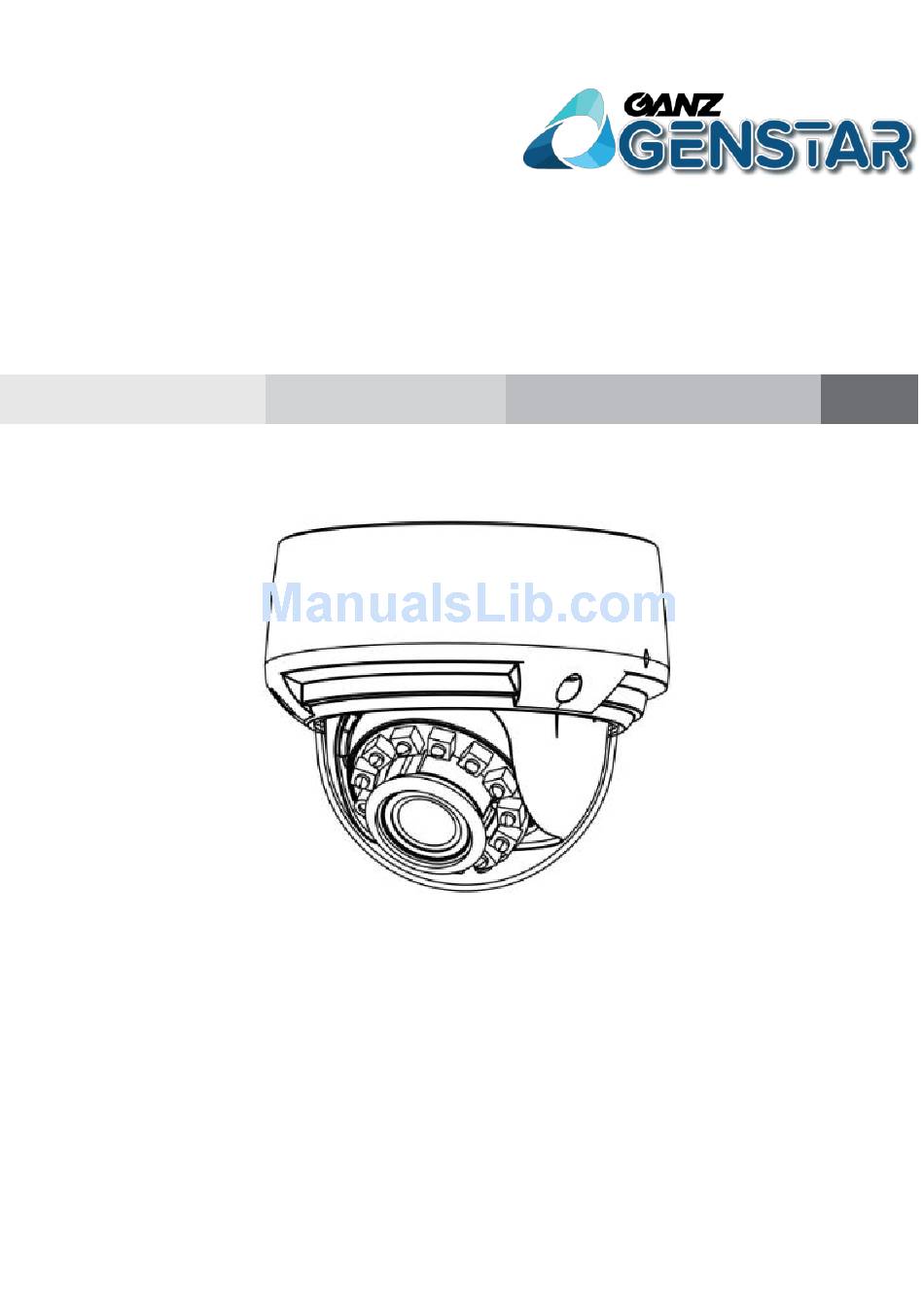

    GANZ ZN8 IR Vandal Dome Network Camera User Manual Issue V1.3 Date 2016-02-22...

  • Page 3: Precautions

    IR Vandal Dome Network Camera User Manual Precautions Precautions Precautions Fully understand this document before using this device, and strictly observe rules in this document when using this device. If you install this device in public places, provide the tip "You have entered the area of electronic surveillance" in an eye- catching place.
  • Page 4 IR Vandal Dome Network Camera Precautions User Manual  Strictly conform to local electrical safety standards and use power adapters that are marked with the LPS standard when installing and using this device. Otherwise, this device may be damaged.  Use accessories delivered with this device.
  • Page 5 IR Vandal Dome Network Camera User Manual Precautions Special Announcement All complete products sold by the manufacturer are delivered along with nameplates, operation instructions, and accessories after strict inspection. The manufacturer shall not be held responsible for counterfeit products. This manual may contain misprints, technology information that is not accurate enough, or product function and operation description that is slightly inconsistent with the actual product.

  • Page 6: Table Of Contents

    IR Vandal Dome Network Camera Contents User Manual Contents Precautions ........................i 1 Overview ........................1 1.1 Hardware connection ...................... 1 1.2 Features .......................... 3 2 Device Dimensions ....................5 3 Device Installation ....................6 3.1 Installation Preparation ....................6 3.2 Installation Modes ......................

  • Page 7: Overview

    IR Vandal Dome Network Camera User Manual 1 Overview Overview 1.1 Hardware connection Figure 1-1 and Figure 1-2 shows the multi-head cable used by an IR Vandal Dome Network Camera, which is described in Table 1-1. Figure 1-1 Simple multi-head cable (optional) Figure 1-2 Multi-head cable Table 1-1 Multi-head cable description Color...
  • Page 8 IR Vandal Dome Network Camera 1 Overview User Manual Color Port Description Power supply Connects to a 12V direct current (DC) port power supply or 24V alternating current (AC) power supply. Audio input Receives analog audio signals from port devices such as a sound pickup device. Audio output Connects to an external audio device port...

  • Page 9: Features

    IR Vandal Dome Network Camera User Manual 1 Overview Table 1-2 Hardware port connection Port Description SD card slot Installs an SD card. NOTE  Before installing an SD card, verify that the SD card is not in the write protection state. ...
  • Page 10 IR Vandal Dome Network Camera 1 Overview User Manual Image Processing Features  Supports multiple streams. Encoding parameters for the main stream and sub stream can be configured separately.  Supports dynamic stream parameters based on different image quality requirements. ...

  • Page 11: Device Dimensions

    IR Vandal Dome Network Camera User Manual 2 Device Dimensions Device Dimensions Figure 2-1 shows the camera dimensions. Figure 2-1 Dimensions (unit: mm) Issue V1.3 (2016-02-22)

  • Page 12: Device Installation

    IR Vandal Dome Network Camera 3 Device Installation User Manual Device Installation 3.1 Installation Preparation When installing the camera, you may require the following tools and accessories listed in Table 3-1. You need to prepare only listed tools as accessories are delivered with the camera.

  • Page 13: Installation Modes

    IR Vandal Dome Network Camera User Manual 3 Device Installation Tool Appearance Video cables (delivered with the camera) JY-F plug wrench (delivered with the camera) Swell plastic buttons (delivered with the camera) To avoid moisture influence, install the dome cover at least half an hour after the camera is installed and powered on.
  • Page 14 IR Vandal Dome Network Camera 3 Device Installation User Manual Figure 3-1 Ceiling mount installation Installation by the White Lower Cover Step 1 Use the T15 plum blossom screwdriver in the accessory package to unscrew the three white plum blossom screws on the dome cover. The camera is opened, as shown in Figure 3-2.
  • Page 15 IR Vandal Dome Network Camera User Manual 3 Device Installation Figure 3-3 Removing the lining and lower cover Unscrew Left and right indicating arrows marked on the lining Cross screwdriver Three black screws Lower cover Step 3 Fetch the positioning labeling from the accessory package, remove the release paper from the positioning labeling, and stick the labeling to the place where the camera is to be installed.
  • Page 16 IR Vandal Dome Network Camera 3 Device Installation User Manual Figure 3-4 Nailing the white plastic buttons Positioning labeling Three white plastic buttons Step 5 Fetch the lower cover, aim the three through-holes on the bottom of the lower cover at the three white plastic buttons in the wall, and use three black self-tapping screws with a length of 30 mm to fix the lower cover on the wall.
  • Page 17 IR Vandal Dome Network Camera User Manual 3 Device Installation  If you use the top routing method, route the multi-head composite cables through the routing opening with a diameter o 30 mm on the top.  If you use the aside routing method, route the multi-head composite cables through the aside opening on the lower cover.
  • Page 18 IR Vandal Dome Network Camera 3 Device Installation User Manual Figure 3-7 Fastening screws Main body fixation screws Secondary video port Adjust the lens focal length and field angle range. Step 9 Assemble the lining that has been removed in Step 2 with the main body and buckle the four button placements with the main body bracket.
  • Page 19 IR Vandal Dome Network Camera User Manual 3 Device Installation Figure 3-8 Assembling the lining and fastening the dome cover Four button placements on the left and right Lining Dome cover T15 plum blossom screwdriver Direct Installation by the Main Body Base Cover Step 1 Fetch the positioning labeling from the accessory package, remove the release paper from the positioning labeling, and stick the labeling to the place where the camera is to...
  • Page 20 IR Vandal Dome Network Camera 3 Device Installation User Manual Figure 3-9 Drilling round holes and nailing plastic buttons Top routing Aside routing opening Three white plastic buttons Step 3 Unscrew the three black screws on the main body black base cover and keep the lower cover immobile.
  • Page 21 IR Vandal Dome Network Camera User Manual 3 Device Installation Figure 3-10 Fastening the camera Three black screws Plug Three long black self- tapping screws Step 6 Buckle the lining with the main body bracket and screw the three plum blossom screws by using the T15 plum blossom screwdriver to fasten the dome cover.

  • Page 22: Wall Mount Installation

    IR Vandal Dome Network Camera 3 Device Installation User Manual Figure 3-11 Assembling the lining and fastening the dome cover Four button placements on the left Lining and right Dome cover T15 plum blossom screwdriver 3.2.2 Wall Mount Installation The wall mount installation mode can be subdivided into installation by the white lower cover and direct installation by the main body black base cover.
  • Page 23 IR Vandal Dome Network Camera User Manual 3 Device Installation Figure 3-12 Wall mount installation When sticking the positioning labeling, you must first decide the aside routing direction. See Figure 3-13. Figure 3-13 Deciding the aside routing direction Three white Aside routing Aside plastic...

  • Page 24: Quick Configuration

    IR Vandal Dome Network Camera 4 Quick Configuration User Manual Quick Configuration 4.1 Login and Logout You must use Internet Explorer 6 or a later version to access the web management system; otherwise, some functions may be unavailable. Login system Step 1 Open the Internet Explorer, enter the IP address of IP camera (default value: 192.168.1.168) in the address box, and press Enter.

  • Page 25: Main

    IR Vandal Dome Network Camera User Manual 4 Quick Configuration logout To logout of system, click Sign out in the upper right corner of the main page, the login page is display after you log out of the system. 4.2 Main page layout On the main page, you can view Live video, playback and configuration, change the password, and log out of the system.

  • Page 26: Browsing Video

    IR Vandal Dome Network Camera 4 Quick Configuration User Manual Element Description When the device accepts an alarm signal, the alarm icon will display within 10s in the web management system. When the device encounters an exception, the fault icon Fault icon is displayed.
  • Page 27 IR Vandal Dome Network Camera User Manual 4 Quick Configuration Figure 4-3 Adding the a trusted site 2. In the Internet Explorer, choose Tool > Internet Options > Security > Customer level, and set Download unsigned ActiveX control and initialize and script ActiveX controls not marked as safe for scripting under ActiveX controls and plug-ins to Enable, as shown in Figure 4-4.

  • Page 28: Download The Right Control In The Internet Explorer

    IR Vandal Dome Network Camera 4 Quick Configuration User Manual The login page is display when the control is loaded. 4.3.2 Download the right control in the Internet Explorer Preparation  User uses the Internet Explorer browse video. Live video page pop-ups the message “clicks to play live video with ActiveX ...

  • Page 29: In The Google, Firefox, Or Safari Browsers Watch Live Video

    IR Vandal Dome Network Camera User Manual 4 Quick Configuration Figure 4-6 Download control tips Click the message ”click here to use Flash for live Video ”, jump to download ActiveX control interface, once downloading is complete, you can watch more fluent video screen.
  • Page 30 IR Vandal Dome Network Camera 4 Quick Configuration User Manual The Local Network page is displayed, as shown in Figure 4-7. Figure 4-7 Local Network page Step 2 Set the parameters according to Table 4-2. Table 4-2 Local network parameters Parameter Description Setting...
  • Page 31 IR Vandal Dome Network Camera User Manual 4 Quick Configuration Parameter Description Setting Subnet Mask Subnet mask of the network [Setting method] adapter. Enter a value manually. [Default value] 255.255.255.0 Default Gateway This parameter must be set if [Setting method] the client accesses the device Enter a value manually.

  • Page 32: Technical Specifications

    IR Vandal Dome Network Camera 5 Technical Specifications User Manual Technical Specifications Table 5-1 lists the technical specifications of the camera. Table 5-1 Technical specifications Items parameters Description Camera Image sensor 1/3" CMOS sensor function Video standard Configurable 2688(H) ×1512(V) Effective Pixels Digital zoom...
  • Page 33 IR Vandal Dome Network Camera User Manual 5 Technical Specifications Items parameters Description Focal length of 3.0-12mm the lens Iris Fixed aperture (automatic aperture can be customized) Infrared Infrared 10-20 m function distance External RJ-45, 10/100Base-T self-adaptive Ethernet port, Network interface support for Power over Ethernet (PoE) that complies interface...
  • Page 34 IR Vandal Dome Network Camera 5 Technical Specifications User Manual Items parameters Description Embedded Not supported microphone Network Network IPv4/ Ipv6, RTSP/RTP/RTCP, TCP/UDP, HTTPS, protocol DHCP, DNS, DDNS, PPPoE, SMTP Streaming Unicast mode Number of users in concurrent access Function Corridor mode Support Defogging Support...
  • Page 35 IR Vandal Dome Network Camera User Manual 5 Technical Specifications Items parameters Description features DC12V (-15%-+10%)/ PoE(802.3af) /AC24V(- Power supply 15%~+10%) 3W(IR LED OFF; heater OFF) Power 5.5W(IR LED ON; heater OFF) consumption 7.5W(IR LED ON; heater ON) Operating -25℃–+55℃ temperature Operating Humidity: <90% (non-condensing)

  • Page 36: A Hazardous Substance Declaration

    IR Vandal Dome Network Camera User Manual Hazardous Substance Declaration Hazardous Substance or Element Hexavalent Polybrominated Component Plumbum Mercury Cadmium Polybrominated Chromium Diphenyl Ethers (Pb) (Hg) (Cd) Biphenyls (PBB) (Cr6+) (PBDE) Structural × ○ ○ ○ ○ ○ part Board/circuit ×...
