Summary of Contents for Ganz ZN-PTZ550VP(N)E

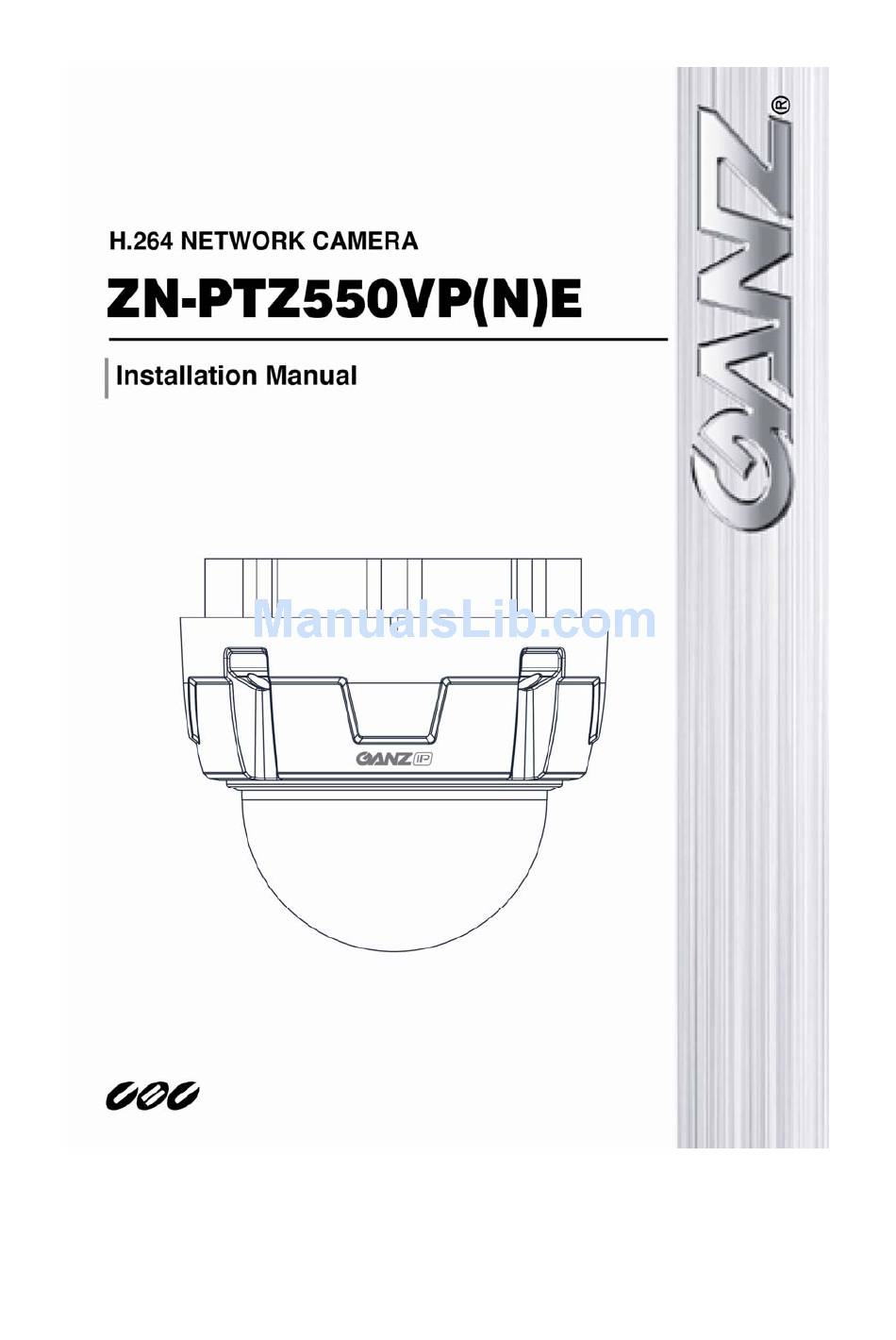

  • Page 1            ...
  • Page 2   GANZ ZN‐PTZ500VP(N)E Installation Guide  INFORMATION TO USER  CAUTION  RISK OF ELECTRIC SHOCK,      DO NOT OPEN    CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,  DO NOT REMOVE COVER (OR BACK).  NO USER SERVICEABLE PARTS INSIDE.  REFER SERVICING TO QUALIFIED SEERIVCE PERSONEL.      This  symbol  is  intended  to  alert  the  user  to  the  presence  of  un‐insulated  “dangerous voltage” within the product’s enclosure that may be of sufficient  magnitude to constitute a risk of electric shock to persons.    This  symbol  is  intended  to  alert  the  user  to  the  presence  of  important ...
  • Page 3: Table Of Contents

      GANZ ZN‐PTZ500VP(N)E Installation Guide  Table of Contents 1. FEATURES ....................... 4 2. PACKAGE CONTENTS ....................5 3. PART NAMES ......................6 4. INSTALLATION ......................8 4.1. Installation Template ......................9 4.2.Setting the Image Attribute ....................10 4.3.Operating the OSD Menu....................10 5. CONNECTIONS ...................... 11 5.1.Connectors ........................11 6. CONFIGURATION ....................15 6.1.Set up network environment .................... 15 6.2. View video on web page ....................15 6.2.1. View video using ZNS‐GIT  IPAdmin Tool ..............
  • Page 4: Features

      GANZ ZN‐PTZ500VP(N)E Installation Guide  1. FEATURES Camera  • Indoor/Outdoor PTZ Dome IP Camera (Vandal Proof)  • Sony 1/4” Super HAD CCD, 410K Pixel  • x10 Optical Zoom, x10 Digital Zoom (Max x100)  • True Day & Night (IR Cut Filter, DSS)  • Max 360°/s high speed Pan/Tilt motion  • Improvement of color rolling suppression    Streaming  • Dual streaming mode (such as different codec/resolution/bit rate and so on.)  • De‐interlacing on DSP  • Burnt‐in text supported  • Unicast/Multicast supported    Video/Audio  • Video compression: H.264/MPEG/MJPEG, 25/30FPS@D1(PAL/NTSC)  • Audio compression: G.711(µLaw, aLaw)/PCM  • Analog video out for external monitors  • Video Motion Detection supported  • 2‐way mono audio supported   ...
  • Page 5: Package Contents

      GANZ ZN‐PTZ500VP(N)E Installation Guide  2. PACKAGE CONTENTS Unpack carefully and handle the equipment with care. The packaging contains:    ZN‐PTZ500VP(N)E  7 Pin  and 5 Pin terminal block  Quick Installation Guide  Installation Template      Video BNC Cable  Screws and Anchor blocks      DIO Cable  Star Driver    3P to 2RCA Audio Cable                    The above contents are subject to change without prior notice.  Note   2010.5‐1 03A.02    5 ...
  • Page 6: Part Names

      GANZ ZN‐PTZ500VP(N)E Installation Guide  3. PART NAMES ⑨ ③  ④  ② ⑧ ⑤  ⑦ ①  ○   ⑥ * Models herein and their appearance  are subject to change without any prior  notice.    2010.5‐1 03A.02    6 ...
  • Page 7   GANZ ZN‐PTZ500VP(N)E Installation Guide  ① LAN Connector (Ethernet)  This is a RJ45 LAN connector for 10/100 Base‐T Ethernet.     ② Micro SD Card Socket  It is a memory card slot for external storage.    ③ Reset  Reset switch is used for restarting ZN‐PTZ500VP(N)E or resetting ZN‐PTZ500VP(N)E to Factory  Default (FD). Refer to the section “6.3. Reset” for more specific information.    ④ Status Indicate LED  It indicates the network and device status.    ⑤ 7 pin terminal block for power, RS‐485, and external video output  Refer to the section “5.1.Connectors” for more specific information.    ⑥ DIP Switch  Not used    ⑦ 3 pin connector for Audio Input and Output  ZN‐PTZ500VP(N)E have a mono audio input and a mono audio output.    ⑧ 4 pin Connector for USB  ZN‐PTZ500VP(N)E provide  USB  connector which is used for  external storage or wireless LAN.  (Only Ralink RT73 chipsets based wireless devices are available.)    ⑨ 4 pin connector for D/I and D/O ...
  • Page 8: Installation

      GANZ ZN‐PTZ500VP(N)E Installation Guide  4. INSTALLATION   Connect  the  LAN  cable,  power  supply  cable, and the video loop out cable with the  ZN‐PTZ500VP(N)E.       Place  the  installation  template  on  the  2)  ceiling.      Drill four holes on the template and insert  3)  anchor  blocks  into  the  holes.  Fasten  the  surface mount bracket with screws.     Put  the  main  body  on  the  surface  mount ...
  • Page 9: Installation Template

      GANZ ZN‐PTZ500VP(N)E Installation Guide    The ZN‐PTZ500VP(N)E may fall off the ceiling even after the proper installation  and  mounting.  To  prevent  any  accident,  make  sure  the  ceiling  is  firm  and  Caution stable  enough  to  support  the  ZN‐PTZ500VP(N)E.  If  any  reinforcement  is    needed, consult with your safety personnel and proceed with the installation.      4.1. Installation Template       2010.5‐1 03A.02 ...
  • Page 10: Setting The Image Attribute

      GANZ ZN‐PTZ500VP(N)E Installation Guide  4.2.Setting the Image Attribute You can set the image attribute of camera through the webpage.  The menu of image attribute can be seen under Setup > Video & Audio > Video‐in > Attribute  Setting. Brightness, contrast, hue, saturation and sharpness can be adjusted.    4.3.Operating the OSD Menu To operate the OSD of camera, refer to the ”OSD Menu Control Manual” in the SDK.    2010.5‐1 03A.02    10 ...
  • Page 11: Connections

      GANZ ZN‐PTZ500VP(N)E Installation Guide  5. CONNECTIONS 5.1.Connectors   PWR + PWR ‐ Not used RS‐485 + RS‐485 ‐ Video Output Video GND     ① Analog video out  Connect with BNC coaxial cable.    ② Power Connection  Please,  check  the  voltage  and  current  capacity  of  rated  power  carefully.  Rated  power  is  indicated in the back of main unit.    Rated Power  Input Voltage Range  Current Consumption ...
  • Page 12   GANZ ZN‐PTZ500VP(N)E Installation Guide    ④ Audio Input/Output Connection  Connect  to  the  audio  input  device  such  as  a  mike  and  the  audio  output  device  such  as  the  amplifier speaker.  Audio Input COM  Amplifier Speaker Audio Output      Audio Input : Linein, 1.43Vp‐p(Min 1.35Vp‐p, max 1.49 Vp‐p), 39 KΩ  Audio Output : Lineout, 46mW Power, 16 Ω    Do not connect the speaker without amplifier.  Caution     ⑤ Sensor (DI) connection  ZN‐PTZ500VP(N)E provides 1 channel D/I. It can be connected to either a voltage type sensor ...
  • Page 13   GANZ ZN‐PTZ500VP(N)E Installation Guide  ⑥ Alarm (DO) connection  ZN‐PTZ500VP(N)E provides 1 channel D/O.     On‐state current: Max 110mA,   On‐state resistance: 50 Ω (max continuous)    Do not exceed the maximum relay rating.  Caution     Internal  Device Relay Type    ⑦ USB connection     Data+ Data‐    +5V  4 3 2 1    2010.5‐1 03A.02    13 ...
  • Page 14   GANZ ZN‐PTZ500VP(N)E Installation Guide  ⑧ Communication Protocol Setup  Factory  default  of  PTZ  protocol  is  “Pelco‐D,  9600  bps.”  And  these  setting  values  cannot  be  changed via DIP switch.  Not used   2010.5‐1 03A.02    14 ...
  • Page 15: Configuration

      GANZ ZN‐PTZ500VP(N)E Installation Guide  6. CONFIGURATION 6.1.Set up network environment The default IP address of your IP device is 192.168.XXX.XXX. You can find the available IP address  from the MAC address of your device. Please make sure the device and your PC are on the same  network segment before running the installation. If the network segment between your PC and  the device is different, change your PC’s settings as below.    IP address     :  192.168.xxx.xxx  Subnet mask:  255.255.0.0      6.2. View video on web page View the live video on a web page using your IP device and its IP address. You can use the ZNS‐ GIT  IPAdminTool or enter the IP address on the web page.   6.2.1. View video using ZNS-GIT IPAdmin Tool ZNS‐GIT IPAdminTool automatically searches all activated GANZ encoder and network camera  series and shows the product name, IP address, MAC address and etc. ZNS‐GIT IPAdminTool is  provided with SDK at the following SDK path.    {SDK root}\BIN\TOOLS\AdminTool\  2010.5‐1 03A.02   ...
  • Page 16   GANZ ZN‐PTZ500VP(N)E Installation Guide  To use the ZNS‐GIT IPAdminTool and view the live video on a web page:    1. Start ZNS‐GIT IPAdminTool. Names and info of currently activated devices appear as a  list.  2. Right‐click on the desired device and select Web view.   3. Select Continue to this website on the Security Certificate Alert page.  (The explanation and captured images at this manual are mainly on the basis of Internet  Explorer 7.0)      4. Click  pop‐up  blocked  and  install  the  ActiveX  control  as  below.  You  need  to  install  the  ActiveX for displaying the images.        2010.5‐1 03A.02    16 ...
  • Page 17   GANZ ZN‐PTZ500VP(N)E Installation Guide  5. Wait for a few seconds while the web page loads. The live video is displayed as below.    6. If  the  live  video  is  not  displayed  and  “Can  not  Create  XMLDOMDocument  Install  MSXML4.0”  message  is  shown  as  below,  please  download  and  Install  from  the  link  below.  http://www.microsoft.com/downloads/details.aspx?familyid=3144B72B‐B4F2‐46DA‐ B4B6‐C5D7485F2B42&displaylang=en  (VCA Library requires MS XML 4.0 library which is an xml parser made by Microsoft.)    2010.5‐1 03A.02   ...
  • Page 18: View Video Using Ip Address

      GANZ ZN‐PTZ500VP(N)E Installation Guide  6.2.2. View video using IP address View the live video on a web page using your IP device and its IP address. To have the correct  IP address ready and use it on a web page:    1. Convert a MAC address to an IP address or check the IP address on the ZNS‐GIT IPAdminTool.  (The MAC address is attached on the side or bottom of the device.)    MAC address = 00‐1C‐B8‐C0‐14‐B1 → IP address = 192.168.20.177  the Hexadecimal number to Decimal number.      2. Open a web browser and enter the IP address of the device.  3. Click Continue to this website on the Security Certificate Alert page.  4. Click  pop‐up  blocked  and  install  the  ActiveX  control  You  need  to  install  the  ActiveX  for  displaying the images. ...
  • Page 19: Appendix (A): Specifications

      GANZ ZN‐PTZ500VP(N)E Installation Guide  APPENDIX (A): SPECIFICATIONS Summary Camera Module  Image Sensor  Sony 1/4” Super HAD CCD  Effective Pixels  768 x 494 (NTSC) /752 x 582 (PAL)   TV System  NTSC / PAL  Horizontal Resolution  500 TVL (Color), 570 TVL (B/W)  Zoom  X10 Optical Zoom, x10 Digital Zoom  Focal length  F1.8, f=3.8~38mm  White Balance  Auto / Manual (Red, Blue Gain Adjustable)  Scanning System  2:1 Interlace  Sync System  Internal (12 VDC)  Min. Illumination  0.7 Lux(Color) / 0.02 Lux(B/W), 50 IRE  Lens  10X Optical Day & Night F1.8 f=3.8 ~ 38.0 mm  Focus  Auto/ Manual / SemiAuto  Iris  Auto / Manual  Day & Night  Auto / Day / Night(ICR)  Shutter Speed  X128 ~1/120000 sec  S / N Ratio  50 dB (AGC off)  AGC ...
  • Page 20: Electrical Characteristics

      GANZ ZN‐PTZ500VP(N)E Installation Guide  De‐interlacing  Supported (DSP)  Motion Detection  Supported  OSD  Supported (DSP)  Burnt‐in Text(digital)  Supported (DSP)  Analog Video Output  VBS 1.0 Vp‐p Composite  Audio  Input / Output  1 / 1 Ch  Compression  PCM, G.711  Function  Network  10/100 Base‐T  DI / DO  1 / 1 ch  RS‐485  Supported  TCP/IP, UDP/IP, HTTP, RTSP, RTCP, RTP/UDP, RTP/TCP,  Protocol  SNTP, mDNS, UPnP, SMTP, SOCK, IGMP, DHCP,  FTP, DDNS, SSL v2/v3, IEEE 802.1X, SSH  Micro SD card slot  SD memory  ※ Micro SD Card is not included  Mechanical  Material  Aluminum Die Casting / Polycarbonate  Housing : 165(Ø) x163.5(H) mm/6.5(Ø)x6.3(H) inch  Dimensions  Dome : 115(Ø)/4.5(Ø) inch  Color  Ivory  Weight ...
  • Page 21: Vca (Video Content Analysis)

      GANZ ZN‐PTZ500VP(N)E Installation Guide  VCA (Video Content Analysis) VCA Presence (Included as Standard)  High Performance  Advanced Tracking Algorithm, Low False Alarm Rate  Easy to Use  Intuitive Web Browser Interface  Detection Zones  Multi‐segment Polygons and Lines  On‐screen Display  Real‐time Display of Tracking Data and Events  Stream or Analog video out  Burnt‐in Annotation  (※Analog  video  out  support  can  vary  depending  on  the  device  model and hardware version and the firmware version)  VCA Surveillance (Optional)  Camera Tampering, Direction, Stopping, Loitering, Entering,  Detection Behavior  Exiting, Appear, and Disappear Filters   3D Behavior  Perspective Corrected Size and Speed Filters  Statistics  Counting Functions and Other Statistics  Meta Data  Binary XML Format  Image Stabilization (Optional)  Electronic Stabilization ...
  • Page 22: Appendix (B): Dimensions

      GANZ ZN‐PTZ500VP(N)E Installation Guide  APPENDIX (B): DIMENSIONS   (Unit: mm)  2010.5‐1 03A.02    22 ...
  • Page 23: Appendix (D): Trouble Shooting

      GANZ ZN‐PTZ500VP(N)E Installation Guide  APPENDIX (D): TROUBLE SHOOTING Checking your Firmware Firmware is software that determines the functionality of the device. One of your first actions  when troubleshooting a problem should be to check the currently installed version. The latest  version  may  contain  a  correction  that  fixes  your  particular  problem.  The  current  firmware  version in your device can be seen under Setup > About > Version    New firmware can be downloaded at the FTP site. When you download firmware from the FTP,  your  product  will  receive  the  latest  available  functionality.  Always  read  the  upgrade  instructions and release notes available with each new release, before updating the firmware. ...
