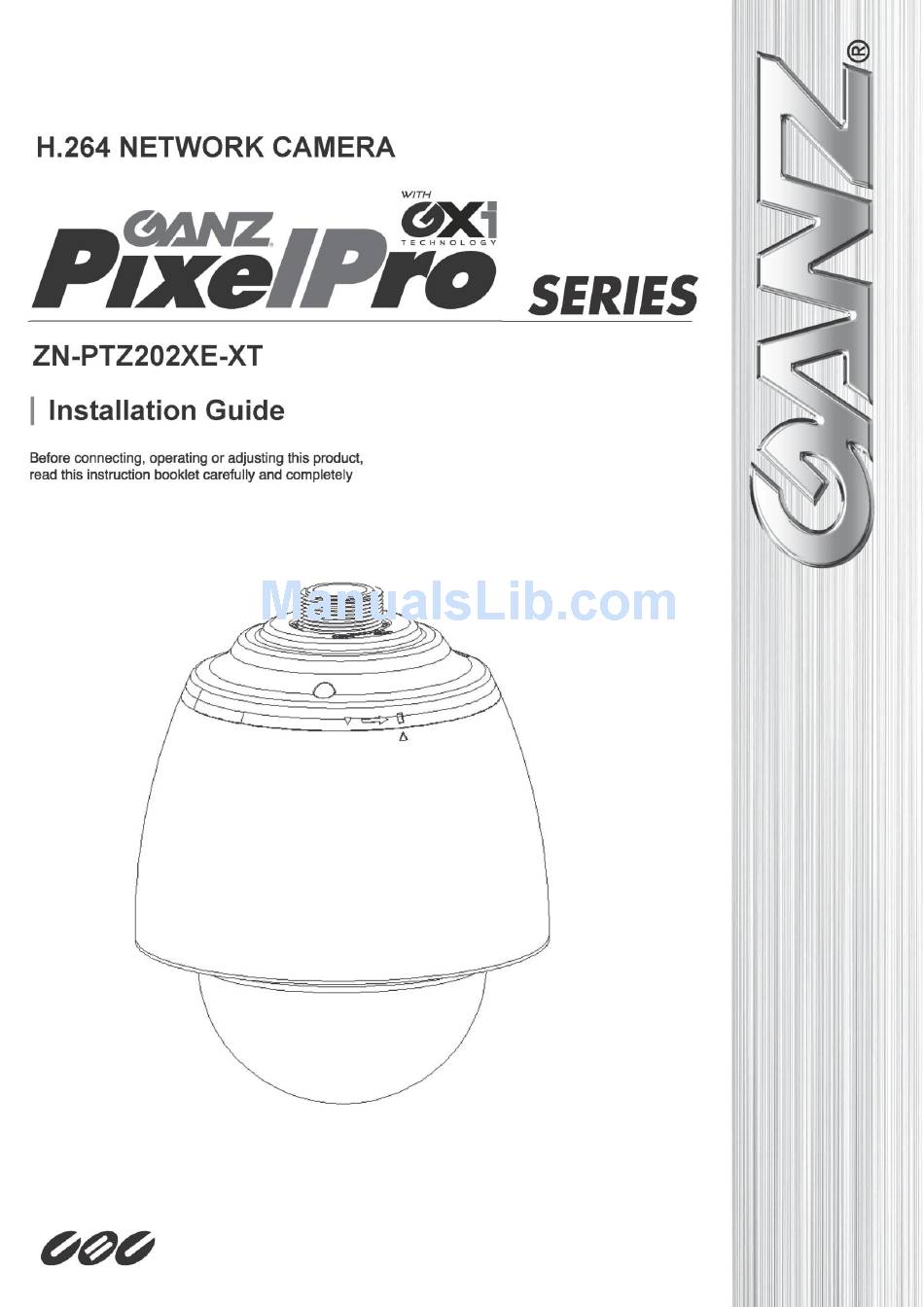

- Page 1 PixelPro GXi Series ZN-PTZ202XE-XT Installation Guide 03-2014-D...
-
Page 2: Precaution
PixelPro GXi Series ZN-PTZ202XE-XT Installation Guide Precaution Please read this manual carefully before installing the unit. Never disassemble the camera. Unauthorized disassembly may cause equipment failure or damage to the unit. Please do not install the camera in a place exposed to direct sunlight. -
Page 3: Table Of Contents
PixelPro GXi Series ZN-PTZ202XE-XT Installation Guide Table of Contents Precaution ........................ 2 1. FEATURES ......................4 2. PACKAGE CONTENTS..................... 5 4. INSTALLATION ...................... 7 4.1. Installing the camera ......................7 4.2. Adjusting the angle of the camera ..................8 4.3. Adjusting zoom and focus ....................8 4.4. -
Page 4: Features
PixelPro GXi Series ZN-PTZ202XE-XT Installation Guide 1. FEATURES Camera 1/3” 1080p CMOS Image Sensor True Day/Night DC Auto Iris Lens 20x Optical and 8x Digital zoom Weather Proof (IP66) Vandal Proof (IK10) Video ... -
Page 5: Package Contents
PixelPro GXi Series ZN-PTZ202XE-XT Installation Guide 2. PACKAGE CONTENTS Unpack carefully and handle the equipment with care. The packaging contains: Camera Video Output Cable Quick installation guide Terminal Blocks 03-2014-D... -
Page 6: Part Names
PixelPro GXi Series ZN-PTZ202XE-XT Installation Guide 3. PART NAMES PCB Top View ⑦ ⑥ ⑤ ④ ③ ② ① Main Camera Top View ⑧ ⑨ * Models and their appearance are subject to change without any prior notice. ① 3-Pin terminal block connector ②... -
Page 7: Installation
PixelPro GXi Series ZN-PTZ202XE-XT Installation Guide 4. INSTALLATION 4.1. Installing the camera Unscrew the three screws on the camera’s main top, and detach the safety ring from the camera’s main top. 2) Twist the top counter-clockwise to open it from the camera's main body, and push the lever of the plastic cover under the camera’s main top outward. -
Page 8: Adjusting The Angle Of The Camera
PixelPro GXi Series ZN-PTZ202XE-XT Installation Guide 4.2. Adjusting the angle of the camera The device is 360° rotating camera and fully controlled by web user interface. Refer to the provided “PixelPro GXi series Web Page User's Manual” for more details. -
Page 9: Connections
PixelPro GXi Series ZN-PTZ202XE-XT Installation Guide 5. CONNECTIONS Top View ④ ② ③ ① ⑤ ⑥ * Models and their appearance are subject to change without any prior notice. ① Audio connection The camera provides a mono audio input and output. Due to low audio output power, an amplified speaker is recommended for enhanced sound (Refrain from connecting a headphone or an earphone directly to the camera). - Page 10 PixelPro GXi Series ZN-PTZ202XE-XT Installation Guide ③ Alarm(DO) connection Only the relay type is supported. Relay Rating: Max 30VDC/2A, 125VAC/0.5A, and 250VAC/0.25A. Name Descriptions Normal Close 1 COM1 Common 1 Normal Open 1 Normal Close 2 COM2 Common 2 Normal Open 2 Do not exceed the maximum relay rating.
- Page 11 PixelPro GXi Series ZN-PTZ202XE-XT Installation Guide ⑥ microSD slot Located on top of main device, next to 32-pin socket, a user must push the upper cover as inscribed arrow direction next to “OPEN” to open the case. Slide the microSD card into the opened cover with its gold contacts facing down.
-
Page 12: Configuration
PixelPro GXi Series ZN-PTZ202XE-XT Installation Guide 6. CONFIGURATION 6.1.Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. -
Page 13: Custom Ip Environment
PixelPro GXi Series ZN-PTZ202XE-XT Installation Guide 6.1.2. Custom IP Environment IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. -
Page 14: View Video On Web Page
PixelPro GXi Series ZN-PTZ202XE-XT Installation Guide 6.2. View video on web page Type the proper IP address to view the live streaming images through a web browser. The default username and password is root / pass. 6.2.1. ActiveX Installation When the browser asks to install the AxUMF software, click Install to proceed. -
Page 15: View Video Using Ipadmin Tool
PixelPro GXi Series ZN-PTZ202XE-XT Installation Guide 6.2.2. View video using IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. 1. From the IPAdminTool’s product list, select the device by highlighting it. -
Page 16: Reset
PixelPro GXi Series ZN-PTZ202XE-XT Installation Guide 6.3. Reset Perform the following procedures to reset your device: Press the Reset button for 2 seconds while the device is in use.. Wait for the system to reboot. Reset Button Location Please do not hold the reset button for more than 2 seconds. Otherwise, the camera may be switched to its Factory Default settings. -
Page 17: Safe Mode
PixelPro GXi Series ZN-PTZ202XE-XT Installation Guide 6.5. Safe Mode What is Safe Mode? Your IP camera or encoder could encounter an unexpected occasion such as broken firmware file or uncompleted loading of firmware file during system booting. To restore the device from the occasions, the device provides the emergency firmware as a factory default. - Page 18 PixelPro GXi Series ZN-PTZ202XE-XT Installation Guide There is another method to update firmware, which is using IPAdminTool. Please refer to ‘IPAdminTool User’s Manual.pdf’ for the detailed procedure. Note If your device is still at safe mode after trying to update firmware, please contact your local agency to get further assistance.
-
Page 19: Appendix (A): Specifications
PixelPro GXi Series ZN-PTZ202XE-XT Installation Guide APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor 1/3” 1080p CMOS CMOS Scanning system Progressive scanning Resolution 1920 x 1080 Min. Color: 1.5Lux(50 IRE) / 0.02Lux(Sens-up) ELECTRICAL Illumination B/W : 0.1Lux(50 IRE) / 0.001Lux(Sens-up) -
Page 20: Electrical Characteristics
PixelPro GXi Series ZN-PTZ202XE-XT Installation Guide Electrical Characteristics Power Source 24VAC ±10%, PoE+ (IEEE802.3at) Power Consumption Max. 44W @ 24VAC (Heater ON) Video Output 1 Vp-p, 75Ω, Composite Audio Input / Output Mic in, Line out Input voltage range: 0VDC minimum to 5VDC maximum, Max 50mA Relay Rating: Max 30VDC/2A, 125VAC/0.5A, and 250VAC/0.25A... -
Page 21: Appendix (B): Power Over Ethernet
PixelPro GXi Series ZN-PTZ202XE-XT Installation Guide APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables. -
Page 22: Appendix (C): Dimensions
PixelPro GXi Series ZN-PTZ202XE-XT Installation Guide APPENDIX (C): DIMENSIONS (Unit: mm) 03-2014-D... -
Page 23: Appendix (D): Hexadecimal-Decimal Conversion Table
PixelPro GXi Series ZN-PTZ202XE-XT Installation Guide APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. BA 186 BD 189 AA 170 AB 171 AD 173 DA 218... -
Page 24: Revision History
PixelPro GXi Series ZN-PTZ202XE-XT Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments 01A.00 12/06/2012 First release version 09-2013-A 09/04/2013 Minor updates 09-2013-B 09/26/2013 Added a caution for leak prevention on 4. Installation 01-2014-A 01/20/2014 Updated the instructions on 4.1. Installing the camera...
