ZN-DT350VE/ZN-DNT350VE/ZN-DWNT350VE

Quick Installation Guide

This manual has been designed to guide you through basic settings of your IP devices, such as installation and
configuration for using them.

Step1. . Assemble and install IP device

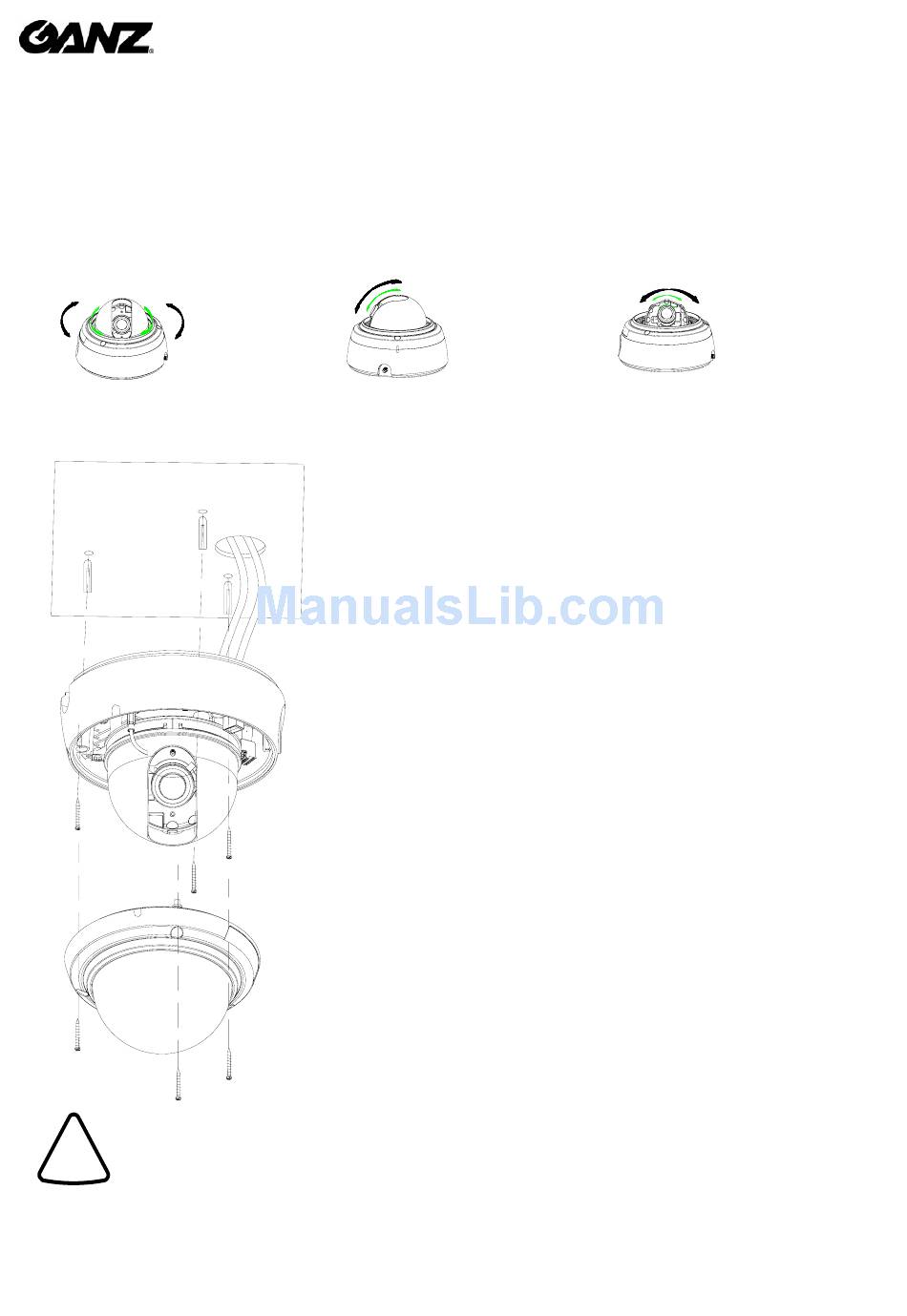

Manual adjustment for 3‐axis  movements


Before installation, make a manual adjustment on the inner liner. Perform 3‐axis movements manually by
turning the inner liner to different directions as above, and check if it moves properly.
When assembling the main body of the
!
fit each other into place.


camera
Caution
The

To prevent any accident, make sure the ceiling is firm and stable enough to support
camera
the

proceed with the installation.
2010/2‐1

 may fall off the ceiling even after the proper installation and mounting.
. If any reinforcement is needed, consult with your safety personnel and
  Connect  the  LAN  cable  and  power
1)
supply  cable  with  the  camera.  For  the
detailed  information,  please  refer  to
the Step2.


Place  the  installation  template
2)
(which  is  included  in  the  package)  on
the ceiling.


Drill three holes on the template and
3)
insert  anchor  blocks  into  the  holes.
Fasten the camera with screws.

Put  the  dome  cover  on  the  main
4)
body  of  the  camera.  Make  sure  the
main body and the cover fit each other
into place.

Fasten the cover with screws.
5)
camera
 and its dome cover, make sure they




Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZN-DT350VE and is the answer not in the manual?

Questions and answers

Summary of Contents for Ganz ZN-DT350VE

  • Page 1: Quick Installation Guide

      ZN-DT350VE/ZN-DNT350VE/ZN-DWNT350VE        Quick Installation Guide    This manual has been designed to guide you through basic settings of your IP devices, such as installation and  configuration for using them.    Step1. . Assemble and install IP device Manual adjustment for 3‐axis  movements         Before installation, make a manual adjustment on the inner liner. Perform 3‐axis movements manually by  turning the inner liner to different directions as above, and check if it moves properly.     Connect  the  LAN  cable  and  power  supply  cable  with  the  camera.  For  the  detailed  information,  please  refer  to ...
  • Page 2         Step2. Connect cables to IP device Connect each cable to the device. To see the correct positions of all connectors, refer to the following image  below. DC 12V  LAN  Reset Button  * Models herein and their appearance  are subject to change without any prior  notice.  Make sure the polarity is correct. Incorrect connection may  Power Adaptor Connector (DC 12V)  cause malfunction or damage to the IP device.    Caution     Step3. Set up network environment The  default  IP  address  of  your  IP  device  is  192.168.XXX.XXX.  You  can  find  the  available  IP  address  from  the  MAC ...
  • Page 3   STEP4. View video on web page View  the  live  video  on  a  web  page  using  your  IP  device  and  its  IP  address.  To  have  the  correct  IP  address  ready and use it on a web page:    Convert a MAC address to an IP address.  (The MAC address is attached on the side or bottom of the device.)    MAC address = 00‐1C‐B8‐C0‐14‐B1 → IP address = 192.168.20.177 the Hexadecimal number to Decimal number.     Open a web browser and enter the IP address of the device.  Click Continue to this website (not recommended) as below.  (The explanation and captured images at this manual are mainly on the basis of Internet Explorer 7.0) ...
  • Page 4     Wait for a few seconds while the web page loads. The live video is displayed as below.      If  the  live  video  is  not  displayed  and  “Can  not  Create  XMLDOMDocument  Install  MSXML4.0”  message is shown as below, please download and Install from the link below.  http://www.microsoft.com/downloads/details.aspx?familyid=3144B72B‐B4F2‐46DA‐B4B6‐ C5D7485F2B42&displaylang=en  (VCA Library requires MS XML 4.0 library which is an xml parser made by Microsoft.)        2010/2‐1  4 ...
  • Page 5   Step5. Setting IP Address To set up the Network configuration:      Click Setup on the upper right of the web page. The login page is displayed as below.  Enter the default user name (root) and the default password (pass), and then select OK.    The default username  and password are:  root and pass.      Click System Options, and then select TCP/IP from the drop‐down menu.    To change the IP address, please make sure to check and have the correct Subnet mask and Gateway ready. To  use DHCP, select Obtain an IP address via DHCP.     To learn how to set up the web page for advanced configuration, refer to the Web Page User's Manual, which  is available on the SDK at the following path.   {SDK root}\DOC\ 2010/2‐1  5 ...
  • Page 6: Resetting To The Factory Default Settings

      Advanced setup (ZNS-GIT IPAdminTool) ZNS‐GIT IPAdminTool is a utility program for IP products. Following list shows a part of features that ZNS‐GIT  IPAdminTool provides.  Configure IP address, Subnet mask and Gateway  Shows network related information such as MAC address  Updates firmware   Reboots the device  ZNS‐GIT IPAdminTool is provided with SDK at the following SDK path.  {SDK root}\BIN\TOOLS\AdminTool\ Rebooting Reset can be carried out as follows:  1. While the device is in use, press and hold the Reset.   2. Release the Reset button after 3 seconds.   3. Wait for the system to reboot.  Resetting to the Factory Default Settings This will reset all parameters, including the IP address, to the Factory Default initialization.   To perform the Factory Default settings:  1. Disconnect the power supply from the device.   2. Connect the power to the device with the Reset button pressed and held.   3. Release the Reset button after 5 seconds.  4. Wait for the system to reboot.      More Information To learn more about using other features of your devices, refer to the manual, which is available on the SDK at ...
