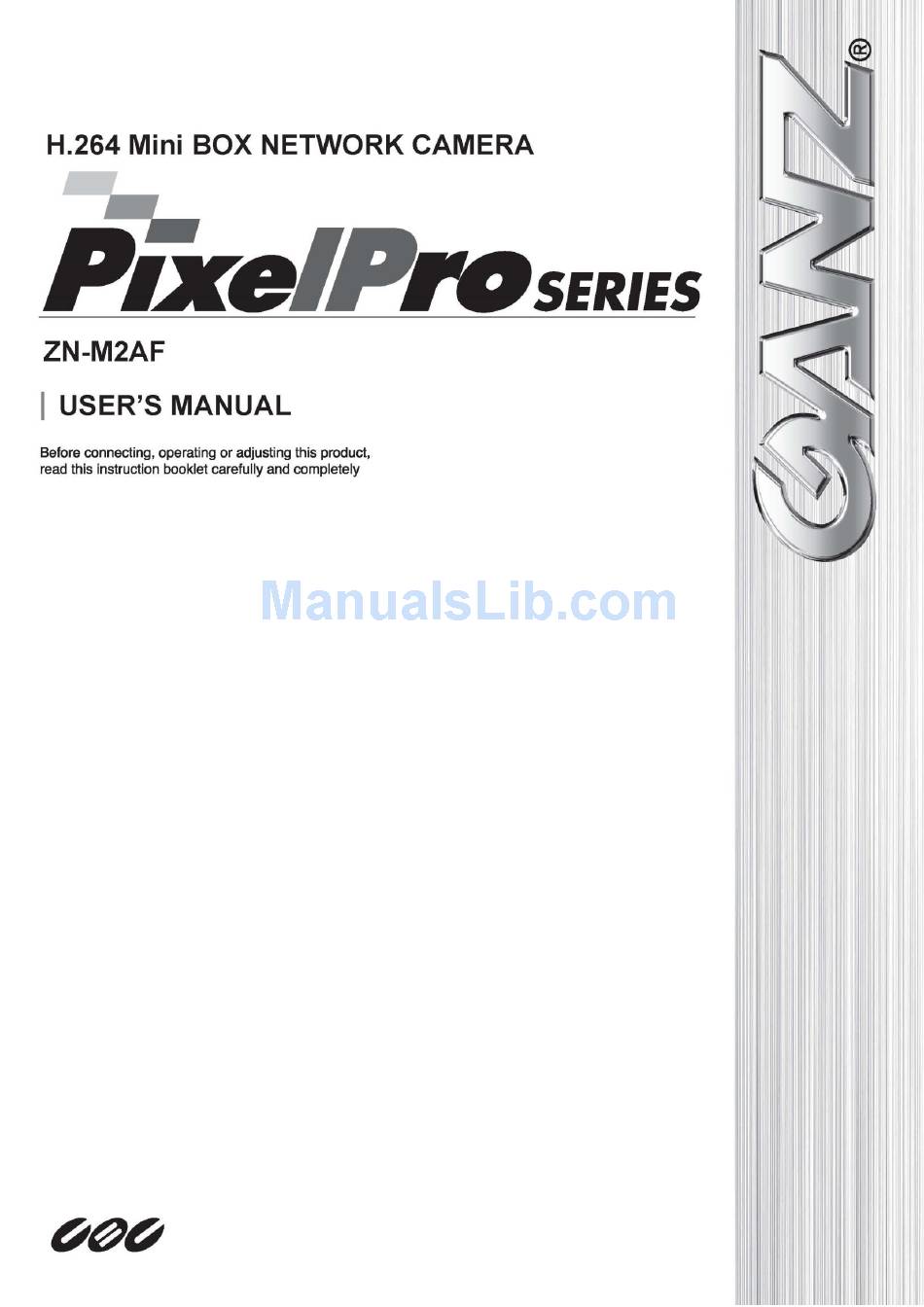

ZN-M2AF User's Manual
PixelPro Series
0
10-2014-A

Advertisement

Table of Contents
loading

Related Manuals for Ganz zn-m2af

Summary of Contents for Ganz zn-m2af

  • Page 1 ZN-M2AF User’s Manual PixelPro Series 10-2014-A...

  • Page 2: Safety Instructions

    ZN-M2AF User’s Manual PixelPro Series SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with a dry cloth. 7) Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.
  • Page 3 ZN-M2AF User’s Manual PixelPro Series Caution: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock does not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

  • Page 4: Table Of Contents

    ZN-M2AF User’s Manual PixelPro Series Contents 1. PRODUCT FEATURES ..........................5 2. INSTALLATION ............................6 ............................6 2.1 I NSTALL CAMERA 3. ACCESSING THE CAMERA ........................7 .......................... 7 3.1 A CCESS FROM A BROWSER 3.2 A ................... 8 CCESSING THE CAMERA FROM THE NTERNET ........................
  • Page 5 ZN-M2AF User’s Manual PixelPro Series 12. DIMENSIONS ............................35 13. SPECIFICATIONS ..........................36 10-2014-A...

  • Page 6: Product Features

    PixelPro Series 1. Product Features The GANZ PixelPro Series (ZN-M2AF) is a high performance H.264 network camera, designed for demanding security installations. It delivers crisp, clear images, disclosing every detail, thanks to its top quality Megapixel progressive CMOS sensor and advanced image processing.

  • Page 7: Installation

    ZN-M2AF User’s Manual PixelPro Series 1. Network (RJ-45 PoE required) The ZN-M2AF connects to the network via a standard network cable, and automatically detects the speed of the local network segment (10BaseT/100BaseTX Ethernet). This socket must be used to power the ZN-M2AF via Power over Ethernet (PoE).

  • Page 8: Accessing The Camera

    PixelPro Series 3. Accessing the Camera Follow the instructions in the GANZ PixelPro Installation Guide to install the camera. The GANZ PixelPro could be accessed with most standard operating systems and browsers. The recommended browser is Internet Explorer for Windows with other operating systems.

  • Page 9: Accessing The Camera From The Internet

    ZN-M2AF User’s Manual PixelPro Series 3.2 Accessing the camera from the Internet Once installed, the camera is accessible on the local network (LAN). Configure the router/firewall to allow incoming data traffic to access the camera from the Internet. For security reasons this is usually done on a specific port. Please refer to the documentation for router/firewall for further instructions.

  • Page 10: The Live View Page

    ZN-M2AF User’s Manual PixelPro Series 3.4 The Live View page Digital Zoom Snap Shot Full Screen Video Stream change: First stream  Second stream Play: Click this button by manually to start the stream Stop: Click this button by manually to stop streaming NOTE: It is possible that not all the buttons described below will be visible unless the Live View page has been customized to display them.

  • Page 11: Video Stream Types

    ZN-M2AF User’s Manual PixelPro Series 3.5 Video stream types H.264 protocols and communication methods • RTP (Real-time Transport Protocol) is a protocol that allows programs to manage the real-time transmission of multimedia data, via unicast or multicast. • RTSP (Real Time Streaming Protocol) serves as a control protocol, to negotiate the type of transport protocol to use for the stream.

  • Page 12: The Setup

    RTSP traffic. 4. The Setup The GANZ PixelPro is configured from the Setup link, which is available on the top left hand side in the web interface. This configuration could be done by: •...

  • Page 13: Analog Output

    ZN-M2AF User’s Manual PixelPro Series 5. Analog output Toggle menu changed to “ON/OFF” from FW1558 and later. 5.1 Analog Output Setup Toggle the Analog video output to “ON/OFF” from BNC output of the camera. Analog output allows selection of Video output format from BNC output of the camera.
  • Page 14 1 Mbit/s. The H.264 standard provides scope for a large range of different coding tools for use by various applications in different situations, and the GANZ PixelPro provides certain subsets of these tools.
  • Page 15 Video Mirroring mode can be set to None, Horizontal, Vertical or Flip (H+V). Bandwidth Limit Limit the bandwidth that the GANZ PixelPro can use during a network connection. Max Bandwidth Specify the maximum bandwidth that the GANZ PixelPro can use during a network connection.

  • Page 16: Camera

    ZN-M2AF User’s Manual PixelPro Series 6.2 Camera This section allows you to adjust various camera settings. 6.2.1 Exposure Control Exposure Mode Auto: Use this settings for automatic exposure control. Manual: Use these settings to control camera exposure manually. Auto (Motion Priority): Use this settings to be improved blurred images of the moving objects under low light conditions.

  • Page 17: Day & Night Control

    ZN-M2AF User’s Manual PixelPro Series Max Shutter Speed Slowest shutter speed can be selected from the menu. *This function is available from FW1558 and later. Anti-Flicker Mode (Flicker less mode) Anti-Flicker Mode can be set to 60Hz, 50Hz or OFF.

  • Page 18: White Balance Control

    The White balance adjustment setting is used to make the colors in the image appear consistent, compensating for the different colors present in different light sources. The GANZ PixelPro camera can be set to automatically identify the light source and compensate for its color temperature.

  • Page 19: Live

    7. Live 7.1 Setup The GANZ PixelPro could support 10 simultaneous users. In case of multicast, the GANZ PixelPro could support unlimited number of users. If supported on the network, consider using multicasting, as the bandwidth consumption will be much lower.

  • Page 20: Privacy Masking

    ZN-M2AF User’s Manual PixelPro Series 7.2 Privacy Masking This uses masking to hide sections that you do not want to appear in the shooting screen. Maximum 2 locations can be hidden with color. Mask Area All View：Shows the masking area both Area 1 and 2.

  • Page 21: Ftp

    ZN-M2AF User’s Manual PixelPro Series 8. FTP 8.1 FTP > Config Server Configuration (This function is N/A on this model) External Server Configuration It is setting page to transmit the still shot to remote sites, using the FTP server. Specify the external FTP server information such as IP address, port number, Username and password.

  • Page 22: Ftp > Periodical

    ZN-M2AF User’s Manual PixelPro Series Event FTP Sending It enables FTP transmission triggered by event. Directory : This folder will be created into external FTP server automatically. File Prefix : The file name will start from this prefix. Mapping : You can specify event mapping for Event FTP.

  • Page 23: Event

    ZN-M2AF User’s Manual PixelPro Series 9. Event 9.1 Event > Motion Motion Detection Motion detection is used to generate an alarm event with analyzes the video whenever objects movements occurs in the video image. Maximum 4 windows can be configured.

  • Page 24: Event > Tamper Detection

    ZN-M2AF User’s Manual PixelPro Series 9.2 Event > Tamper Detection Tamper Detection Camera detects the tampering with analyzes the video image. When the camera angle is moved, covered or sprayed to the Lens, defocusing severely, it can be triggered to an alarm event.

  • Page 25: Network

    Click the Setup > Network > IP Setup to see the current network settings. IP Address Configuration - The GANZ PixelPro supports both IP version 4 and IP version 6 (IPv6 will be supported in V3.00). Both versions may be enabled simultaneously, and at least one version should be always enabled.
  • Page 26 ZN-M2AF User’s Manual PixelPro Series How to assign IP address Default setting is set to “DHCP” and “UPnP” function is set to ON. If your network has DHCP server and UPnP function is enabled on your PC, you can find the network camera in “My network”.

  • Page 27: Network > Service Port

    ZN-M2AF User’s Manual PixelPro Series 10.2 Network > Service Port Service Port HTTP port- The default HTTP port number (80) could be changed to any port within the range 1-65535. This is useful for simple port mapping. RTSP port- The RTSP protocol allows a connecting client to start an H.264 stream. Enter the RTSP port number to use.

  • Page 28: Network > E-Mail

    ZN-M2AF User’s Manual PixelPro Series 10.4 Network > E-mail You must turn Notification to ‘On’ and then enter the host names or addresses for your mail servers in the fields provided, to enable the sending of event and error email messages from the camera to predefined addresses via SMTP.

  • Page 29: Network > Ddns

    ZN-M2AF User’s Manual PixelPro Series 10.5 Network > DDNS How to setup the DDNS: 1) DDNS set to ON. “Mac address.dvrlink.net” is registered to the DDNS server. User can connect to the camera with: “http://mac address.dvrlink.net”. 2) DDNS set to ON and user inputs “user-defined name”.

  • Page 30: Network > Upnp

    ZN-M2AF User’s Manual PixelPro Series 10.6 Network > UPnP Universal Plug & Play (UPnP) allows you to find the IP camera automatically on your network. In order to be able to detect the camera automatically, you must enable the UPnP function on both the camera and on your PC.

  • Page 31: System

    ZN-M2AF User’s Manual PixelPro Series Select “Network Services” and click “Details”. Then select “UPnP user Interface” 11. System 11.1 System > User Access the camera and the Configure Root Password dialog appears. Enter the User name: ADMIN and password is 1234.

  • Page 32: System > Date & Time

    ZN-M2AF User’s Manual PixelPro Series 11.2 System > Date & Time Date & Time Format - specify the formats for the date and time (12h or 24h) displayed in the Live View video streams. Use the predefined formats or use your own custom date and time formats.

  • Page 33: System > Maintenance

    ZN-M2AF User’s Manual PixelPro Series 11.3 System > Maintenance System Name Choose a system name to identify the camera when using e-mail notifications. System Reboot Reboot the camera. Factory Default To reset the camera settings to the original factory default settings.
  • Page 34 ZN-M2AF User’s Manual PixelPro Series 3) When Firmware upgrade menu is displayed, browse to the desired firmware file on your computer. Click OK. NOTE: Do not disconnect power to the unit during the upgrade. The unit will restart automatically after the upgrade has completed. (1~5 minutes) System Reset (Factory Default Reset) There are two ways to reset the camera back to factory default.

  • Page 35: System > Information

    ZN-M2AF User’s Manual PixelPro Series 11.4 System > Information System Information You can confirm the system information about the camera here. 10-2014-A...
  • Page 36 ZN-M2AF User’s Manual PixelPro Series 12. Dimensions 10-2014-A...

  • Page 37: Specifications

    ZN-M2AF User’s Manual PixelPro Series 13. Specifications H.264 / MJPEG Network Camera Dual Stream Motion Triggered Alarm Multi Language GUI support ONVIF Compliant 1/2.8" Sony IMX036 CMOS Sensor On The Fly supported @ GOP/Bitrate/FPS stetting Product Features 2D DNR. (Depends on CODEC configuration)
  • Page 38 ZN-M2AF User’s Manual PixelPro Series Network 10BASE-T, 100BASE-TX, RJ45 H.264 Image Compression MJPEG : Image quality: 100 Steps(Q value) 1920 x 1080(Full HD), 1280 x 1024(SXGA), 1024x768(XGA), 1280 x 720(720p) Resolution 640 x 480(VGA), 640 x 360(HVGAW), 320 x 240(QVGA)
  • Page 39 ZN-M2AF User’s Manual PixelPro Series 10-2014-A...
  • Page 40 ZN-M2AF User’s Manual PixelPro Series 10-2014-A...
  • Page 41 ZN-M2AF User’s Manual PixelPro Series 10-2014-A...
  • Page 42 ZN-M2AF User’s Manual PixelPro Series 10-2014-A...
  • Page 43 ZN-M2AF User’s Manual PixelPro Series Revision History REV# DATE(M/D/Y) Comments 06-2014-A 06/17/2014 Revised all the pages Added Specifications Modified to True Day & Night 10-2014-A 10/30/2014 Additions and revisions for new FW(1558). Minor update on some pages. 10-2014-A...
