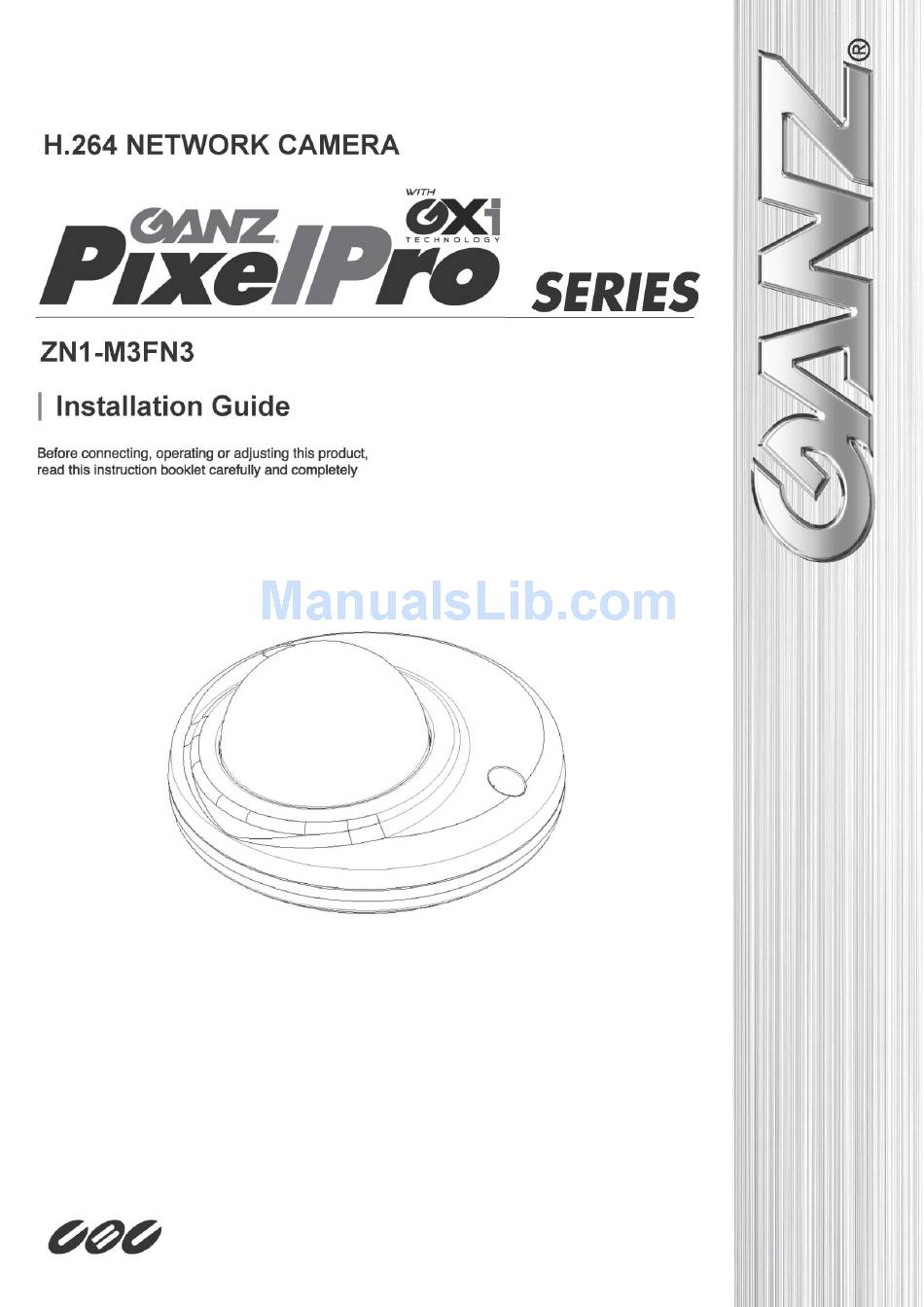

- Page 1 PixelPro GXi Series ZN1-M3FN3 Installation Guide 03-2014-A...
-
Page 2: Precaution
PixelPro GXi Series ZN1-M3FN3 Installation Guide Precaution Please read this manual carefully before installing the unit. Never disassemble the camera. Unauthorized disassembly may cause equipment failure or damage to the unit. Please do not install the camera in a place exposed to direct sunlight. -
Page 3: Table Of Contents
PixelPro GXi Series ZN1-M3FN3 Installation Guide Table of Contents Precaution ........................ 2 1. FEATURES ......................4 2. PACKAGE CONTENTS..................... 5 3. PART NAMES ......................6 4. INSTALLATION ...................... 7 4.1. Installing the camera ......................7 4.2. Adjusting the angle of camera ................... 9 4.3. -
Page 4: Features
PixelPro GXi Series ZN1-M3FN3 Installation Guide 1. FEATURES Camera 1/4” 720p CMOS Image Sensor Digital Day/Night Vandal Proof (IK09) Video H.264 Baseline, Main, High profile(MPEG-4 Part 10/AVC), MJPEG(Motion JPEG) Max 30fps in 720p ... -
Page 5: Package Contents
PixelPro GXi Series ZN1-M3FN3 Installation Guide 2. PACKAGE CONTENTS Please unpack the package carefully and handle the equipment with care. The package contains: Camera Screws and anchor blocks Quick Installation Guide Hex Wrench Driver White Plug Installation Template The contents above are subject to change without prior notice. -
Page 6: Part Names
PixelPro GXi Series ZN1-M3FN3 Installation Guide 3. PART NAMES * Models herein and their appearance are subject to change without any prior notice. ① LAN connector RJ45 LAN connector for 10/100 Base-T Ethernet (PoE supported). ② Reset button Use the button to restart the device or to reset it to Factory Default. -
Page 7: Installation
PixelPro GXi Series ZN1-M3FN3 Installation Guide 4. INSTALLATION 4.1. Installing the camera 1) Place the installation template (outline shown on the next page) included in the package on the desired installation surface. 2) Drill holes in correct positions based on the template paper, and insert anchor blocks into the holes. - Page 8 PixelPro GXi Series ZN1-M3FN3 Installation Guide Installation Template (Unit: mm) Installation template’s image size scale in this installation guide is not 1:1. The correct-size template design paper can be found inside the package Caution separately. 03-2014-A...
-
Page 9: Adjusting The Angle Of Camera
PixelPro GXi Series ZN1-M3FN3 Installation Guide 4.2. Adjusting the angle of camera B. To pan, rotate the lower C. Rotate the lens A. To tilt, tilt the lens by vertically body of the camera gimbal. with upper lens shell adjusting the camera gimbal. -
Page 10: Setting The Image Attribute
PixelPro GXi Series ZN1-M3FN3 Installation Guide 4.3. Setting the Image Attribute Through the camera’s webpage, users can configure image settings. The menu of image attribute is available under Video Appearance menu in Setup > Video & Audio > Camera. The following features can be adjusted: Brightness, Contrast, Saturation, Sharpness and Orientation. -
Page 11: Connections
PixelPro GXi Series ZN1-M3FN3 Installation Guide 5. CONNECTIONS LAN connection This is RJ45 LAN connector for 10/100 Base-T Ethernet and PoE. Use the Ethernet cable (RJ45) to power the device, and connect the device to a hub or a router in the network. Refer to “Appendix (B) Power over Ethernet”... -
Page 12: Configuration
PixelPro GXi Series ZN1-M3FN3 Installation Guide 6. CONFIGURATION 6.1. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. -
Page 13: Custom Ip Environment
PixelPro GXi Series ZN1-M3FN3 Installation Guide 6.1.2. Custom IP Environment IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. -
Page 14: View Video On Web Page
PixelPro GXi Series ZN1-M3FN3 Installation Guide 6.2. View video on web page Type the proper IP address to view the live streaming images through a web browser. The default username and password is root / pass. 6.2.1. ActiveX Installation When the browser asks to install the AxUMF software, click “Install” to proceed. -
Page 15: View Video Using Ipadmin Tool
PixelPro GXi Series ZN1-M3FN3 Installation Guide 6.2.2. View video using IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. 1. From the IPAdminTool’s product list, select the device by highlighting it. -
Page 16: Reset
PixelPro GXi Series ZN1-M3FN3 Installation Guide 6.3. Reset Perform the following procedures to rest your device: Press the reset button for 2 seconds while the device is in use. Wait for the system to reboot. Please do not hold for more than 2 seconds. Otherwise, the camera may be switched to its Factory Default settings. -
Page 17: Safe Mode
PixelPro GXi Series ZN1-M3FN3 Installation Guide 6.5. Safe Mode What is Safe Mode? Your IP camera or encoder could encounter an unexpected occasion such as broken firmware file or uncompleted loading of firmware file during system booting. To restore the device from the occasions, the device provides the emergency firmware as a factory default. - Page 18 PixelPro GXi Series ZN1-M3FN3 Installation Guide There is another method to update firmware, which is using IPAdminTool. Please refer to ‘IPAdminTool User’s Manual.pdf’ for the detailed procedure. Note If your device is still at safe mode after trying to update firmware, please contact your local agency to get further assistance.
-
Page 19: Appendix (A): Specifications
PixelPro GXi Series ZN1-M3FN3 Installation Guide APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor 1/4” 720p CMOS CMOS Effective Pixels 1280 x 720 Scanning system Progressive scanning Resolution 1280 x 720 Min. Color: 1.0Lux ELECTRICAL Illumination B/W : 0.001 Lux (DSS ON) -
Page 20: Electrical Characteristics
PixelPro GXi Series ZN1-M3FN3 Installation Guide Electrical Characteristics Power Source PoE IEEE802.3af Power Consumption 2.4W @ PoE Video Output Audio Input Audio Output Environment Condition Operating Range Operating Temperature PoE : 0 ˚C ~ 40 ˚C (32˚F ~ 104˚F) Operating Humidity... -
Page 21: Appendix (B): Power Over Ethernet
PixelPro GXi Series ZN1-M3FN3 Installation Guide APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables. -
Page 22: Appendix (C): Dimensions
PixelPro GXi Series ZN1-M3FN3 Installation Guide APPENDIX (C): DIMENSIONS (Unit: mm) 03-2014-A... -
Page 23: Appendix (D): Hexadecimal-Decimal Conversion Table
PixelPro GXi Series ZN1-M3FN3 Installation Guide APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when converting the MAC address of the device to the IP address. Hex Dec 03-2014-A... -
Page 24: Revision History
PixelPro GXi Series ZN1-M3FN3 Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments 01A.01 07/05/2013 First release version 09-2013-A 09/04/2013 Minor updates 03-2014-A 03/31/2014 Correct explanation for PoE 03-2014-A...
