Summary of Contents for Ganz ZN-PT series
-

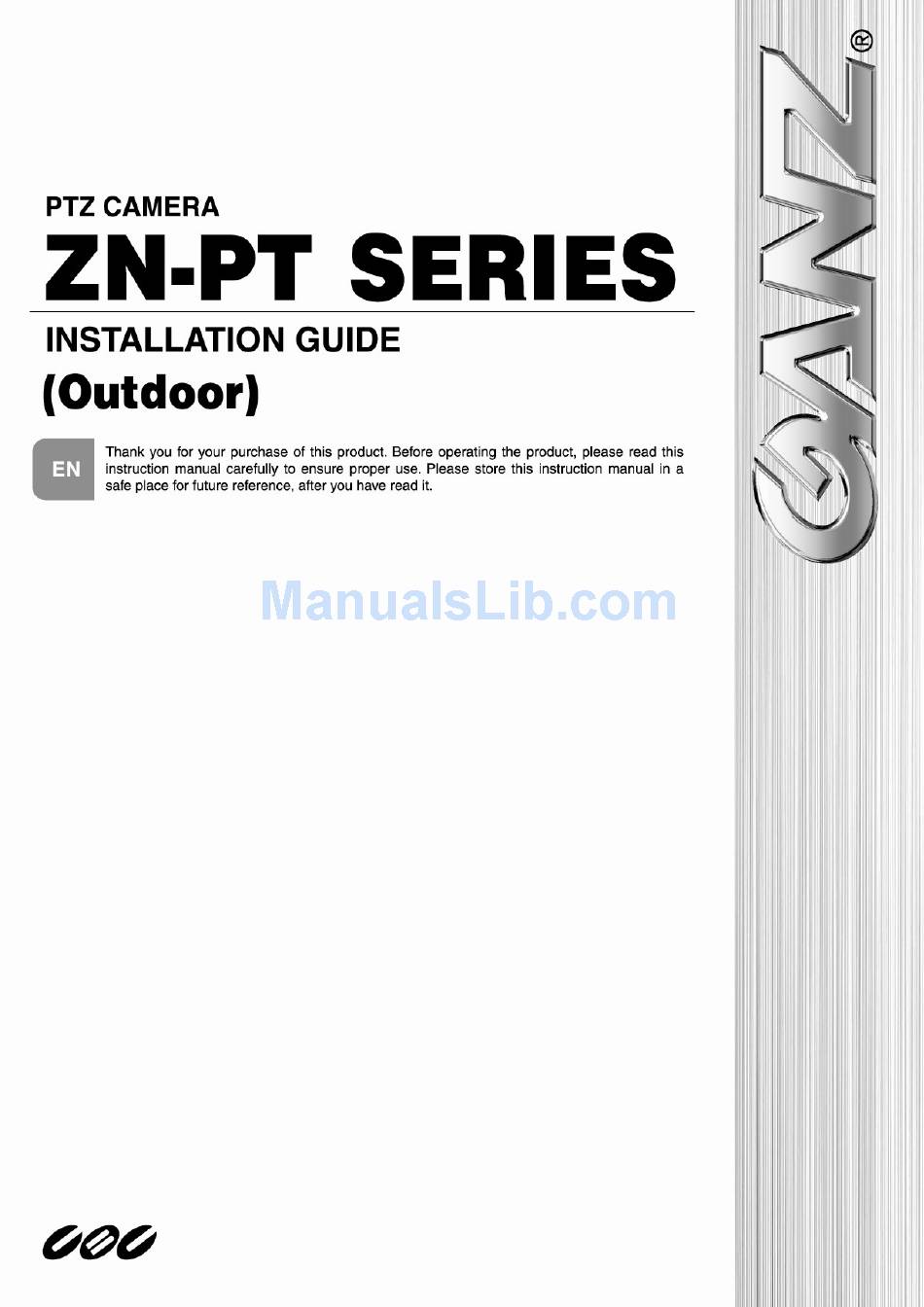

Page 1: Installation Guide
Integrated High Speed Dome Camera Outdoor Installation Guide Version 3.6... - Page 3 Preface Information given in this manual was current when published. The company reserves the right to revise and improve its products. All specifications are subject to change without notice. Notice This manual provides installation information for the outdoor Integrated High Speed Dome Camera.
- Page 4 Installation Guide This symbol on the product or on its packaging indicates that this product shall not be treated as household waste in accordance with Directive 2002/96/EC. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
-
Page 5: Warnings And Cautions
Installation Guide Warnings and Cautions • Handle the camera carefully Do not abuse the camera. Avoid striking, shaking, etc. The camera could be damaged by improper handing or storage. • Installing electricity wiring carefully Ask qualified personnel of electrical wiring for the installation. Please note that input electricity to the unit is at tolerance of DC 12V/AC 24V ±... -
Page 6: Table Of Contents
Installation Guide Table of Contents Introduction........................1 Standard Package Contents ..................2 Camera Setups and Cable Connections ..............3 Preparations for Dome Camera Setups ..............3 Dome Camera Setups ....................5 3.2.1 Switch/Connector Definition ................. 5 Cables and Connections..................... 6 3.3.1 Cable Requirements..................6 3.3.2 22-Pin Data Cable .................. -
Page 7: Introduction
Installation Guide Introduction With weather resistant feature, the Integrated High Speed Dome Camera is applicable to outdoor installation. The network Speed Dome Camera transmits digital video and audio data using wire connection. Live video can be monitored and recorded from window-based computer via network. The video encoder supports real-time Main Profile H.264 D1 resolution which compresses the image size up to 40% off. -
Page 8: Standard Package Contents
Installation Guide Standard Package Contents Before proceeding, please check the box contains the items listed here. If any item is missing or has defects, DO NOT install or operate the product and contact your dealer for assistance. Dome Camera with Data Cable for Power Supply, Video, Audio and Alarm Outdoor Mount Kit (AC 24V) -
Page 9: Camera Setups And Cable Connections
Installation Guide Camera Setups and Cable Connections Before installing or connecting the Dome Camera, please refer to this section and complete preparations for Dome Camera setups and various switch settings. Preparations for Dome Camera Setups The following installation procedure is for the outdoor Dome Camera that is supplied with the sunshield housing. - Page 10 Installation Guide STEP 4 Attach the dome cover to the camera body. Before doing that, apply some lubricant on the cover’s water-proof rubber to make the installation process smoother. Note that the tiny protrusion on the cover must align with one of the four holes on the camera body.
-
Page 11: Dome Camera Setups
Installation Guide Dome Camera Setups Before connecting the Dome Camera to other devices of CCTV system, please complete the Dome Camera’s ID and communication switch settings. These switches are located on the bottom of the Dome Camera. 3.2.1 Switch/Connector Definition Please refer to the diagrams and tables accompanied with for use of each switch/connector. -
Page 12: Cables And Connections
Installation Guide Cables and Connections The Dome Camera is supplied with one integrated 22-pin Data Cable for connecting with the power, video, and RS-485/audio input & audio output cables. Please read the following sections thoroughly before making connections. 3.3.1 Cable Requirements For operation, the Integrated High Speed Dome Cameras require video and power cables as described below: •... -
Page 13: 22-Pin Connector Definition
Installation Guide 3.3.3 22-Pin Connector Definition With the 22-pin connector, installers can simply connect the power, video and RS-485 cables to the Dome Camera at once. Particularly, the alarm pins are serviceable for connecting alarm input and output devices, such as alarm sensors, sirens or flashing lights with the surveillance system. -
Page 14: Cable Wiring And Connection
Installation Guide 3.3.5 Cable Wiring and Connection Users may need to conduct cable wiring when: (1) Connecting self-provided cords to the connector housing instead of using the equipped Data Cable or (2) Connecting alarm input and output devices. The table follows will illustrate the way to wire cords into the connector housing. -
Page 15: Ethernet Cable Connection
Installation Guide 3.3.6 Ethernet Cable Connection Connect one end of the CAT 5 Ethernet cable to the RJ-45 connector of the network Speed Dome Camera, and the other end of the cable to the network switch or PC. NOTE: In some cases, you may need use an Ethernet crossover cable when connecting the network Speed Dome Camera directly to the PC. -
Page 16: Dome Camera Installation
Installation Guide Dome Camera Installation Basing on user’s installation environments, the Dome Camera can be installed on ceiling, on wall or on pole. In the following section, various Dome Camera’s installation accessories, installation methods and installation procedures will be described in detail. In addition, the next section will provide the Dome Camera’s dimensions for your reference before installation. -
Page 17: Optional Accessories
Installation Guide Optional Accessories Dome Camera Accessories Sunshield Height: 129.5 mm (5.05 inches); Diameter: 190 mm (7.48 inches); 0.15 kg (0.33 lbs) Vandal Proof/ Smoke Cover Diameter: 147 mm (5.8 inches) Vandal Proof Cover Smoke Cover Security Screw Set (equipped with Vandal Proof Cover) Power Adapter ZCA-100-3.0A (Input: 100~115VAC/Output: 24VAC 72VA) ZCA-220-3.0A (Input: 220~230VAC/Output: 24VAC 72VA) - Page 18 Installation Guide Mounting Accessories Standard Pendent Mount White; 348×104×138.6 mm (13.7×4.1×5.5 inches); 1.5 kg (3.3 lbs); Diameter: 45 mm (1.8 inches). Supplied with M8x12 screw x1, spring washer-8 x1, pendent tube washer x1, rubber washer-8 x1 and sponge x2. Compact Pendent Mount 184×104×115.2 mm (7.24×4.09×4.54 inches);...
- Page 19 Installation Guide Swan Tube For mounting with Swan Tube. White; Iron, Dimension: 835 x 300 mm (32.9×11.8 inches); Diameter: 45 mm (1.8 inches); Weight: 3.8 kg (8.4 lbs); Supplied with pendent tube washer x1, rubber washer-8 x1, waterproof rubber x1, spring washer-8 x1 and M8x12 screw x1. Corner Plate Mini For mounting with Corner Pendent Mount.
- Page 20 Installation Guide Pole Thin Direct Mounting 232(L)×136(W)×60(D) mm (9.1×5.4×2.4 inches); Diameter: 112~140 mm (4.4~5.5 inches); 0.7 kg (1.6 lbs). Supplied with stainless steel straps x4, M8x16 screw x4, washer x4 and spring washer-8 x4. Pole Wide Direct Mounting 270(L)×170(W)×60(D) mm (10.6×6.7×2.4 inches); Diameter: 112~130 mm (4.4~5 inches);...
- Page 21 Installation Guide Corner Wide Box Mounting 232(L)×234(W)×210(D) mm (9.1×9.2×8.3 inches); 2.7 kg (6 lbs); Supplied with M8x16 screw x4, washer-8 x4, and spring washer-8 x4. Power Box can be set inside the wide box. Pole Thin Box Mounting 291(L)×136(W)×242 (D) mm (11.5×5.4×9.5 inches); 3.1 kg (6.9 lbs); Supplied with M8x16 screw x4, washer-8 x4, spring washer x4 and stainless steel straps x4.
- Page 22 Installation Guide Wall Box Mounting 270(L)×166(W)×95(D) (10.6×6.5×3.7 inches); 2.2 kg (4.84 lbs); Supplied with M8x16 screw x4, washer-8 x4 and spring washer-8 x4. Power Box can be set inside the wall box. Stainless Steel Straps For fixing Pole Direct Mounting/Pole Box on the pole. Length: 700 mm (27.5 inches);...
-
Page 23: Ceiling Mounting With Straight Tube
Installation Guide Ceiling Mounting with Straight Tube The Straight Tube is available in different length: 25 cm and 30 cm. Package Contents: • M8x12 Screw x1 • Spring Washer-8 x1 • Pendant Tube Washer x1 • Rubber Washer-8 x1 • Waterproof Rubber x1 Items Needed: •... - Page 24 Installation Guide 6) Thread the cable(s) through the Outdoor Mount Kit and join the Outdoor Mount Kit to the Straight Tube with the supplied screws and washers. Then adjust the Waterproof Rubber to the joint. 7) Connect the cable(s) to the Dome Camera. 8) Join the Dome Camera to the Outdoor Mount Kit with the supplied M5 screw and washers.
-
Page 25: Wall Mount
Installation Guide Wall Mount 4.4.1 Swan Tube Package Contents: • M8x12 Screw x1 • Spring Washer-8 x1 • Pendent Tube Washer x1 • Rubber Washer-8 x1 • Waterproof Rubber x1 Items Needed: • Dome Camera • Swan Tube and other equipped items (optional accessory) •... -
Page 26: Compact Pendent Mount
Installation Guide Wall Mount: Swan Tube + Indoor Mounting Kit 4.4.2 Compact Pendent Mount Package Contents: • Rubber Washer-8 x1 • Pendant Tube Washer x1 • Spring Washer-8 x1 • M8x12 Screw x1 Items Needed: • Dome Camera • Outdoor Mount Kit (supplied) •... - Page 27 Installation Guide Tools Needed: • Tool for drilling • Tool for screwing Follow the steps below to mount the Dome Camera with the Compact Pendent Mount. 1) Make a cable entry hole on the wall to recess the cables. Otherwise, users could push up the Cable Entry Board on the Compact Pendent Mount’s Mounting Plate to place the cables, as shown in the photo below.
-
Page 28: Standard Pendent Mount
Installation Guide 6) Connect the cable(s) to the Dome Camera. 7) Join the Dome Camera to the Outdoor Mount Kit with the supplied M5 screw and washers. Wall Mounting: Compact Pendent Mount + Outdoor Mount Kit 4.4.3 Standard Pendent Mount Package Contents: •... - Page 29 Installation Guide Tools Needed: • Tool for drilling • Tool for screwing Follow the steps below to mount the Dome Camera with the Standard Pendent Mount. 1) Make a cable entry hole on the wall to recess the cables. Otherwise, users could push up the cable entry board on the Standard Pendent Mount’s mounting plate to place the cables (see the illustration in section 4.4.2 Compact Pendent Mount >...
-
Page 30: Wall Box Mounting
Installation Guide 4.4.4 Wall Box Mounting Package Contents: • M8x16 Screw x4 • Washer-8 x4 • Spring Washer-8 x4 Items Needed: • Dome Camera • Outdoor Mount Kit (supplied) • Data Cable (supplied) • Ethernet Cable (network Speed Dome Camera) •... - Page 31 Installation Guide 4) Attach the Waterproof Rubber to the Standard/ Compact Pendent Mount. 5) Thread the cable(s) through the Outdoor Mount Kit and join the Outdoor Mount Kit to the Standard/ Compact Pendent Mount with the supplied screws and washers. Then adjust the Waterproof Rubber to the joint. 6) Connect the cable(s) to the Dome Camera.
-
Page 32: Corner Mount
Installation Guide Corner Mount 4.5.1 Corner Standard Mounting Plate/Corner Plate Mini Package Contents: • Washer-8 x4 • Spring Washer-8 x4 • M8x16 Screw x4 • M8 Nut x4 Items Needed: • Dome Camera • Outdoor Mount Kit (supplied) • Data Cable (supplied) •... - Page 33 Installation Guide NOTE: Please block the cable entry hole with the supplied sponge to avoid insects entering the Pendent Mount. See the illustrations in section 4.4.2 Compact Pendent Mount > Step 4. 4) Attach the Waterproof Rubber to the Standard/ Compact Pendent Mount. 5) Thread the cable(s) through the Outdoor Mount Kit and join the Outdoor Mount Kit to the Standard/ Compact Pendent Mount with the supplied screws and washers.
-
Page 34: Corner Thin/Wide Box Mounting
Installation Guide 4.5.2 Corner Thin/Wide Box Mounting Package Contents: • M8x16 Screw x4 • Washer-8 x4 • Spring Washer-8 x4 Items Needed: • Dome Camera • Outdoor Mount Kit (supplied) • Data Cable (supplied) • Ethernet Cable (network Speed Dome Camera) •... - Page 35 Installation Guide 4) Attach the Waterproof Rubber to the Standard/ Compact Pendent Mount. 5) Thread the cable(s) through the Outdoor Mount Kit and join the Outdoor Mount Kit to the Standard/ Compact Pendent Mount with the supplied screws and washers. Then adjust the Waterproof Rubber to the joint. 6) Connect the cable(s) to the Dome Camera.
-
Page 36: Pole Mount
Installation Guide Pole Mount 4.6.1 Pole Thin/Wide Direct Mounting Package Contents: • Stainless Steel Straps x4 • M8x16 Screw x4 • Washer x4 • Spring Washer-8 x4 Items Needed: • Dome Camera • Outdoor Mount Kit (supplied) • Data Cable (supplied) •... - Page 37 Installation Guide NOTE: Please block the cable entry hole with the supplied sponge to avoid insects entering the Pendent Mount. See the illustrations in section 4.4.2 Compact Pendent Mount > Step 4. 4) Attach the Waterproof Rubber to the Standard/ Compact Pendent Mount. 5) Thread the cable(s) through the Outdoor Mount Kit and join the Outdoor Mount Kit to the Standard/ Compact Pendent Mount with the supplied screws and washers.
-
Page 38: Pole Thin/Wide Box Mounting
Installation Guide 4.6.2 Pole Thin/Wide Box Mounting Package Contents: • M8x16 Screw x4 • Washer-8 x4 • Spring Washer x4, • Stainless Steel Straps x4 Items Needed: • Dome Camera • Outdoor Mount Kit (supplied) • Data Cable (supplied) • Ethernet Cable (network Speed Dome Camera) •... - Page 39 Installation Guide 4) Attach the Waterproof Rubber to the Standard/ Compact Pendent Mount. 5) Thread the cable(s) through the Outdoor Mount Kit and join the Outdoor Mount Kit to the Standard/ Compact Pendent Mount with the supplied screws and washers. Then adjust the Waterproof Rubber to the joint. 6) Connect the cable(s) to the Dome Camera.
-
Page 40: System Expansion
Installation Guide System Expansion Connecting with Power Box A power box contains a 24V AC adapter, two terminal blocks (for communication and power) and one alarm board. With an IP66 case, the Power Box is ideal for outdoor installation environment. Two models are available: 100~115V AC power input (P1030) and 220~230V AC (P2030). -
Page 41: Appendix A: Technical Specification
Installation Guide Appendix A: Technical Specification Items 18x Model 30x Model 36xModel CAMERA CCD Sensor Sony CCD Optical Zoom 18× 30× 36× Digital Zoom 1~12x variable NTSC 480k Effective Pixels 570k Horizontal Resolution 650 TVL Scanning System NTSC / PAL Synchronization Internal / Line Lock Video Output... - Page 42 Installation Guide Motion Detection On / Off Wide Dynamic Range On / Off Day/Night: IR Cut Filter Auto / Manual Image Freeze On / Off Image Inverse On / Off On / Off Noise Reduction On / Off Alarm 4 digital alarm inputs / 1 alarm outputs Alarm Reaction Preset, Sequence, Auto pan, Cruise NETWORKING...
- Page 43 Installation Guide...
