Alliance Laundry Systems EE1010 Service Manual
  1. Manuals
  2. Brands
  3. Alliance Laundry Systems Manuals
  4. Dryer
  5. EE1010
  6. Service manual
Alliance Laundry Systems EE1010 Service Manual

Alliance Laundry Systems EE1010 Service Manual

Hide thumbs Also See for EE1010:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual
Dryers
Refer to Page 6 for Model Numbers

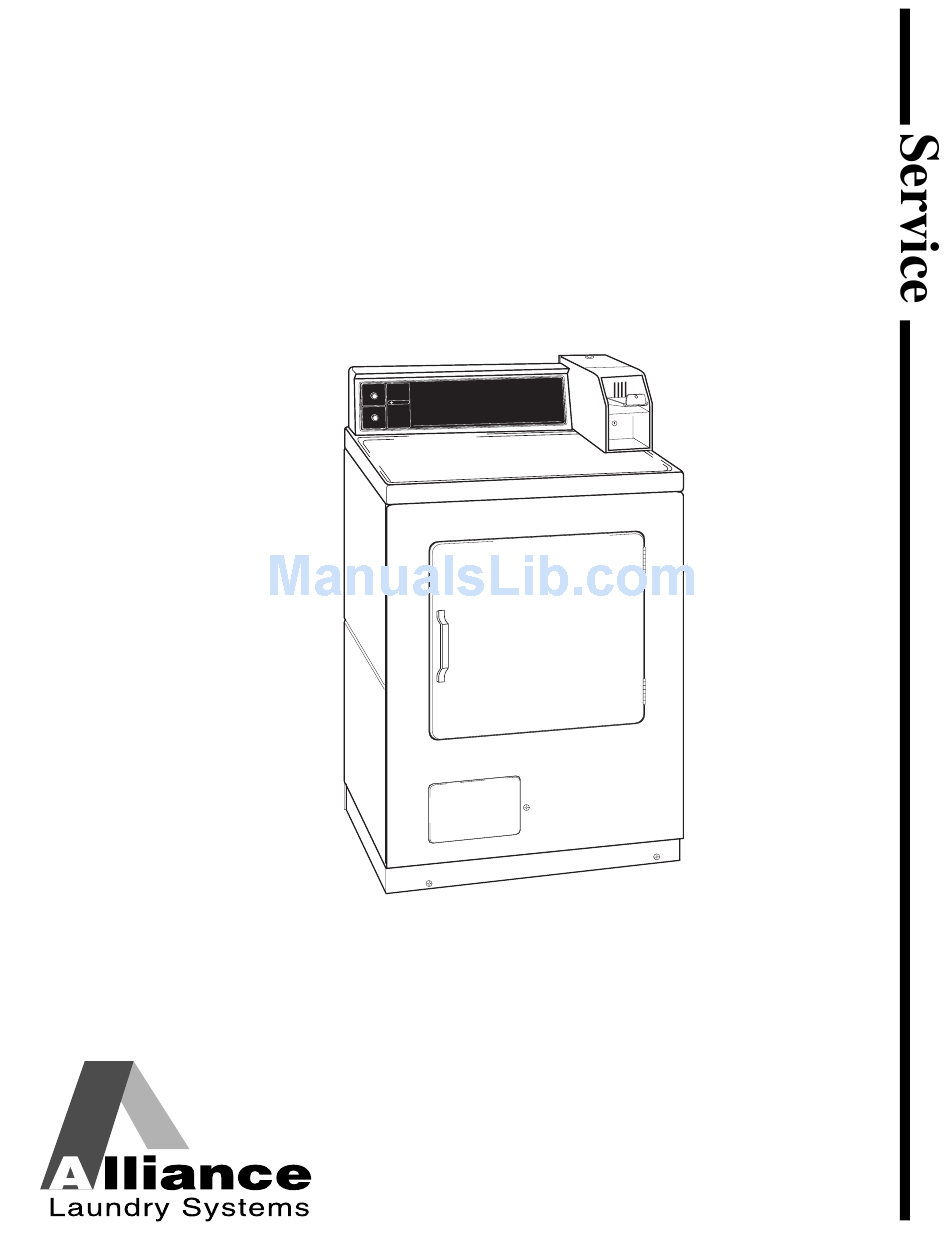

DRY1C
Part No. 505872R1
www.comlaundry.com
February 2001
