Automatic Clothes
Dryers
Electric and Gas Models
D715I
Para bajar una copia de estas instrucciones en español, visite www.comlaundry.com.
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Part No. 510963R5
www.comlaundry.com
June 2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D715I and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alliance Laundry Systems D715I

Summary of Contents for Alliance Laundry Systems D715I

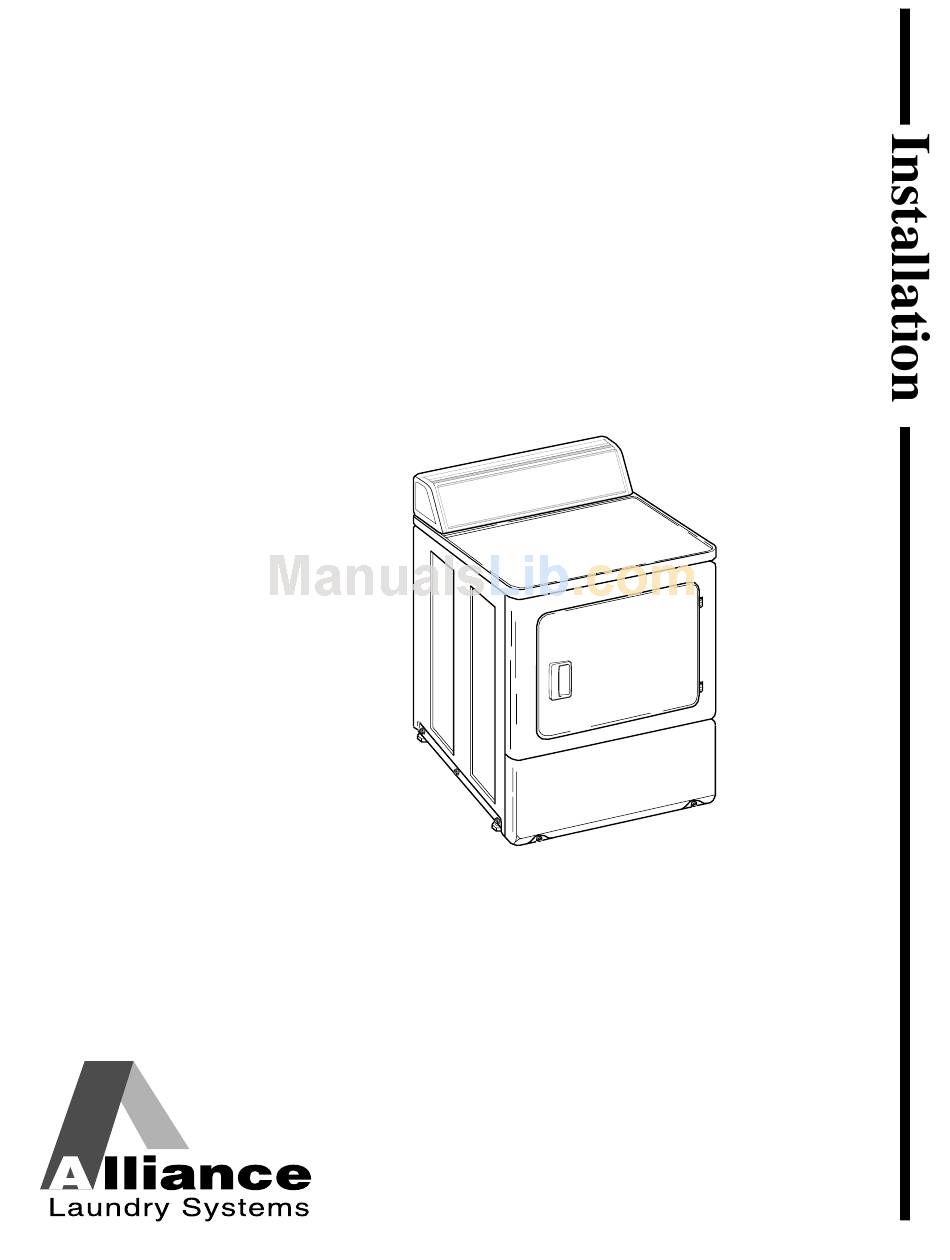

  • Page 1 Automatic Clothes Dryers Electric and Gas Models D715I Para bajar una copia de estas instrucciones en español, visite www.comlaundry.com. Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 510963R5 www.comlaundry.com June 2007...
  • Page 3 A “T-Handle” type gas shut-off valve must be installed in the gas supply line to this appliance. ● This appliance must not be installed in a bedroom or bathroom. ● 510963 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT WARNING W033 W052...
  • Page 4 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510963...

  • Page 5: Table Of Contents

    All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. 510963 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Replacement Parts ... Installation...
  • Page 6 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510963...

  • Page 7: Replacement Parts

    Replacement Parts If replacement parts are required, contact the source where you purchased your dryer, or contact: © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510963 Alliance Laundry Systems LLC Shepard Street P.O. Box 990 Ripon, WI 54971-0990...
  • Page 8 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510963...

  • Page 9: Dimensions And Specifications

    28 in. 23.5 in. (71.1 cm) (59.7 cm) *With leveling legs turned into base. 3/8 in. NPT Gas Connection © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510963 Installation 0.4 in. (1.1 cm) 26.9 in. (68.3 cm) ELECTRIC DRYERS 26.9 in.

  • Page 10: Before You Start

    Use rigid metal duct and exhaust the dryer to the outside by the shortest route possible. Figure 2 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT NOTE: For more detailed information, refer to Section on Dryer Exhaust Requirements.

  • Page 11: Installing The Dryer

    To reduce the risk of fire and combustion gas accumulation the dryer MUST be exhausted to the outdoors. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510963 DO NOT use plastic or thin foil ducting. ●...

  • Page 12: Step 3: (Gas Dryer Only) Connect Gas Supply Pipe

    Equipment Shut-Off Valve – Install within 6 ft. (1.8 m) of dryer © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 3. Connect to gas supply pipe. 4. Tighten all connections securely. Turn on gas and check all pipe connections (internal &...

  • Page 13: Step 4: (Electric Dryer Only) Connect Electrical Plug

    NOTE: Four-wire cord is required for mobile homes or where codes do not permit grounding through neutral. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510963 D275I NOTE: Dryer is shown with access cover removed for illustration purposes only.

  • Page 14: Four-Wire Connection

    NEVER operate dryer with access cover removed. Figure 9 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Step 5: Wipe Out Inside of Dryer Before using dryer for the first time, use an all-purpose cleaner, or a detergent and water solution, and a damp cloth to remove shipping dust from inside dryer drum.

  • Page 15: Step 6: Plug In The Dryer

    ELECTRIC DRYER Connect to 30 Amp circuit. Figure 11 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510963 GAS DRYER Plug cord into separately fused 15 Amp circuit.

  • Page 16: Heat Source Check

    Air Shutter Lockscrew Appliance Main Gas Valve © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT After the dryer has operated for approximately five minutes, observe burner flame through lower front panel.

  • Page 17: Reversing Door Procedure

    Reinstall nine screws removed in Step 2. Reinstall four hinge attaching screws. removed in Step 1. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510963 Remove all nine screws. D675I D675I Rotate door panel 180 degrees as shown.

  • Page 18: Manufactured (Mobile) Home Installation

    Gas dryers cannot be exhausted out the left side because of the burner housing. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT The dryer exhaust duct must be secured to the ●...

  • Page 19: Electrical Requirements

    208 Volt. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510963 If branch circuit to dryer is fifteen feet (4.50 m) ●...

  • Page 20: Electrical Plug Connection

    (Refer to NOTE above) 30 Ampere Fuses or Circuit Breaker Neutral Wire 1. Remove access cover from rear of dryer. Figure 15 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT POWER SUPPLY INTERMEDIATE FUSE BOX (may be omitted if...
  • Page 21 7. Reinstall access cover and screw. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510963 Four-Wire Plug D286I 1.
  • Page 22 D698I Power Cord Ground Wire Figure 22 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 5. Attach power cord ground (green) wire to rear bulkhead using ground screw removed in Step 3. D696I 6.

  • Page 23: Gas Dryers

    110/120 Volts AC (alternating current) 15 Amps. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510963 WARNING Improper connection of the equipment- grounding conductor can result in a risk of electric shock.
  • Page 24 Round Grounding Prong Neutral Side Figure 25 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT NOTE: Have a qualified electrician check the polarity of the wall receptacle. If a voltage reading is measured other than that illustrated, the qualified electrician should correct the problem.

  • Page 25: Gas Requirements

    6 feet (1.8 m) of the dryer. An 1/8 in. NPT pipe plug must be installed as shown. Refer to Figure 26. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510963 To reduce the risk of gas leaks, fire or explosion: •...
  • Page 26 1/8 in. NPT Pipe Plug (For checking inlet gas pressure) Equipment Shut-Off Valve – Install within 6 ft. (1.8 m) of dryer © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT D233I Black Iron Pipe Shorter than 20 ft. (6.1 m) – Use 3/8 in.

  • Page 27: Location Requirements

    **NOTE: For new installations, locate top of wall vent 42 inches (106.7 cm) above floor to make venting easier to connect. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510963 Leveling legs can be adjusted from inside the dryer with a 1/4 inch driver.

  • Page 28: Dryer Exhaust Requirements

    Secure all duct joints with duct tape or pop-rivets. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Make-Up Air Requirements For proper operation it is important that you locate the dryer in an area that has an ample amount of make-up air to replace the amount exhausted by the dryer.

  • Page 29: Exhaust System

    Maximum length of 4 in. (10.2 cm) diameter flexible metal duct. NOTE: Deduct 6 feet (1.8 m) for each additional elbow. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510963 Dryer is shipped from factory ready for rear exhaust;...

  • Page 30: Exhaust System Maintenance

    521P3 FLEXIBLE METAL VENT KIT Figure 30 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Dryer Airflow Efficient dryer operation requires proper dryer airflow. Proper dryer airflow can be evaluated by measuring the static pressure.

  • Page 31: Maintenance

    CAUTION Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510963 Maintenance Exhaust System The exhaust duct should be inspected after one year of use and cleaned if necessary.

  • Page 32: Information For Handy Reference

    Phone Number Service Agency Service Agency Address Phone Number NOTE: Record the above information and keep your sales slip. Model and serial numbers are located on the nameplate. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510963...

  • Page 34: Installer Checklist

    (Refer to the manual for more detailed information) ➊ • Position and Level the Dryer. LEVEL/NIVEL LEVEL D255I CHECK ➋ • Connect Dryer Exhaust System. CHECK ➌ GAS ONLY • Connect Gas Supply Pipe. • Check for Gas Leaks. CHECK Installer Checklist Fast Track for Installing the Dryer ➍...
