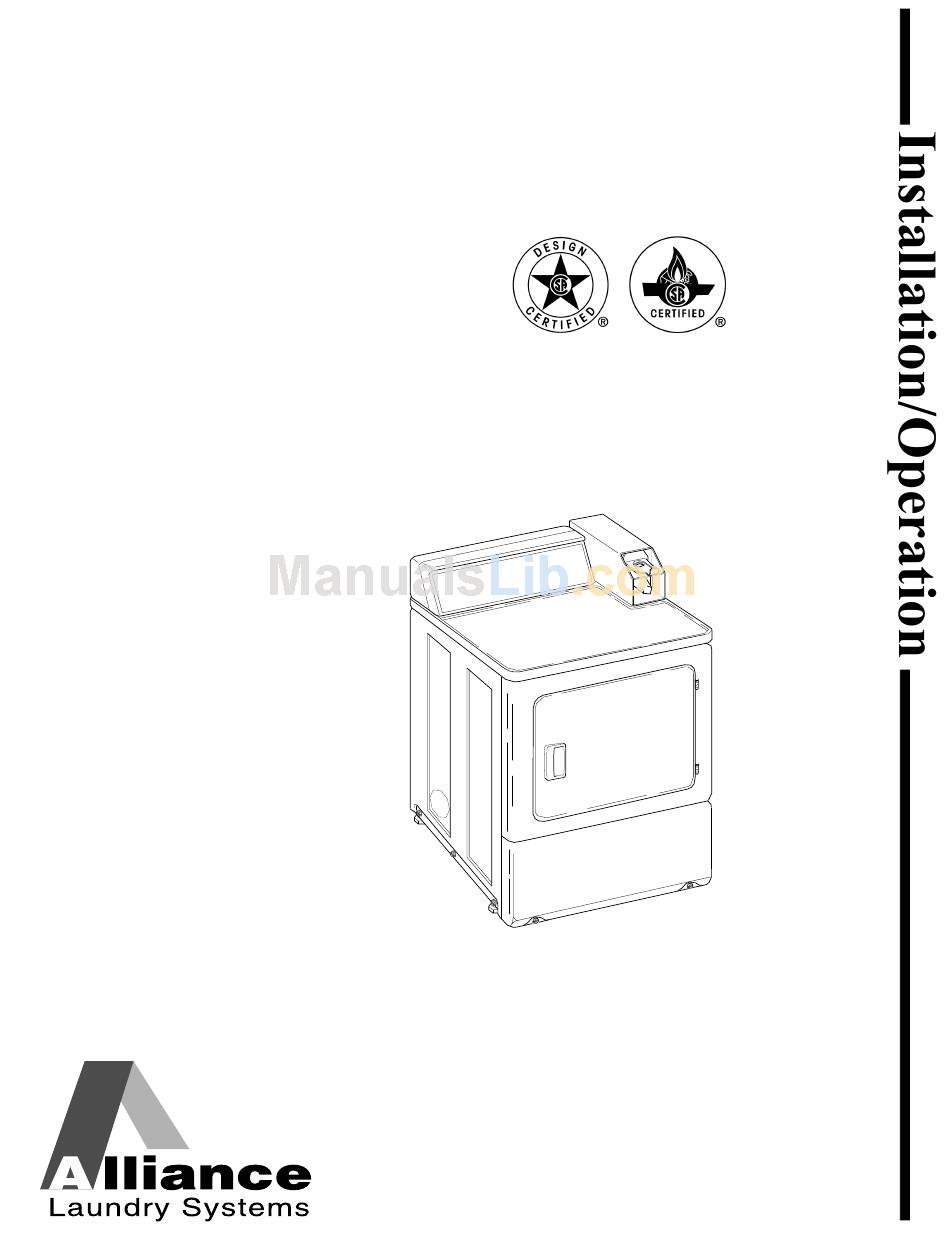

- Page 1 Clothes Dryer Nonmetered and Metered Electric and Gas Models D677I Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 512680R7 www.comlaundry.com September 2011...
- Page 3 • A “T-Handle” type gas shut-off valve must be installed in the gas supply line to this appliance. • This appliance must not be installed in a bedroom or bathroom. 512680 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT WARNING WARNING...
-
Page 4: Table Of Contents
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Safety Information... - Page 5 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512680 Operation Instructions for Nonmetered and Coin Slide Dryers ... 35 Step 1: Clean Lint Filter... 35 Step 2: Load Laundry... 35 Step 3: Close Loading Door... 35 Step 4: Set Fabric Selector ...
-
Page 6: Safety Information
NOTE: The word “NOTE” is used to communicate installation, operation, maintenance or servicing information that is important but not hazard related. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Important Safety Instructions Save These Instructions WARNING... - Page 7 The interior of the dryer and the exhaust duct should be cleaned periodically by qualified service personnel. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512680 17. Do not repair or replace any part of the dryer, or...
-
Page 8: Installation
(71.1 cm) *With leveling legs turned into base. NOTE: Exhaust openings are 4 inch (10.2 cm) metal ducting. 3/8 in. N.P.T. Gas Connection © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Installation 15.4 in. (39.1 cm) 0.4 in. -
Page 9: Metered Models
4 inch (10.2 cm) ducting. Gas models cannot be vented out left side of cabinet because of burner housing. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512680 *40.19 in. (102 cm) Coin Slide Models *38.19 in. (97 cm) Electronic Control Models 15.4 in. -
Page 10: Before You Start
NetMaster models with Serial Nos. beginning 0910 through 1010 require a 7.21 in. (18.31 cm) coin drawer. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Card Reader Models The machine is shipped from the factory with the Electronic Control Diagnostic Harness Assembly unplugged. -
Page 11: Installing The Dryer
Level Leveling Leg Rubber Foot Figure 3 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512680 IMPORTANT: In mobile home installations, gas dryers MUST be permanently attached to the floor at the time of installation. Order No. 526P3 Hold Down Kit (available at extra cost) for a manufactured (mobile) home installation. - Page 12 Outer Wall of Enclosure **NOTE: For new installations, locate top of wall vent 42 inches (106.7 cm) above floor to make venting easier to connect. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT **42 in. (106.7 cm)
-
Page 13: Step 2: Connect Dryer Exhaust System
If secondary systems are mandated, frequently clean the system to assure safe operation. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512680 IMPORTANT: Installing in-line filters or lint collectors will cause increased static pressure. -
Page 14: Exhaust Direction
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Do not draw make-up air from a room containing a gas fired water heater, a dry cleaner or a hair salon. -
Page 15: Exhaust System
7.87 feet (2.4 m) as required to meet UL2158, clause 7.3.2A. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512680 NOTE: Weather hood should be installed at least 12 inches (30.5 cm) above the ground. Larger clearances may be necessary for installations where heavy snowfall can occur. -
Page 16: Multi-Dryer Installation Exhaust Requirements
58786 Backdraft Damper (Available through your local authorized parts source) Clean Out Cover (Must be provided). Inspect monthly. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT METERED MODELS ILLUSTRATED Weather Hood or Sweep Elbow (No cap or screen) - Page 17 Figure 8 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512680 EXHAUST AIR FLOW MAXIMUM LENGTH OF DUCT 30 feet (9.1 m) HORIZONTAL EXHAUST INSTALLATION 2 in.
-
Page 18: Step 3: (Gas Dryer Only) Connect Gas Supply Pipe
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 1. Make certain your dryer is equipped for use with the type of gas in your laundry room. Dryer is equipped at the factory for Natural Gas with a 3/8 inch NPT gas connection. -
Page 19: Step 4: (Electric Dryer Only) Connect Electrical Plug
For proper operation at altitudes above 3500 feet (1070 m) the L.P. gas valve spud orifice size must be reduced to ensure complete combustion. Refer to Table 3. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512680 L.P. Altitude Adjustments Altitude... -
Page 20: Grounding Information
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT The dryer has its own terminal block that must be connected to a separate branch, 60 Hertz, single phase... - Page 21 FOUR-WIRE Typical Receptacle Power Cord Strain Relief Nut Strain Relief Figure 10 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512680 D275I D275I D006I NOTE: DRYER IS SHOWN WITH ACCESS COVER REMOVED FOR ILLUSTRATION PURPOSES ONLY. NEVER OPERATE THE DRYER WITH ACCESS COVER REMOVED.
-
Page 22: Connecting Power Cord With Three-Wire Plug
Neutral Wire 1. Disconnect power to dryer. 2. Remove access cover from rear of dryer. Figure 13 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT POWER SUPPLY INTERMEDIATE FUSE BOX (may be omitted if service entrance... -
Page 23: Connecting Power Cord With Four-Wire Plug
8. Reinstall access cover and screw. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512680 Connecting Power Cord with Four-Wire Plug... - Page 24 4. Use a strain relief and insert end of power cord through power supply hole. Figure 19 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 5. Attach power cord ground (green) wire to rear bulkhead using ground screw removed in Step 3.
-
Page 25: Step 5: Reverse Door, If Desired
3. Pull bottom of door liner out, then pull down, removing door liner from door panel. Figure 23 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512680 4. Rotate door panel 180 degrees as shown. 5. Remove door strike from door liner and reinstall on opposite side. -
Page 26: Step 6: Wipe Out Inside Of Dryer
Figure 30 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Step 7: Plug In the Dryer Electric Dryer Connect the dryer to an electrical power source. - Page 27 If a voltage reading is measured other than that illustrated, the qualified electrician should correct the problem. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512680 Do not operate other appliances on the same circuit when this appliance is operating.
-
Page 28: Step 8: Recheck Steps 1-7
Shut-Off Valve Handle Air Shutter Lockscrew Air Shutter © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT IMPORTANT: If igniter does not light, make sure gas is turned on. After the dryer has operated for approximately five minutes, observe burner flame through lower front panel. -
Page 29: Vending
Start button is pressed. Run Mode In Run Mode, the control is running a cycle. The IN USE LED is lit. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512680 Vending Door Open Mode In Door Open Mode, the control turns off the heater and motor when the door is opened during a run cycle. -
Page 30: Error Display Mode
3 minutes. A value of 1 to 3 additional minutes is available. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Models Starting Serial No. 0909 The seventh switch is used to program the amount of additional cool down time. -
Page 31: Dipswitch Settings
Dipswitch Settings Heat Time Per Coin Pulse (in minutes) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512680 Heat Switch Number Table 4 (continued) Vending... -
Page 32: Models Through Serial No. 0908
Cool Down Per Cycle (in minutes) 3 (preset at factory) Total Cycle Time = Heat Time + Cool Down Time © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Table 4 (continued) Heat Switch Number Cool Down Switch Number... -
Page 33: Models Starting Serial No. 0909
1. Unplug the machine power cord. 2. Record the machine control dipswitch settings. Then set them all to the off position. Refer to Figure 34. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512680 Cool Down Switch Number Table 6 3. -
Page 34: Slide Extension
(shims) (use number of washers included in kit) and nut. Refer to Figure 36. Make sure washers are flat against bracket. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Spring Loops... - Page 35 5. Continue coin slide installation according to manufacturer’s instructions. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512680 NOTE: During coin slide installation, make sure activation lever is up and off the switch. Refer to Figure 38.
-
Page 36: Additional Dryer Security
IMPORTANT: Do not use a power driver to tighten screw. Torque of a power driver could over-tighten screw causing damage to cabinet assembly. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Double “D” Hole Figure 39... -
Page 37: Copyright, Alliance Laundry Systems Llc – Do Not Copy Or Transmit
Step 1: Clean Lint Filter Clean lint filter before each use. D608I Figure 40 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512680 Operation Step 2: Load Laundry Load clothes loosely into dryer drum. Add fabric softener sheet if desired. -
Page 38: Step 4: Set Fabric Selector
IN USE light will come on (indicating start of cycle). NONMETERED MODELS Figure 44 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Coin Slide Models Place coin(s) in slide and carefully push in as far as possible and then pull slide out as far as possible. -
Page 39: Operation Instructions For Electronic Display Control Dryers
Step 1: Clean Lint Filter Clean lint filter before each use. Figure 46 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512680 Step 2: Load Laundry Load clothes loosely into dryer drum. Add fabric softener sheet if desired. -
Page 40: Step 4: Set Fabric Selector
NOTE: Always follow manufacturer’s care label instructions. Figure 49 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Step 5: Insert Coin(s) or Card To Insert Money Insert coin(s) in coin slot. Check pricing as seen on digital display. -
Page 41: Step 6: Start Dryer
The PUSH START status word flashes at one-second intervals when activated. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512680 DRYING DRYING is lit to indicate that one of the heated cycles (HIGH TEMP, MED TEMP, LOW TEMP) is currently in operation. -
Page 42: Operation Instructions For Mdc Dryers
Step 1: Clean Lint Filter Clean lint filter before each use. D608I Figure 53 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Step 2: Load Laundry Load clothes loosely into dryer drum. Add fabric softener sheet if desired. -
Page 43: Step 4: Set Fabric Selector
To Insert Card Insert card into opening. Figure 58 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512680 If Additional Time Feature is turned on, additional dryer time may be purchased at cycle start or while dryer is running. -
Page 44: Operation Instructions For Netmaster Dryers
Step 1: Clean Lint Filter Clean lint filter before each use. Figure 60 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Step 2: Load Laundry Load clothes loosely into dryer drum. Add fabric softener sheet if desired. -
Page 45: Step 4: Set Fabric Selector
NO HEAT by pushing touchpad. NOTE: Always follow manufacturer’s care label instructions. Figure 63 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512680 Step 5: Insert Coin(s) or Card To Insert Money Insert coin(s) in coin slot. Check pricing as seen on digital display. -
Page 46: Step 6: Start Dryer
START pad. Cycle is completed when time remaining reaches 00 minutes. Figure 66 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Indicator Lights INSERT COINS/CARD INSERT COINS/CARD is lit to prompt the user to insert coins or a card to satisfy the vend price. -
Page 47: Maintenance
Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512680 Maintenance Exhaust System To reduce the risk of electric shock, disconnect the electrical service to the dryer before cleaning. -
Page 48: Lint Filter
START pad. If overload protector cycles again, remove the dryer from use and call the service person to correct the problem. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT For Energy Conservation Make sure the lint filter is always clean. -
Page 49: Troubleshooting
Dryer doesn’t dry clothes satisfactorily Dryer is noisy Clothes are too wrinkled Clothes have odor © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512680 Troubleshooting Possible Cause/Solution Nonmetered models - Turn timer knob further into cycle. -
Page 50: Contact Information
Nameplate Figure 68 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT WARNING To reduce the risk of serious injury or death, DO NOT repair or replace any part... -
Page 52: Fast Track For Installing The Dryer
ELECTRIC ONLY • Connect Electrical Cord. CHECK • Reverse Door, if Desired. CHECK © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT • Wipe Out Inside of Dryer. D256I D259I • Plug In the Dryer. D335I D335I •...
