Summary of Contents for Alliance Laundry Systems DRY710C

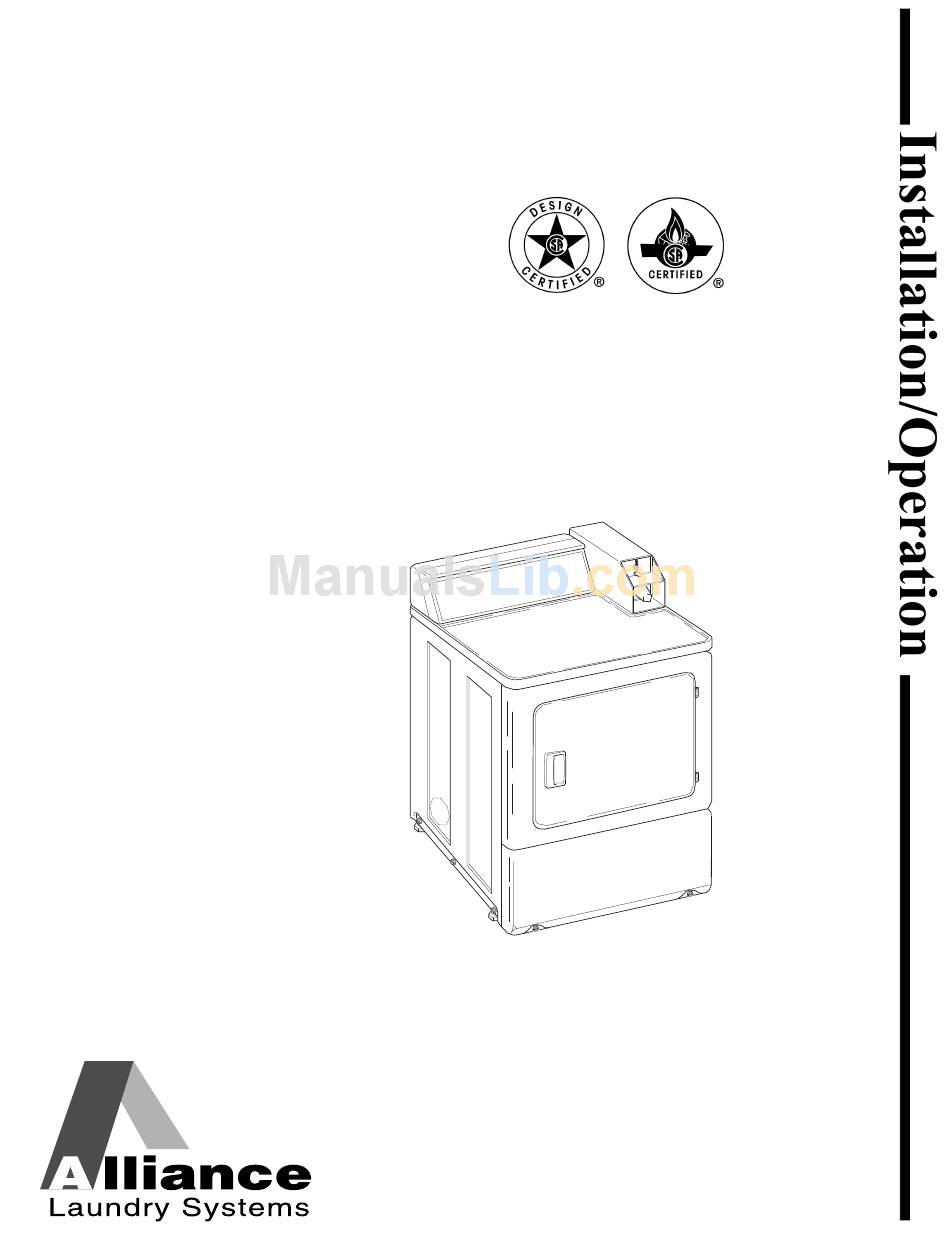

- Page 1 Clothes Dryer Electric and Gas Models DRY710C Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 513005R5 www.comlaundry.com August 2011...
- Page 3 • A “T-Handle” type gas shut-off valve must be installed in the gas supply line to this appliance. • This appliance must not be installed in a bedroom or bathroom. 513005 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT WARNING WARNING...
-
Page 4: Table Of Contents
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Safety Information... -
Page 5: Safety Information
NOTE: The word “NOTE” is used to communicate installation, operation, maintenance or servicing information that is important but not hazard related. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513005 Important Safety Instructions Save These Instructions... - Page 6 21. If supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 22. Install this dryer according to the INSTALLATION INSTRUCTIONS. All...
-
Page 7: Installation
NOTE: Side, rear and bottom exhaust openings are 4 inch (10.2 cm) ducting. Gas models cannot be vented out left side of cabinet because of burner housing. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513005 Installation *38.19 in. (97 cm) 15.4 in. -
Page 8: Before You Start
Serial Nos. beginning 0910 through 1010 require a 7.21 in. (18.31 cm) coin drawer. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Card Reader Models The machine is shipped from the factory with the Electronic Control Diagnostic Harness Assembly unplugged. -
Page 9: Installing The Dryer
Level Leveling Leg Rubber Foot Figure 3 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513005 IMPORTANT: In mobile home installations, gas dryers MUST be permanently attached to the floor at the time of installation. Order No. 526P3 Hold Down Kit (available at extra cost) for a manufactured (mobile) home installation. - Page 10 Outer Wall of Enclosure **NOTE: For new installations, locate top of wall vent 42 inches (106.7 cm) above floor to make venting easier to connect. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT **42 in. (106.7 cm)
-
Page 11: Step 2: Connect Dryer Exhaust System
Failure to maintain the secondary lint system will decrease dryer efficiency and may void machine warranty © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513005 DO NOT use plastic or thin foil ducting. Rigid metal duct is recommended. -
Page 12: Exhaust Direction
Blockage will decrease airflow through the dryer, thus reducing the efficiency of the dryer. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Exhaust Direction The dryer can be exhausted to the outdoors through the back, left, right or bottom of the dryer. -
Page 13: Exhaust System
7.87 ft. (2.4 m), as required to meet UL2158, clause 7.3.2A. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513005 NOTE: Weather hood should be installed at least 12 inches (30.5 cm) above the ground. Larger clearances may be necessary for installations where heavy snowfall can occur. -
Page 14: Multi-Dryer Installation Exhaust Requirements
58786 Backdraft Damper (Available through your local authorized parts source) Clean Out Cover (Must be provided). Inspect monthly. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT METERED MODELS ILLUSTRATED Weather Hood or Sweep Elbow (No cap or screen) - Page 15 NOTE: Where the exhaust duct pierces a combustible wall or ceiling, an opening must be sized as shown or per local codes. Figure 8 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513005 EXHAUST AIR FLOW MAXIMUM LENGTH OF DUCT 30 feet (9.1 m)
-
Page 16: Step 3: (Gas Dryer Only) Connect Gas Supply Pipe
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 1. Make certain your dryer is equipped for use with the type of gas in your laundry room. Dryer is equipped at the factory for Natural Gas with a 3/8 inch NPT gas connection. -
Page 17: Grounding Information
For proper operation at altitudes above 3500 feet (1070 m) the L.P. gas valve spud orifice size must be reduced to ensure complete combustion. Refer to Table 3. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513005 L.P. Altitude Adjustments Altitude... - Page 18 Do not connect dryer to 110, 115, or 120 Volt circuit. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Heating elements are available for field installation in dryers which are to be connected to electrical service of different voltage than that listed on nameplate, such as 208 Volt.
- Page 19 FOUR-WIRE Typical Receptacle Power Cord Strain Relief Nut Strain Relief Figure 10 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513005 D275I D275I D006I NOTE: DRYER IS SHOWN WITH ACCESS COVER REMOVED FOR ILLUSTRATION PURPOSES ONLY. NEVER OPERATE THE DRYER WITH ACCESS COVER REMOVED.
-
Page 20: Connecting Power Cord With Three-Wire Plug
30 Ampere Fuses or Circuit Breaker Neutral Wire 1. Disconnect power to dryer. 2. Remove access cover from rear of dryer. Figure 13 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT POWER SUPPLY INTERMEDIATE FUSE BOX (may be omitted if... -
Page 21: Connecting Power Cord With Four-Wire Plug
8. Reinstall access cover and screw. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513005 Connecting Power Cord with Four-Wire Plug... - Page 22 4. Use a strain relief and insert end of power cord through power supply hole. Figure 19 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 5. Attach power cord ground (green) wire to rear bulkhead using ground screw removed in Step 3.
-
Page 23: Step 5: Reverse Door, If Desired
3. Pull bottom of door liner out, then pull down, removing door liner from door panel. Figure 23 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513005 4. Rotate door panel 180 degrees as shown. 5. Remove door strike from door liner and reinstall on opposite side. -
Page 24: Step 6: Wipe Out Inside Of Dryer
Figure 30 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Step 7: Plug In the Dryer Electric Dryer Connect the dryer to an electrical power source. - Page 25 If a voltage reading is measured other than that illustrated, the qualified electrician should correct the problem. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513005 Do not operate other appliances on the same circuit when this appliance is operating.
-
Page 26: Step 8: Recheck Steps 1-7
Shut-Off Valve Handle Air Shutter Lockscrew Air Shutter © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT IMPORTANT: If igniter does not light, make sure gas is turned on. After the dryer has operated for approximately five minutes, observe burner flame through lower front panel. -
Page 27: Vending
1/4 or 5/16 inch (6.4 or 8.0 mm) holes and install a bicycle lock through these holes. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513005 Vending Additional Dryer Security Located on the service door of the dryer is a flat Phillips head screw. -
Page 28: Operation
Step 1: Clean Lint Filter Clean lint filter before each use. D608I Figure 35 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Operation Step 2: Load Laundry Load clothes loosely into dryer drum. Add fabric softener sheet if desired. -
Page 29: Step 4: Set Fabric Selector
Step 5: Insert Coin(s) or Card To Insert Money Insert coin(s) in coin slot. Check pricing as seen on digital display. Figure 39 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513005 To Insert Card Insert card into opening. DRY2320N... -
Page 30: Step 6: Start Dryer
18 hours or until door is opened. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Indicator Lights INSERT COINS/CARD INSERT COINS/CARD is lit to prompt the user to insert coins or a card to satisfy the vend price. -
Page 31: Maintenance
Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513005 Maintenance Exhaust System To reduce the risk of electric shock, disconnect the electrical service to the dryer before cleaning. -
Page 32: Lint Filter
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT For Energy Conservation Make sure the lint filter is always clean. -
Page 33: Troubleshooting
Dryer won’t heat Dryer doesn’t dry clothes satisfactorily Dryer is noisy Clothes are too wrinkled Clothes have odor © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513005 Troubleshooting Possible Cause/Solution Insert coin(s) or card. ... -
Page 34: Copyright, Alliance Laundry Systems Llc – Do Not Copy Or Transmit
Nameplate Figure 43 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT WARNING To reduce the risk of serious injury or death, DO NOT repair or replace any part... -
Page 36: Fast Track For Installing The Dryer
CHECK ELECTRIC ONLY • Connect Electrical Cord. CHECK • Reverse Door, if Desired. CHECK © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT • Wipe Out Inside of Dryer. D256I D259I • Plug In the Dryer. DRY2357N...
