Inside ...
Safety Information. . . . 3
Before Drying . . . . . . . . 6
Drying Special Items . . 8
Operating Your Dryer . . 11
Clothing Care Labels . . 14
Maintenance . . . . . . . . . 15
Troubleshooting . . . . . . 17
Para bajar una copia de estas instrucciones
en español, visite www.comlaundry.com.

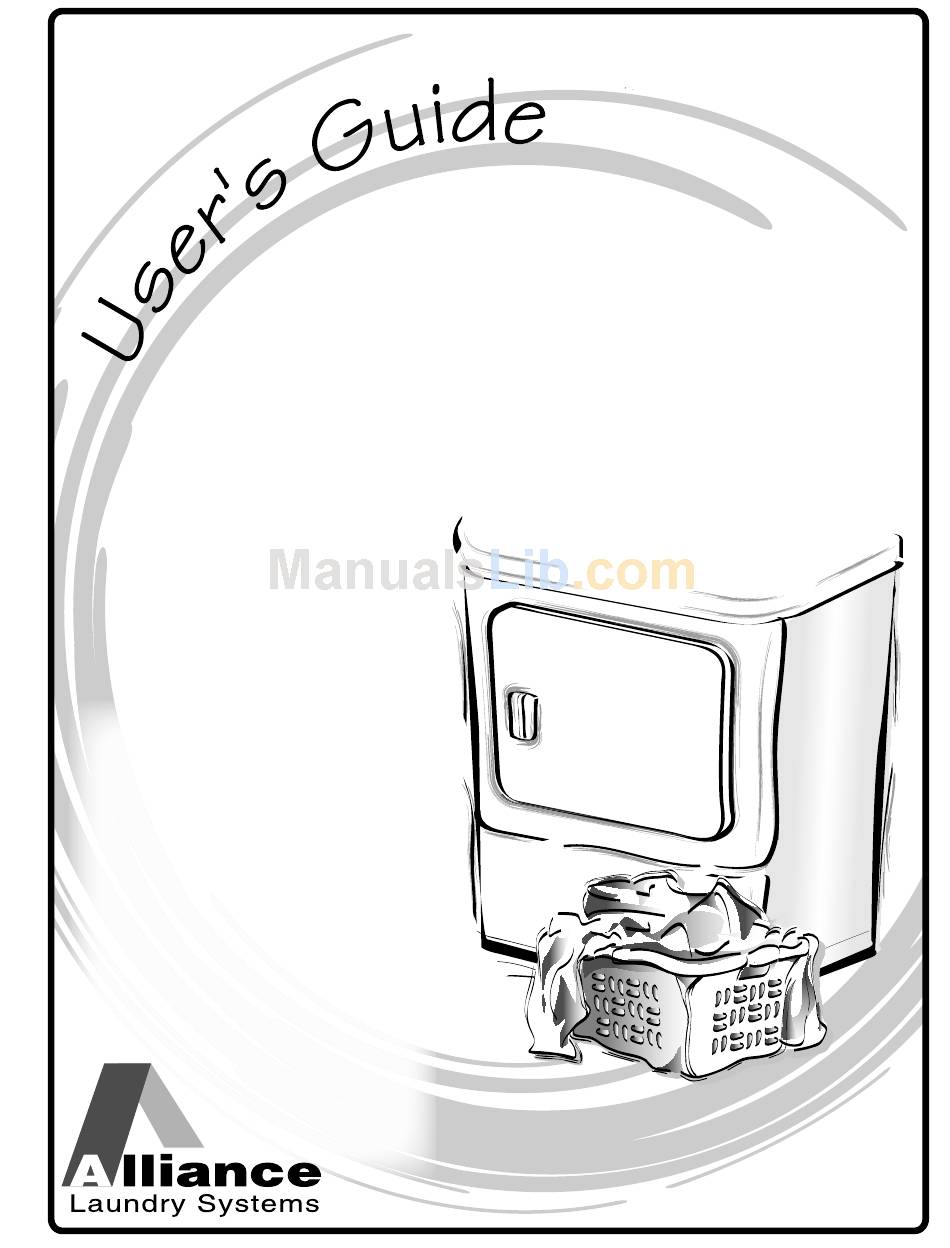

for your dryer
www.comlaundry.com
Part No. 802716
December 2006
Advertisement
Table of Contents
Related Manuals for Alliance Laundry Systems DRY2024N
Summary of Contents for Alliance Laundry Systems DRY2024N
-
Page 1: Table Of Contents
Inside … Safety Information..3 Before Drying ..6 Drying Special Items . . 8 Operating Your Dryer . . 11 Clothing Care Labels . . 14 Maintenance ..15 Troubleshooting . - Page 2 FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or death. • Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
-
Page 3: Safety Information
7. Do not install or store the dryer where it will be exposed to the water and/or weather. 8. Do not tamper with the controls. © Copyright 2006, Alliance Laundry Systems LLC consent of the publisher. 802716 W A R N I N G... - Page 4 9. Do not repair or replace any part of the dryer, or attempt any servicing unless specifically recommended in the User- Maintenance Instructions or in published user-repair instructions that you understand and have the skills to carry out. 10. Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.
- Page 5 Common sense, caution and care must be exercised when installing, maintaining, or operating the dryer. Always contact your dealer, distributor, or service agent about any problems or conditions you do not understand. 802716 DRY2024N...
-
Page 6: Before Drying
Before Drying Energy Saving Tips • Make sure the lint filter is always clean. • Do not overload the dryer. • Do not overdry items. • Remove items to be ironed while still damp. • Large loads of similar fabrics dry the most efficiently. - Page 7 • The following illustrations show the ideal load sizes for fabrics. The average load will fill the cylinder one third to half full when wet. W527 Cylinder with wet linens and cottons Cylinder with wet permanent press items 802716 DRY2031N DRY2031N DRY2032N DRY2032N DRY2024N...
-
Page 8: Drying Special Items
Drying Special Items Type of Load Bedspreads Blankets Electric Synthetic Fibers Thermal Cotton Wool Curtains Cotton Fiberglass Synthetic Fibers Denim, Corduroy Special Instructions • Choose heat for fabric. • Dry one double or two single spreads. • Chenille and tufted spreads will shed lint and should be dried by themselves. •... - Page 9 Type of Load Draperies Knit Articles Knit fabrics are usually manufactured under tension (stretching). Cotton knits especially may relax or draw together if every bit of moisture is removed from them. It is best to take them out of the dryer with a trace of moisture remaining, then stretch to shape. If items shrink from overdrying, rewet them and dry properly.
- Page 10 Type of Load Mattress Pads Pillows Feather and Down-Filled Fiber-Filled (polyester) Foam Rubber Quilts Rugs Cotton With Cotton Backing Rubber-Backed Synthetic Fibers Slip Covers Stuffed Animals and Toys Tennis Shoes Special Instructions • Read and carefully follow the fabric care instructions supplied by the mattress pad manufacturer.
-
Page 11: Operating Your Dryer
Use for permanent press items and synthetics. The type of heat is determined by selecting the proper Fabric Selector option. There are two settings in the AUTOMATIC PERMANENT PRESS/ KNITS cycle — MORE DRY and LESS DRY. -11- 802716 DRY2024N... -
Page 12: To Dry Clothes
To Dry Clothes IMPORTANT: Refer to the INSTALLATION INSTRUCTIONS before using dryer. IMPORTANT: Before using dryer for the first time, use an all-purpose cleaner or a detergent and water solution and a damp cloth to remove shipping dust from inside of dryer drum. 1. -
Page 13: Optional Drying Rack
A drying rack, Part No. 512082, is available at extra cost through your Factory Authorized Service Center. The drying rack can be used for no-tumble drying of articles such as tennis shoes, sweaters, stuffed toys or other delicate items. DRY2086N DRY2086N DRY2086N -13- 802716 DRY2024N... -
Page 14: Clothing Care Labels
Clothing Care Labels The symbols below appear on many clothing care labels. Following the instructions on each label will help ensure the best laundry results. WASH Machine Wash Cycle Normal Permanent Gentle/ Hand wash TLW2011N TLW2010N Press/Wrinkle TLW2012N Delicate Resistant Warm Cold TLW2015N... -
Page 15: Maintenance
Dryer can be restarted by pushing the timer knob in. If overload protector cycles again, remove the dryer from use and call the service person to correct the problem. -15- 802716 WA R N I N G W043 DRY2024N... -
Page 16: Lint Filter
Lint Filter The lint filter is located at the front of the dryer in the lower part of the door opening. CLEAN THE LINT FILTER BEFORE DRYING EACH LOAD. Remove lint filter cover, clean lint filter and replace cover. Annually remove lint filter and screw to vacuum the duct under it. -
Page 17: Troubleshooting
Troubleshooting Try these troubleshooting tips before making a service call – You may save time and money! Dryer Symptom Dryer won’t start Dryer won’t heat Dryer doesn’t dry clothes satisfactorily Dryer is noisy Cycle advances too slowly Clothes are too wrinkled Clothes have odor Possible Cause/Solution •... -
Page 18: Contact Information
If service is required, contact the nearest Factory Authorized Service Center. If you are unable to locate an authorized service center or are unsatisfied with the service performed on your dryer, contact: Alliance Laundry Systems Shepard Street P.O. Box 990 Ripon, Wisconsin 54971 www.comlaundry.com...
