Alliance Laundry Systems EE1010 Service Manual

Alliance Laundry Systems EE1010 Service Manual

Metered and nonmetered automatic washers
Hide thumbs Also See for EE1010:
Table of Contents

Advertisement

Quick Links

Download this manual

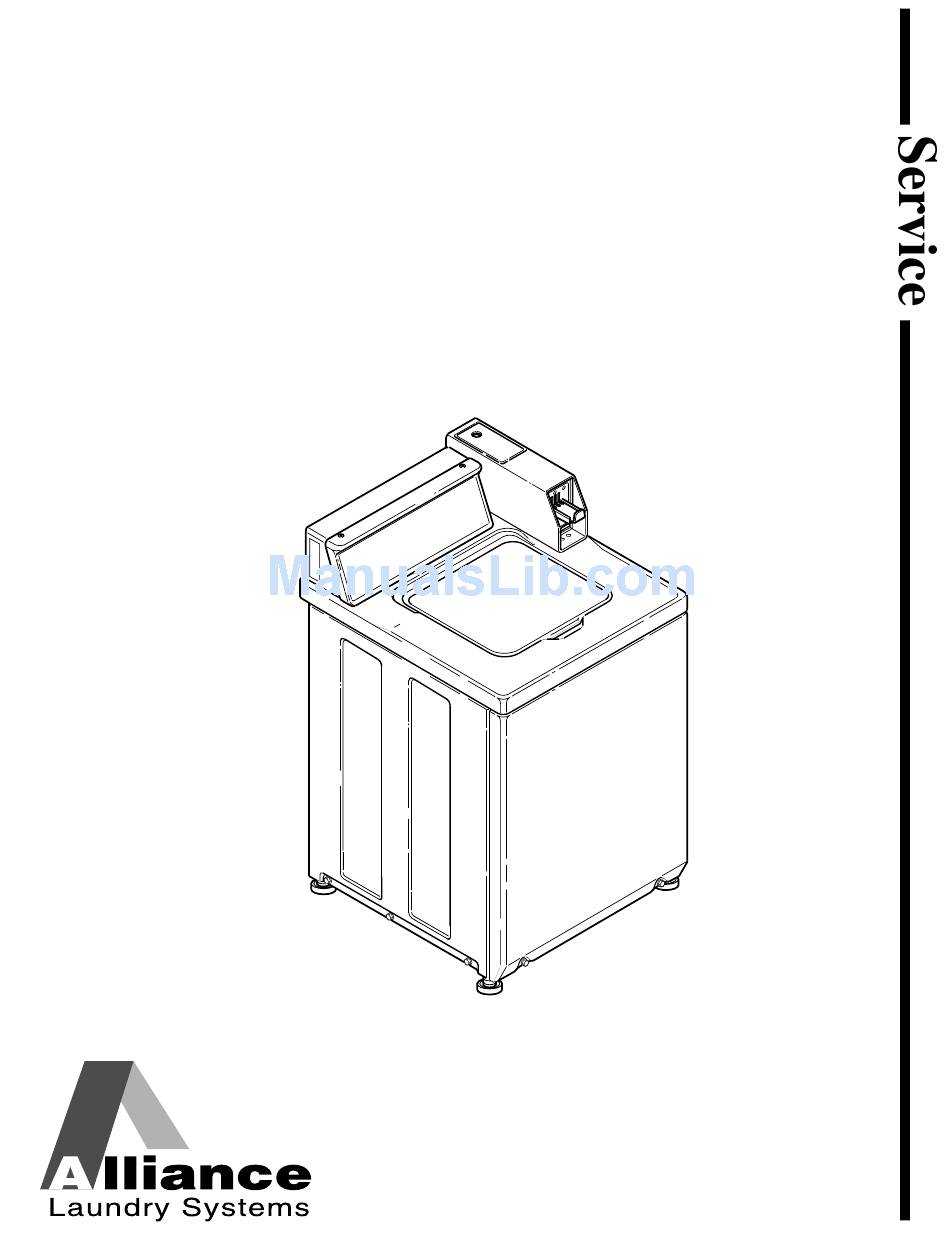

Automatic
Washers
Metered and Nonmetered
Refer to Page 6 for Model Numbers
W138P
Part No. 32918R2
www.comlaundry.com
February 2003
