Seagull Models Grove GR7Madness Assembly Manual page 20

GROVE GR7 MADNESS
C/A glue.

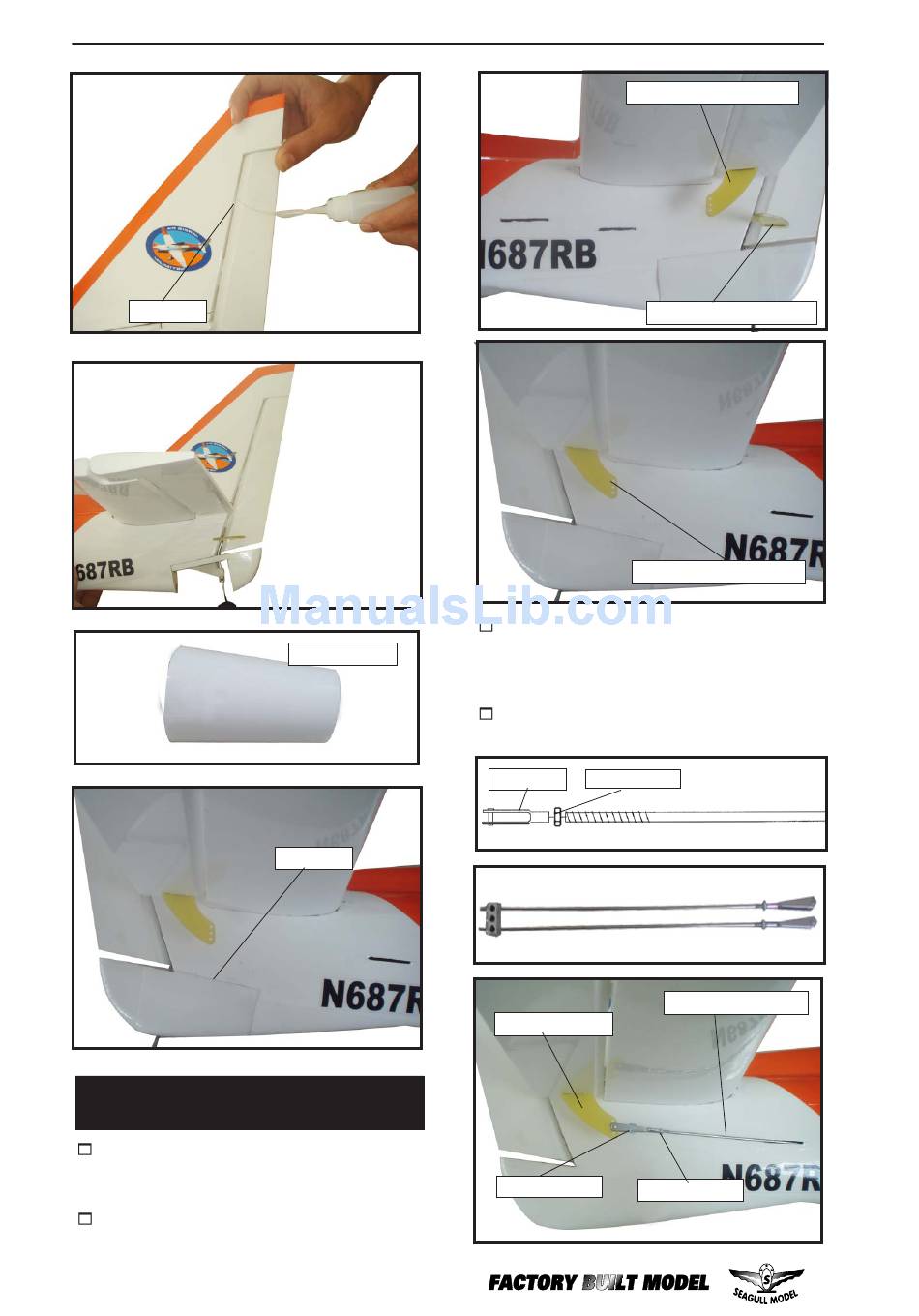

ELEVATOR PUSHROD HORN
INSTALLATION.
1) Install the elevator control horn using
the same method as with the aileron control
horns.
2) Position the elevator control horn on
the both side of elevator.
20
Instruction Manual.
Plastic part.
C/A glue.
Elevator control horn.
Rudder control horn.
Elevator control horn.
3) Thread one clevis and M3 lock nut on
to each elevator control rod. Thread the horns
on until they are flush with the ends of the con-
trol rods.
4) Elevator and rudder pushrods assembly
as pictures below.
M2 clevis.
M2 lock nut.
Control horn.
Metal clevis.
M2 lock nut.
Elevator pushrod.
