Winnebago Destination Manual Manual

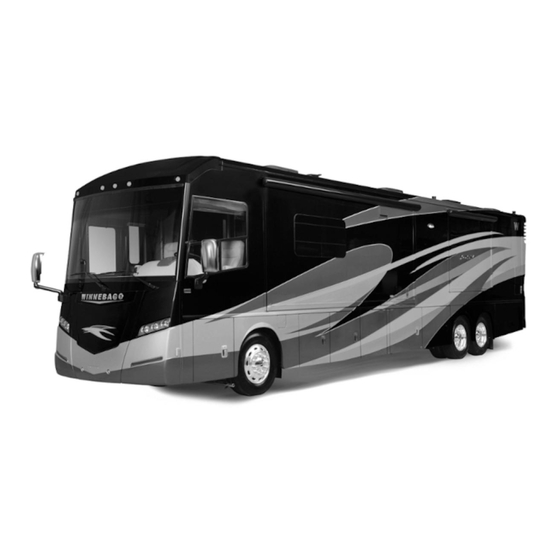

Destination motorhomes
Hide thumbs
Table of Contents

Advertisement

Quick Links

About this Manual ............................................................................................................................ 1-1
Safety Messages Used in this Manual .............................................................................................. 1-1
Pre-Delivery Inspection .................................................................................................................... 1-2
Front Axle Tire Alignment ............................................................................................................... 1-2
Service and Assistance ...................................................................................................................... 1-2
Reporting Safety Defects .................................................................................................................. 1-2
Occupant and Cargo Carrying Capacity Label ................................................................................. 1-3
Vehicle Certification Label ............................................................................................................... 1-4
Specifications and Capacitites .......................................................................................................... 1-5
Owner and Vehicle Information ....................................................................................................... 1-7
2009 New Vehicle Limited Warranty ............................................................................................... 1-8
General Warnings ............................................................................................................................. 2-1
Driving Safety ................................................................................................................................... 2-1
Fuel and Propane Gas ....................................................................................................................... 2-1
LP Gas Leaks .................................................................................................................................... 2-2
Propane Gas Leak Detector .............................................................................................................. 2-2
Carbon Monoxide Warning .............................................................................................................. 2-3
Carbon Monoxide Alarm .................................................................................................................. 2-3
Smoke Alarm .................................................................................................................................... 2-4
Fire Extinguisher ............................................................................................................................... 2-4
Electrical ........................................................................................................................................... 2-5
Loading ............................................................................................................................................. 2-5
Maintenance ...................................................................................................................................... 2-5
Emergency Exits ............................................................................................................................... 2-5
Formaldehyde Information ............................................................................................................... 2-6
Mold, Moisture, and Your Motor Home ........................................................................................... 2-6
Roadside Emergency ........................................................................................................................ 2-7
Jump Starting .................................................................................................................................... 2-8
Engine Overheat ............................................................................................................................... 2-8
Seats - Driver/Co-Pilot ..................................................................................................................... 3-1
Passenger Footrest ............................................................................................................................ 3-2
Seat Belts .......................................................................................................................................... 3-3
Child Restraints ................................................................................................................................. 3-4
KeyOne™ Lock System ................................................................................................................... 3-5
Power Door Locks ............................................................................................................................ 3-5
Mirrors - Power Electric ................................................................................................................... 3-6
