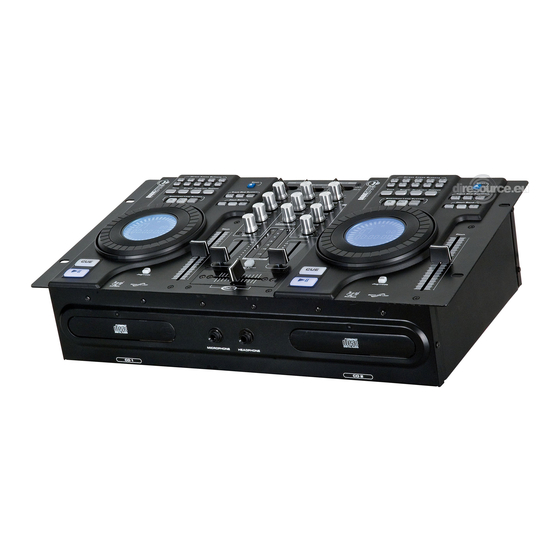

DAPAudio DS-CDJ-250 Product Manual

Audio mixer
Hide thumbs Also See for DS-CDJ-250:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
DS-CDJ-250
ORDERCODE D1225

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-CDJ-250 and is the answer not in the manual?

Questions and answers

Related Manuals for DAPAudio DS-CDJ-250

Summary of Contents for DAPAudio DS-CDJ-250

  • Page 1 DS-CDJ-250 ORDERCODE D1225...
  • Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP Audio DS-CDJ-250 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.

  • Page 3: Table Of Contents

    Dap Audio Dap Audio DS-CDJ-250™ Product Guide Warning..................................Unpacking Instructions............................Return Procedure..............................Safety-instructions..............................Operating Determinations........................... Description.................................. Overview................................CD-player................................Mixer..................................Frontside................................. Backside................................. Installation................................... Set Up and Operation..............................Functions..................................Operations.................................. Opening and closing of the disc holder......................Loading CD’s................................. Selecting Tracks..............................Starting Playback..............................

  • Page 4: Warning

    Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • DAP DS-CDJ-250 • User manual Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

  • Page 5: Safety-Instructions

    WARNING CAUTION! Keep this system away from rain and moisture! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires! Before you initial start-up, please make sure that there is no damage caused by transportation.

  • Page 6: Operating Determinations

    Make sure that the available voltage is not higher than stated on the rear panel. Make sure that the power-cord is never crimped or damaged. Check the system and the power- cord from time to time. Please turn off the power switch, when changing the power cord or signal cable, or select the input mode switch.

  • Page 7: Description

    Description of the device Features DS-CDJ-250 is a CD-Player from DAP Audio. • LCD Display with blue backlight • Pitch control +/- 12% • Anti shock buffer 20 sec • +10 fast track skipping • Loop function • repeat and program function Overview Fig.

  • Page 8: Cd-Player

    CD-player Fig. 2 1) Direct acces buttons 12) Repeat 2) Single 13) B.Skip 3) Time 14) Eject 4) Loop In 15) + 10 (Track+10 Button) 5) Loop Out 16) F.Skip 6) Reloop 17) Pitch + Button 7) Shuttle Wheel 18) Pitch System 8) LCD Display 19) Pitch –...

  • Page 9: Mixer

    Mixer Fig. 3 22) Cue selector 32) Crossfader 23) Channel 1 Input Selector 33) Channel 2 Input Selector 24) Cue Volume 34) Channel 2 Gain 25) Channel 1Gain 35) Channel 2 High 26) Channel 1 Mic Volume 36) Channel 2 Mid 27) Channel 1High 37) Channel 2 Low 28) Master Volume...

  • Page 10: Frontside

    Frontside Fig. 4 41) CD 1 Holder 43) Headphone 42) Microphone 44) CD 2 Holder Backside Fig. 5 45) AC Power 53) Channel 2 Level Selector 46) Fuse 500mA 250V 54) Channel 2 RCA Input 47) Power ON/OFF 55) Channel 1 RCA input 48) 115V/230V Switch 56) Channel 1 Level Selector 49) Headphone...

  • Page 11: Installation

    Do not attempt to operate a 120V specification product on 230V power, or vice versa. Connections 1. Turn off the Power switch. 2. Connect the DS-CDJ-250 to your amplifier using the proper cables. CAUTION: Be sure that the power is off, when connecting the cables. Functions NAMES AND FUNCTIONS Below is a description of the functions of the controls.
  • Page 12 13. B.Skip Use this button to go back to the beginning of the current track or select a previous track for playing. 14. Eject: Press this button to open and close the disc holder. The disc holder cannot be opened during playback, so stop playback before pressing the button.
  • Page 13 47. Power ON/OFF This is the main Power switch. Press to turn the device on. 48. 115V/230V Selector Before plugging the DS-CDJ-250 into any wall socket, make sure that the 115V/230V Selector is set to the proper voltage. 49. Headphone You can connect a pair of headphones with a minimum impedance of 32 Ohm to this stereo 1/4”...

  • Page 14: Operations

    Operations 1. Opening and closing of the disc holder • Turn the unit’s power on. Press the Eject button to open the disc holder. • The Disc holder cannot be opened during playback, to prevent playback from being interrupted if the Eject button is pressed accidentally.

  • Page 15: Pausing

    6. Pausing • Press the Play/Pause button to switch between play and pause. • The play indicator flashes when the pause mode is set. • Playback resumes when the Play/Pause button is pressed again. 7. Setting a Cue Point • Press the Play/Pause button to switch between play and pause. •...

  • Page 16: Program Play

    2) Pitch-Bending • The BPM increases or decreases respectively while the PITCH BEND + or PITCH BEND - button is pressed. • The BPM increase depends on how long you hold the button. If you hold the button for about 5 seconds, the BPM will go either to +12% for PITCH BEND + or -12% for PITCH BEND -.

  • Page 17: Crossfader Replacement

    18. Crossfader Replacement 1. Unscrew the fader(B) screws. Do not touch the innerscrews(C). Carefully remove the old crossfader and unplug the cable.(D) 2. Plug in the new Crossfader into the cable (D)and place the new Crossfader back in the mixer. 3.

  • Page 18: Maintenance

    Maintenance DAP Audio-CD-Player DS-CDJ-250 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents.

  • Page 19: Product Specifications

    Product Specification Model: Dap Audio DS-CDJ-250 Power: 230V-50/60Hz Power consumption:80W Frequency response: 20Hz – 20kHz Signal/ noise ratio: 85dB Pitch control: +/- 12% Time display: Remai, total remain, elapsed Sampling frequency: 44,1kHz DA converter: 24 bit Harmonic distortion: 0,003% Signal inputs: 2x phono, 2x line, 1x mic...
  • Page 20 2008 Dap Audio.
