Summary of Contents for DAPAudio Xenon
- Page 1 Xenon ORDERCODE D2141...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP Audio Xenon brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio Xenon Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Features………………………………………………………………………………….………………….…. Overview ..…………………………………………………………………………………….………..……. Frontside.………………………………………………………………………….………..………………... Backside.………………………………………………………………………….………..……………..…. Installation................…...……………………………………..…. Set Up and Operation..............……..…………………………….….. Set Up ………………..........…………………………………....……..Connection Cables......…........………..………….…….………….…. Maintenance………......…........………..………….…….………….…. Troubleshooting………......…........………..………….…….………….….. Product Specifications..............……………….…….………………….. -
Page 4: Warning
WARNING CAUTION! Keep this system away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
Make sure you don’t use the wrong kind of cables or defective cables. • Make sure that the signals into the mixer are balanced, otherwise hum could be created. • Make sure you use DI boxes to balance unbalanced signals; All incoming signals should be clear. •... -
Page 6: Description

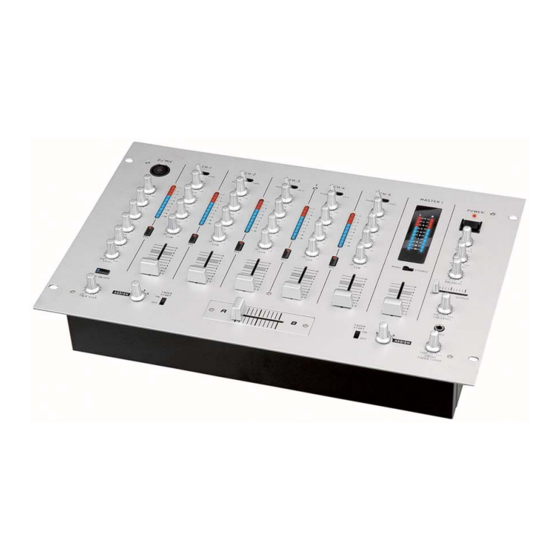

Description of the device Features The Xenon is a mixer from Dap Audio. • User replaceable crossfader • 3 phono, 1 line, 3 CD, 1 tape, 1 video, 3 mic input • Gain control • High, Mid, Low control • Pan-control (DJ Mic Channel) •... -
Page 7: Frontside
Frontside 1) Mic 1 18) Mono /Stereo 2) Gain, range Min / Max 19) Master Fader 3) EQ Hi, range -12 / +12 dB 20) Power LED 4) EQ Mid, range -12 / +12 dB 21) ON / OFF 5) EQ Low, range -12 / +12 dB 22) Balance 2, range L / R 6) Pan, range L / R 23) Master 2, range Min / Max... -
Page 8: Backside
Backside Fig. 2 35) AC Input 36) Output Master L 37) Output Master R 38) Output Master 2 L/R 39) Output Master 1 L/R 40) Output Rec L/R 41) CH5 Video L/R 42) CH5 Phono 3 L/R 43) CH4 CD 3 L/R 44) CH4 Phono 2 L/R 45) CH3 CD 2 L/R 46) CH3 Phono 1 L/R... -
Page 9: Installation
Installation Remove all packing materials from the Xenon. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. - Page 10 10. Mic / Line Switch This switch is used to set the input impedance, either low (mic) or high (line). 11. GAIN With the Gain control you can adjust the MIC or LINE input-sensitivity, while optimally matching the incoming signals to the mixer’s internal operation level. When dealing with very low input levels (example vocal recordings or distant sound sources) the high gain is extremely profitable.
- Page 11 single channel and to establish an accurately proportioned mix of all input signals. The channel faders should be positioned within the range of -6dB to 0dB, leaving you with sufficient room to allow precise matching of differences in the channel’s level settings. The overall volume is set with the master fader. Even though the channel faders offer an additional gain of +6dB.
- Page 12 Caution: Depending on the type of headphones connected to the phones jack, the Xenon is capable of producing very high output levels via the phones output. Therefore, make sure to turn the control all the way to the left (minimum setting) before connecting the headphones.
- Page 13 29 / 33. Cross Fader Assign Switch Switch (29) is used to assign channel 2, 3 or 4 to the A side of the crossfader. Switch (33) is used to assign channel 3, 4 or 5 to the B side of the crossfader. Setting one of the switches (29 or 33) to 0, will disable the according side of the crossfader, 30 / 32.
-
Page 14: Set Up And Operation
Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Set Up Set Up example... -
Page 15: Connection Cables
Connection Cables Take care of the connector cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability, which is always to your advantage. Periodically check that your cables are in good condition, that they are correctly wired and that all their contacts are perfectly efficient: a great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 16: Maintenance
Maintenance DAP Audio Xenon requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 17: Product Specifications
Product Specification Model: DAP Audio Xenon Power AC 230V-50Hz (CE) Dimensions 479 x 306 x 90 mm (LxWxH) Weight 6,3 Kg Input/Output Impedance & Sensitivity Line/Tape/CD/Video: 47k Ohm / -14dBV (200mV) +2/-3dBV Phono: 47k Ohm / -50dBV (3mV) +/- 3dBV...
