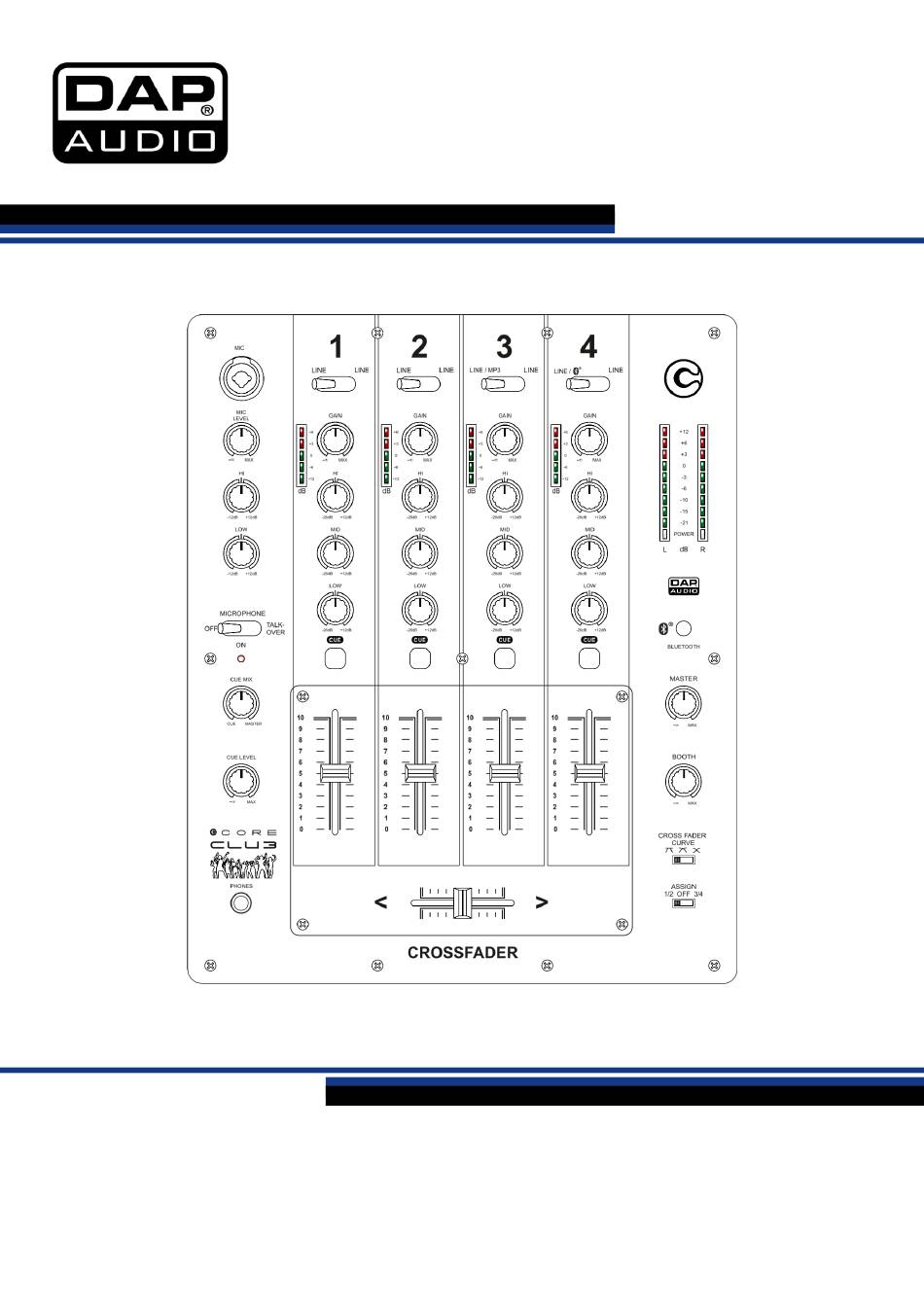

- Page 1 MANUAL ENGLISH Core Club Ordercode: D2314 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Core Club Table of contents Warning ....................................2 Unpacking Instructions ..............................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Overview ..................................... 4 Microphone channel ..............................5 Monitor section ................................5 Main channels ................................6 Master section ................................6 Bluetooth section ................................7 Rear ...................................... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: DAP Audio Core Club AC Power adapter ... - Page 4 Core Club IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the system. Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! ...
-

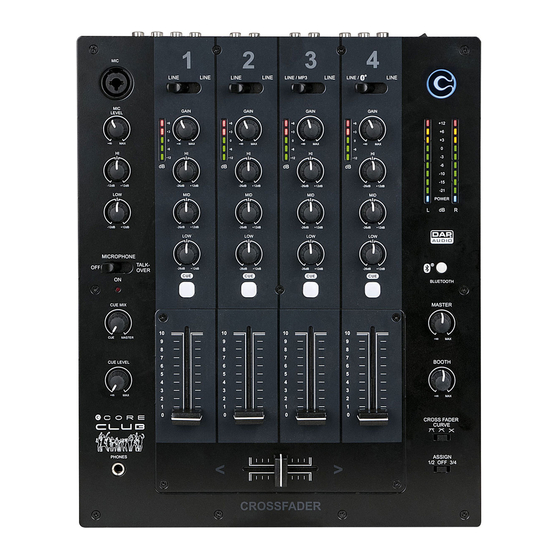

Page 5: Operating Determinations
Core Club Operating Determinations This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. The minimum distance between light-output and the illuminated surface must be more than 0.5 meter. - Page 6 Core Club Microphone channel Mic input Connect a microphone here. Level control Adjusts the sound level output from the MIC channel. High control The High control adjusts the High frequency range. Range: -26dB to +12dB at 10kHz. Low control The Low control adjusts the Low frequency range.
- Page 7 Core Club Main channels Selection switch (Line (42)/Line (43)) Assign Line (42) or Line (43) to Channel 1. Selection switch (Line (40)/Line (41)) Assign Line (40) or Line (41) to Channel 2. Selection switch (Line (37)/Line/MP3 (38)) Assign Line (37) or Line / MP3 (38) to Channel 3.
- Page 8 Displays the status of the Bluetooth connectivity. When the LED is blinking, the device is in matching state. When the light is constantly on, a device is connected to the Core Club mixer. Bluetooth Pair/Unpair button Push the Pair/Unpair button to pair a Bluetooth® device or to disconnect a paired Bluetooth device.
-
Page 9: Rear
Core Club Rear AC adapter inlet Channel 3 RCA unbalanced input Connects to a power outlet using the Connect to a DJ player or a line level output included AC power adapter. component. Power switch Channel 3 RCA unbalanced input Turns this unit‟s power on and off. -
Page 10: Connection Example
Core Club Connection Example D2314... -
Page 11: Connection Cables
Core Club Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 12: Connect A Bluetooth Device
To connect to a different Bluetooth device, repeat steps 4-5. Maintenance The Dap Audio Core Club requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply and then wipe the cover with a damp cloth. Do not immerse in liquid. -
Page 13: Product Specifications
Core Club Product Specifications Model: DAP Audio Core Club Input Channels: 1x Microphone, combo XLR/Jack 8x Line RCA 1x Bluetooth Output channels: 1x Record, RCA 1x Booth, RCA 1x Master unbalanced, RCA 1x Headphones, TRS 6.3mm Jack Channel EQ: High frequency:... -
Page 14: Dimensions
Core Club Dimensions D2314... -
Page 15: Notes
Core Club Notes D2314... - Page 16 ©2013 DAP Audio...
