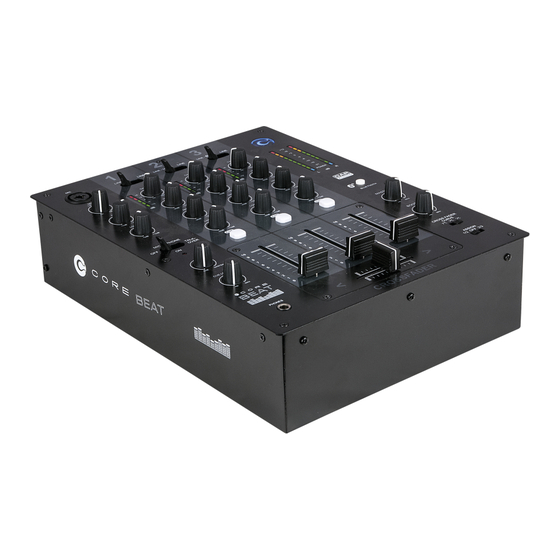

- Page 1 MANUAL ENGLISH Core Beat Ordercode: D2313 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Core Beat Table of contents Warning ....................................2 Unpacking Instructions ..............................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Overview ..................................... 4 Microphone channel ..............................5 Monitor section ................................5 Main channels ................................6 Master section ................................6 Bluetooth section ................................7 Rear ...................................... -
Page 3: Warning
Core Beat Warning FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 4 Core Beat IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the system. Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! ...
-
Page 5: Operating Determinations
Core Beat Operating Determinations This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. The minimum distance between light-output and the illuminated surface must be more than 0.5 meter. - Page 6 Core Beat Microphone channel Mic input Connect a microphone here. Level control Adjusts the sound level output from the MIC channel. High control The High control adjusts the High frequency range. Range: -26dB to +12dB at 10kHz. Low control The Low control adjusts the Low frequency range. Range: -26dB to +12dB at 100Hz.
- Page 7 Core Beat Main channels Selection switch (Line (39)/Line (40)) Assign Line (39) or Line (40) to Channel 1. Selection switch (Line/MP3 (36)/Line (37)) Assign Line (40) or Line (41) to Channel 2. Selection switch (Line/Bluetooth (33)/Line/MP3 (34)) Assign Line (33) or Line/MP3 (34) to Channel 3.
- Page 8 Core Beat Output L/R signal VU meter Displays the audio level output from the MASTER terminal. Master volume control Adjusts the audio level output from the MASTER terminal. Booth volume control Adjusts the audio level output from the Booth monitor. Bluetooth section Bluetooth connectivity LED Displays the status of the Bluetooth connectivity.
-
Page 9: Rear
Core Beat Rear AC adapter inlet Channel 2 RCA unbalanced input Connects to a power outlet using the Connect to a DJ player or a line level output included AC power adapter. component. Power switch Channel 2 RCA unbalanced input Turns this unit’s power on and off. -
Page 10: Connection Example
Core Beat Connection Example D2313... -
Page 11: Connection Cables
Core Beat Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 12: Connect A Bluetooth Device
Core Beat Connect a Bluetooth device Turn on your Bluetooth device. Power on the DAP Audio Core Beat. Press the Pair/Unpair button on the DAP Audio Core Beat. Navigate to your Bluetooth device’s setup screen, find “BT CORE” and connect. Note: If your Bluetooth device prompts for a pairing code, enter ‘0000’. -
Page 13: Product Specifications
Core Beat Product Specifications Model: DAP Audio Core Beat Input Channels: 1x Microphone, combo XLR/Jack 6x Line RCA 1x Bluetooth Output channels: 1x Record, RCA 1x Booth, RCA 1x Master unbalanced, RCA 1x Headphones, TRS 6.3mm Jack Channel EQ: High frequency: 10 kHz High range: -26dB to +12dB... -
Page 14: Dimensions
Core Beat Dimensions D2313... -
Page 15: Notes
Core Beat Notes D2313... - Page 16 ©2022 DAP Audio...
