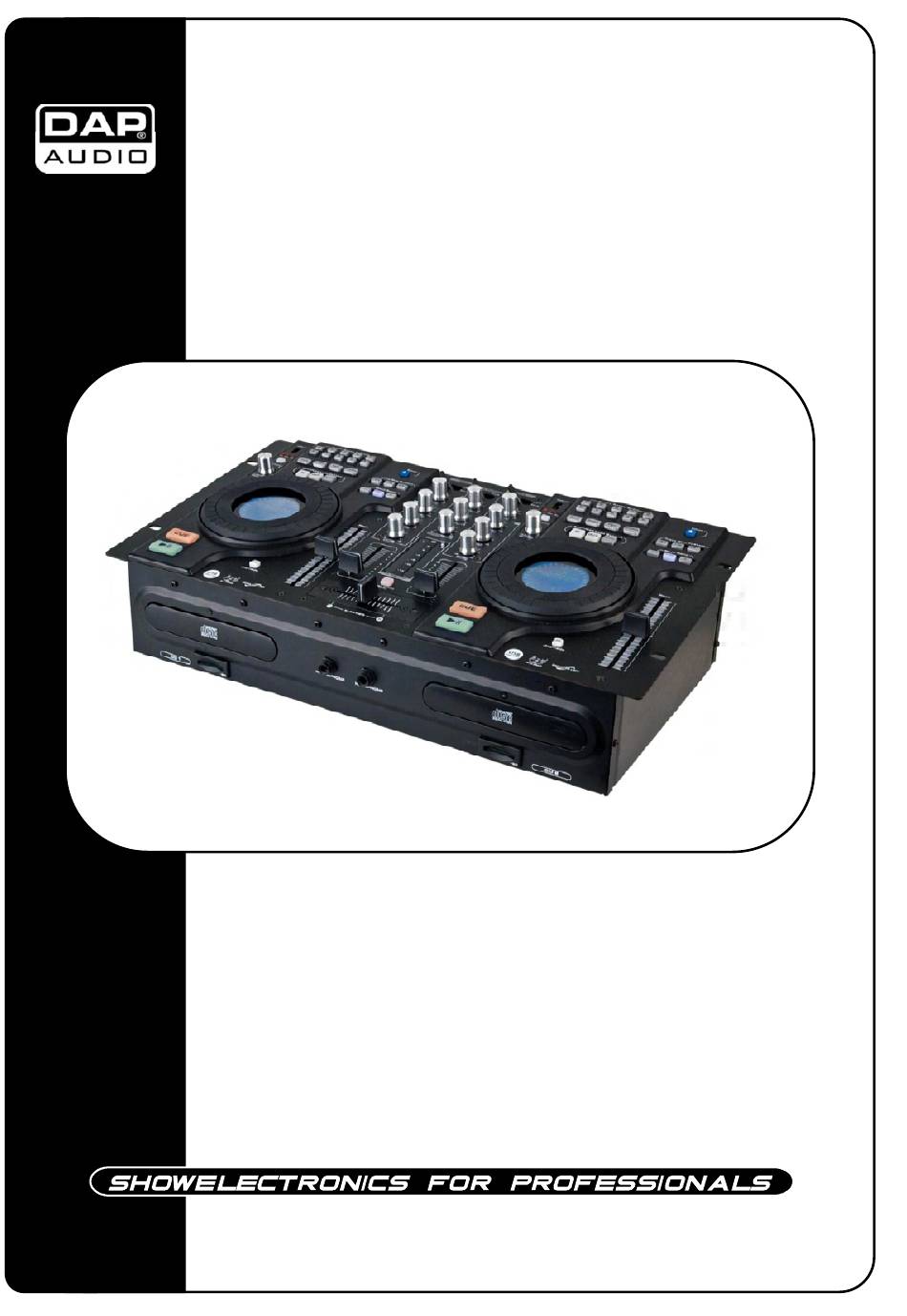

- Page 1 DS-CDJ-250 MKII ORDERCODE D1226...
- Page 2 Congratulations! You ha ve b o ug ht a g rea t, innova tive p rod uc t fro m DAP Aud io . DAP Audio DS-CDJ-250 MKII brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need.
-
Page 3: Table Of Contents
Dap Audio Dap Audio DS-CDJ- 250 MKII Warning Safety- Operating Determinations Return Procedure..............................Claims..................................Description................................... Overview................................. CD player................................Mixer..................................Frontside.................................. Backside.................................. Installation..................................Set Up and Operation..............................Names and functions..............................CD player functions............................... Mixer functions................................ Front functions................................ Back functions................................ Operations................................... Opening and closing of the disc holder...................... -
Page 4: Warning
WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. -
Page 5: Operating Determinations
Never leave any cables lying around. Do not insert objects into air vents. Do not connect this system to a dimmerpack. Do not open the device and do not modify the device. Do not drive the inputs with a signal level bigger, than required to drive the equipment to full output. -
Page 6: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU (including UK) North America From April 2004 Brown Black Phase Blue White Neutral Green/Yellow... -
Page 7: Description
Description of the device Features DS-CDJ-250 MKII is a DJ Workstation from DAP Aud io . Twin CD player with antishock LCD Display with blue backlight for fast control mm faders - card reader Overview Fig. 1 1. CD-player 1 2. -
Page 8: Cd Player
CD-player Fig. 2 1) USB Slot 14) Program 2) CD/USB/SD LED 15) Repeat 3) CD/USB/SD Button 16) Direct Acces Buttons 4) Loop In 17) B.Skip 5) FLD/ TRK Search Control 18) Eject 6) Loop Out 19) + 10 (Track +10) 7) Reloop 20) F.Skip 8) Shuttle Wheel... -
Page 9: Mixer
Mixer Fig. 3 26) Cue Selector 36) Crossfader 27) Channel 1 Input Selector 37) Channel 2 Input Selector 28) Cue Volume 38) Channel 2 Gain 29) Channel 1Gain 39) Channel 2 High 30) Channel 1 Mic Volume 40) Channel 2 Mid 31) Channel 1High 41) Channel 2 Low 32) Master Volume... -
Page 10: Frontside
Frontside Fig. 4 45) CD 1 Holder 48) Headphone 46) SD 1 Slot 49) CD 2 Holder 47) Microphone 50) SD 2 Slot Backside Fig. 5 51) AC Power 59) Channel 2 Level Selector 52) Fuse 500mA 250V 60) Channel 2 RCA Input 53) Power ON/OFF 61) Channel 1 RCA input 54) 115V/230V Switch... -
Page 11: Installation
Do not attempt to operate a 120V specification product on 230V power, or vice versa. Connections 1. Turn off the Power switch. 2. Connect the DS-CDJ-250 MKII to your amplifier using the proper cables. CAUTION: Be sure that the power is off, when connecting the cables. NAMES AND FUNCTIONS Below is a description of the functions of the controls. -
Page 12: Mixer Functions
14. Program: Stop playback and press the Program Button. Now the player will enter the program mode. 15. Repeat: Use this button to repeat one track or all tracks of the selected medium (CD, USB-stick or SD-card). 16. Direct Acces Buttons: The direct acces buttons allow you to input a track number directly instead of having to skip through the tracks individualy. -
Page 13: Front Functions
38. Channel 2 Gain: Channel input level is determined by the Gain control. With the Gain control you can boost the signal of each individual channel. Ad just the input- sensitivity in order to match the incoming signals to the 39 /40 /41. -
Page 14: Operations
61. Channel 1 RCA input Use to connect either a Line level or Phono level device. 62. Channel 1 Phono/ Line switch The setting of this switch determines the input impedance/ sensitivity for the Channel 1 RCA input. 63. GND Use to connect the ground wire of your turntable. -
Page 15: Stop Playback
7. Stop Playback There are two ways to stop playback: 1. Press the Play/Pause button during playback to pause at that point. 2. Press the Cue button during playback to return to the cue point and enter pause condition. Fig. 7 8. -
Page 16: Time Display
13. Time Display Press Time button to select time display mode: 1. Elapsed time of a track (ELAPSED). 2. Re m a ining tim e of a tra c k (REM AIN). 14. Changing Pitch of the song There are three tools available for matching the BPM of the CD: 1. -
Page 17: Setting The Fader Start Relay
19. Setting up the Fader Start Relay 1. Cue up the CD player you wish to start using the Fader Start function 2. Move the Crossfader all the way to the opposite side of the CD you have just Cued. 3. -
Page 18: Maintenance
Make sure connections are thoroughly dry before linking equipment or supplying electric power. Troubleshooting DAP Aud io -CD-Player DS-CDJ-250 MKII This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps.
