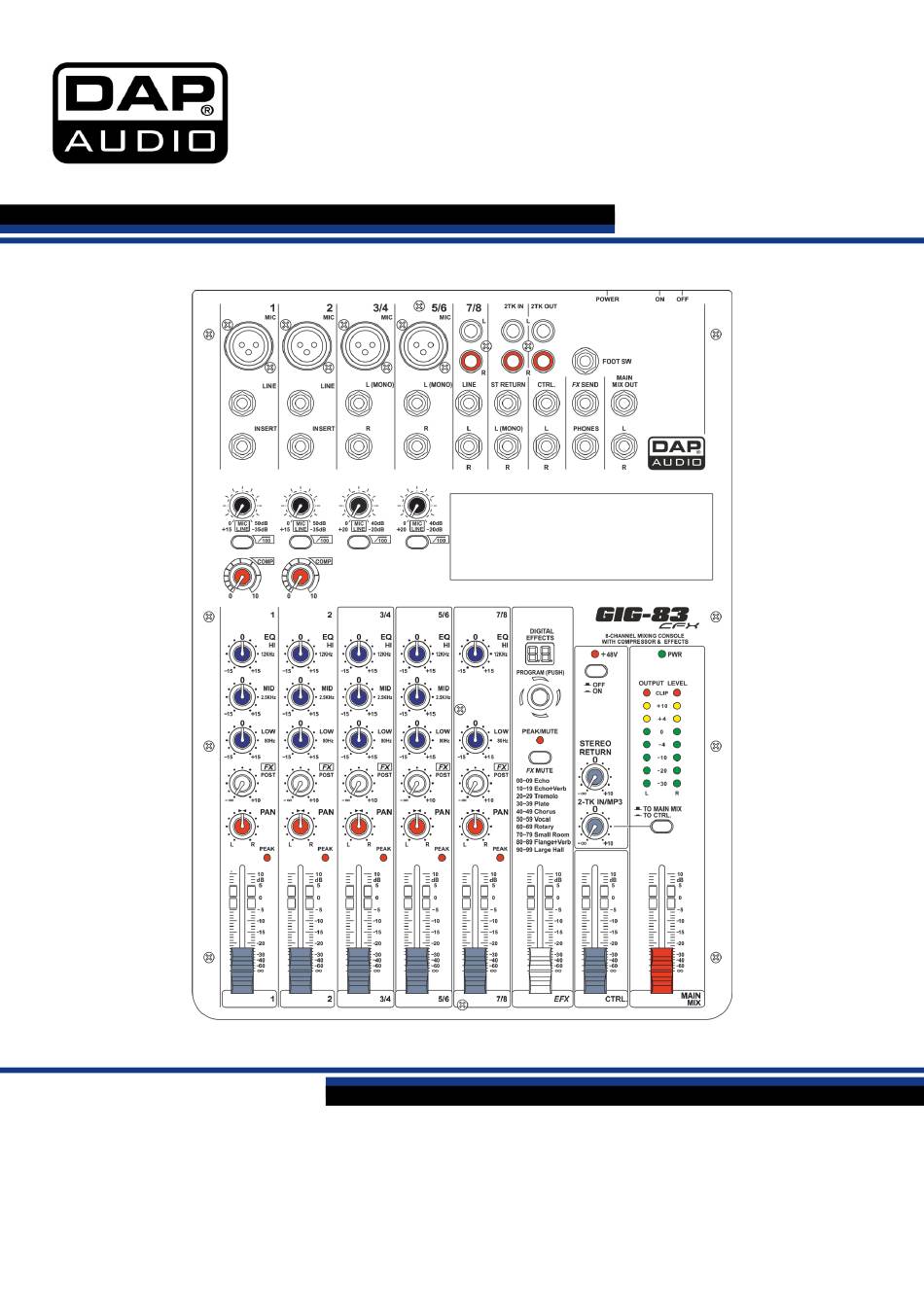

- Page 1 MANUAL ENGLISH GIG-83CFX Order code: D2282 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Option Two - SMP-R (Order code: D2291) ......................14 Option Three - Bluetooth Version 2.1 (Order code: D2292) ................15 Installation and connection ............................16 Connection Cables .................................17 Block Diagram .................................18 Preset List GIG-83CFX ..............................19 Technical Specifications ..............................20 Notes ....................................21 Dimensions ..................................22 Order code: D2282... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: GIG-83CFX mixing console AC power adapter ... - Page 4 GIG-83CFX Never use anything to cover the ground contact. Never leave any cables lying around. Do not insert objects into air vents. Do not connect this system to a dimmer pack. Do not switch the system on and off in short intervals, as this would reduce the system’s life.
-
Page 5: Operating Determinations
GIG-83CFX Operating Determinations This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. The minimum distance between light-output and the illuminated surface must be more than 0.5 meter. -
Page 6: Description Of The Device
GIG-83CFX Description of the device Features Ultra-low noise discrete MIC Preamps with +48V Phantom Power. 2 MIC Input Channels with XLRs and balanced Line Input, Insert I/O and Compressor control. Low Cut for each MIC Input. ... -
Page 7: Installation
PA installations. The GIG-83CFX Mixing Console is packed with features that cannot be found in other consoles of its size: 2 mono (provided with ultra-low noise microphone pre-amplifiers and Phantom Power at +48 Volt ) and 3... -
Page 8: Control Elements
GIG-83CFX Control Elements 1. MIC INPUT JACKS (CHs 1 to 5/6) The balanced XLR input connects to microphones, DI boxes and multicores. 2. LINE INPUT JACKS (CHs 1,2) This is a ¼" jack connector which connects to line-level signal sources (for example, keyboards, CD players and wireless microphone receivers). - Page 9 GIG-83CFX 9. EQUALIZER The high-frequency range is processed with a shelving filter above 12 kHz. You can boost or cut the bands up to 15 dB. When in center position (0 dB), the equalizer has a flat response. The HIGH MID control adjusts the mid frequency range. This is a peak filter which boosts and cuts the frequencies centered at 2,5 kHz.
- Page 10 GIG-83CFX 14. MAIN MIX LEVEL Use this high-precision MAIN fader to control the output level of the main mix. 15. PHONES/CONTROL ROOM The PHONES/CONTROL ROOM control adjusts the volume level of all solo signals routed to the headphone and the CONTROL ROOM outputs.
- Page 11 GIG-83CFX 26. ON/OFF Phantom power is used for operating a capacitor microphone. As a rule, dynamic microphones can still be used with phantom power, provided they are wired in a balanced configuration. 27. PWR LED This LED indicates when the power is switched on.
- Page 12 GIG-83CFX 35. OPTIONAL MODULES SECTION This section can be selected and installed according to the user's requirements. Open the cover and connect the module to connector CN4. The optional modules are: SMP-R, SMP-S, & Bluetooth-2.1. The signal for module playback can be assigned to Main Mix by 2TK routing.
-
Page 13: Modules
GIG-83CFX Modules Option One - SMP-S (Order code: D2290) The file system should be FAT16 or FAT32. This player can only decode MP3. It has 7 rank subordinate folders at most. USB port: Allows the connection of any USB memory stick. - Page 14 GIG-83CFX "Program" mode In Fig. 02, select "Program" to enter into the following interface: "Play list Set ": Set the play list. "Playing List": Play list. Press PRE/ NEXT key to select, press STOP key to return the Fig. 02.
-
Page 15: Option Two - Smp-R (Order Code: D2291)
GIG-83CFX Option Two - SMP-R (Order code: D2291) The file system of USB memory for USB players is FAT16 and FAT32and these players can only decode MP3. It has 7 rank subordinate folders at most. USB port: Allows the connection of any USB memory stick. -
Page 16: Option Three - Bluetooth Version 2.1 (Order Code: D2292)
GIG-83CFX Option Three - Bluetooth Version 2.1 (Order code: D2292) Can be paired with mobile phones, tablets or PC Bluetooth adapters to play stereo audio. DISPLAY These two LEDs are used to display different working states: For the first time that the module is powered on, it is in stand-by state and the right LED flashes twice about 2 seconds. -
Page 17: Installation And Connection
Installation and connection At this point you are in a position to successfully operate your GIG-83CFX Mixing Console. However, we advise you to carefully read the following section to be a real master of your own mixer. Not paying enough attention to the input signal level, to the routing of the signal and the assignment of the signal will result in unwanted distortion, a corrupted signal or no sound at all. -
Page 18: Connection Cables
GIG-83CFX Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 19: Block Diagram
GIG-83CFX Block Diagram Order code: D2282... -
Page 20: Preset List Gig-83Cfx
GIG-83CFX Preset List GIG-83CFX Preset Description Parameter Reproduce the sound in input on the output 00~09 Echo Delay Time : 145~205ms after a lapse of time or delay. Delay Time : 208~650ms 10~19 Echo + Verb Echo with Room effect. -
Page 21: Technical Specifications
GIG-83CFX Technical Specifications MODEL: GIG-83CFX mixing console Mono channels Microphone input XLR balanced Frequency response 10Hz to 55KHz,+/-3dB Distortion(THD+N) <0.03% at +0dB ,22Hz~22KHz A-weighted Gain range 0dB to 50dB Max. Input +15 dB LOW CUT 100Hz <-100dBr A-weighted Phantom power... -
Page 22: Notes
GIG-83CFX AUX range OFF to +15dB Fader range OFF to +10dB PHONES/CONTROL-ROOM range OFF to +15dB <-80dB@20Hz~22KHz A-weighted 1 channel & MAIN level:0dB,the Hum & Noise other :minimum <-80dB@0dB 20Hz~22KHz A-weighted MAIN level:0dB, the other Crosstalk :minimum, Power supply AC adaptor... -
Page 23: Dimensions
GIG-83CFX Dimensions Order code: D2282... - Page 24 ©2013 DAP Audio...
