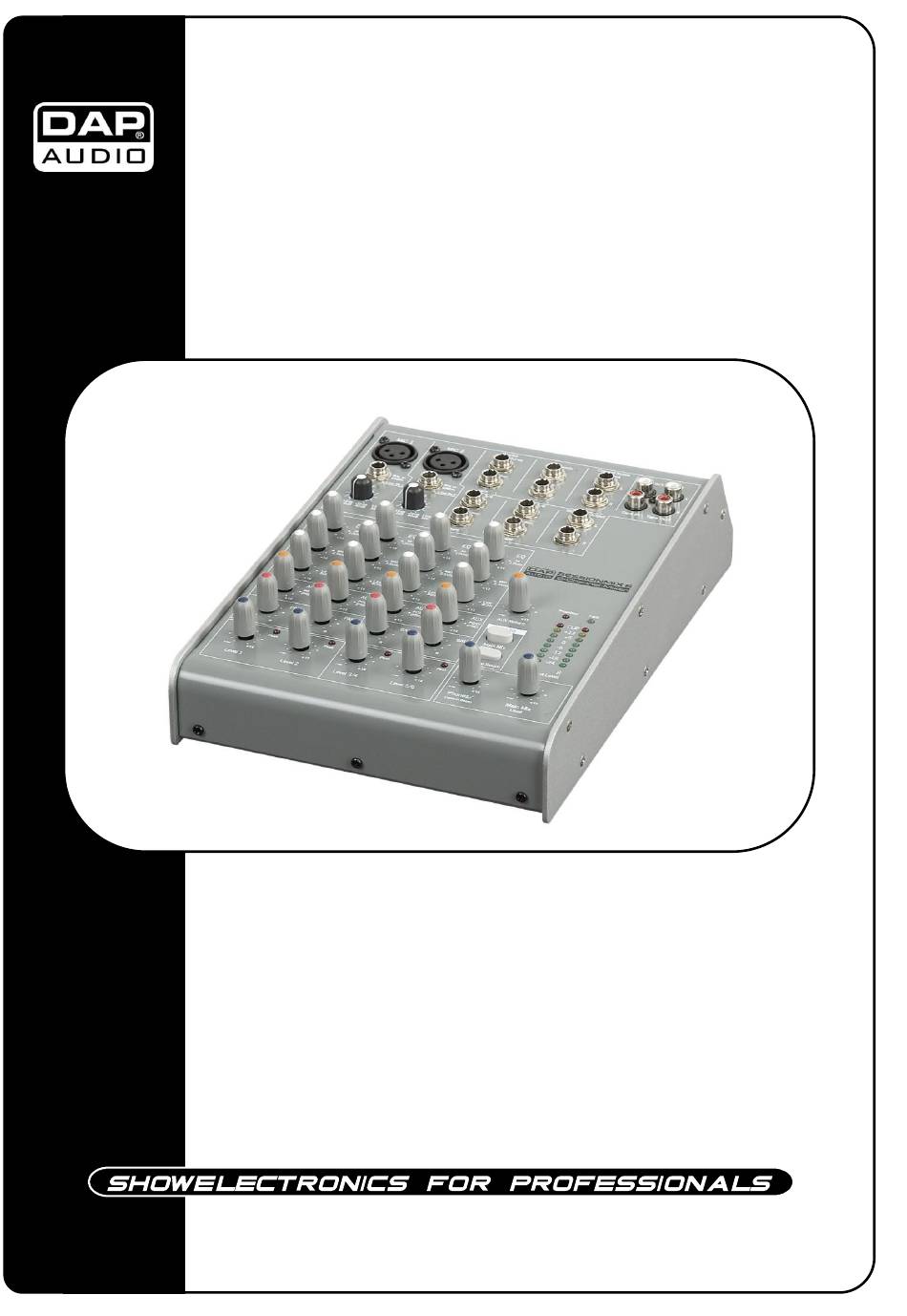

- Page 1 Sessionmix 6 ORDERCODE D2190...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP Audio Sessionmix 6 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio Sessionmix 6 Product Guide ™ Warning..…...................…………………………………………....Safety-instructions………………………………………………………………………………………….…....Operating Determinations………………………………………………………………………………...... Description..…................……….…………………………………....Features……………………………………………………………………………….………………….…...... Overview ..…………………………………………………………………………………….………..……....Frontside.………………………………………………………………………….………..………………..... Backside.………………………………………………………………………….………..……………..…....Installation................…...……………………………………..……….……….. Set Up and Operation.............……..…………………………….…....... Connection Cables......…........………..………….…….………….…....Maintenance………......…........………..………….…….………….…....Troubleshooting………......…........………..………….…….………….…...... Product Specifications..............……………….…….…………………..... Appendix 1: Sessionmix 6 block diagram..............……………..….…….. -
Page 4: Dap Audio Sessionmix
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • DAP Sessionmix 6 • 1X AC/AC adapter A48TI360300-S/1 36VCT~ 300mA • User manual Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. -
Page 5: Safety-Instructions
WARNING CAUTION! Keep this system away from rain and moisture! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires! Before you initial start-up, please make sure that there is no damage caused by transportation. -
Page 6: Operating Determinations
Make sure that the available voltage is not higher than stated on the rear panel. Make sure that the power-cord is never crimped or damaged. Check the system and the power- cord from time to time. Please turn off the power switch, when changing the power cord or signal cable, or select the input mode switch. -
Page 7: Description

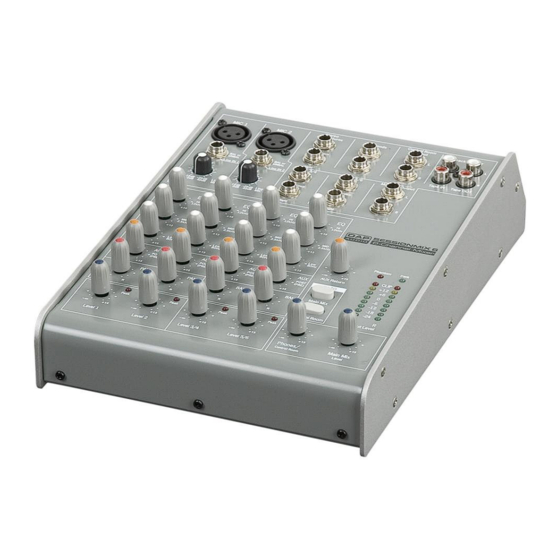

Description of the device Features The Sessionmix 6 is a mixer from Dap Audio. • 6 input channels • 2 mono MIC inputs • 2 stereo Line inputs • Extremely high headroom offering enough dynamic range • Extra low distortion pre-amp section •... -
Page 8: Frontside
Frontside 1) Balanced mic input (mono channel 1-)2 2) Balanced line input mono (mono channel 1-2) 3) Left line input (stereo channel 3-6) 4) Gain range for mic +0 / +40 dB range for line -25 / +15 dB 5) Right line Input (stereo channel 3-6) 6) EQ hi, range -15 / +15 dB 7) EQ mid (stereo channel 5-12), range -15 / +15 dB 8) EQ low, range -15 / +15 dB... - Page 9 13) Main mix right unbalanced out 14) Main mix left unbalanced out 15) Phantom power LED 16) Aux return 17) 2TK to Main mix switch 18) 2TK to Control Room switch 19) Phones/ control room level 20) Power on LED 21) LED VU Meter 22) Main mix level Fig.
-
Page 10: Backside
Backside Fig. 5 29) Power on/off 30) Phantom power switch 31) AC-adapter input Installation Remove all packing materials from the Sessionmix 12 DSP. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. - Page 11 1. Mic Electronically balanced XLR-type inputs for connecting low- impedance microphones. The input provides extremely low noise and low hum signal processing. When connecting a microphone make sure that the pin assignment is correct. Always make sure to read the manual of the microphone you want to connect. The XLR- inputs are not suitable for connecting line level signals like an additional mixing console, FX-unit, etc.
- Page 12 6 / 7 / 8. Equalizer SECTION (HI / MID / LOW) The mixer’s Equalizer section allows shaping of the incoming audio signal. All mono input channels are fitted with 3-band EQ. The upper (6) and lower (8) shelving controls have their frequencies fixed at 12 KHz and 80 Hz respectively.
- Page 13 Do not supply power before the whole system is set up and connected properly. Remote Power Supply Input Socket This is the remote AC power supply input socket for the Sessionmix 6. It is a special three core socket. Please use the supplied DAP audio adapter only.
-
Page 14: Set Up And Operation
Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. -
Page 15: Maintenance
Compensation of interference with balanced connections Maintenance DAP Audio Sessionmix 6 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. -
Page 16: Product Specifications
Product Specification Model: DAP Audio Sessionmix 6 Mono input channels: Mic 1-2 input Electronically balanced Freq. response: 20 Hz - 22 kHz, +/- 1 dB Distortion (THD +N): <0,03% at +0 dB, 1 kHz Gain Range: 0 dB - 40 dB (Mic) SNR: >85 dB... -
Page 17: Appendix 1: Sessionmix 6 Block Diagram
Appendix 1: Sessionmix 6 block diagram... - Page 18 2008 Dap Audio.
