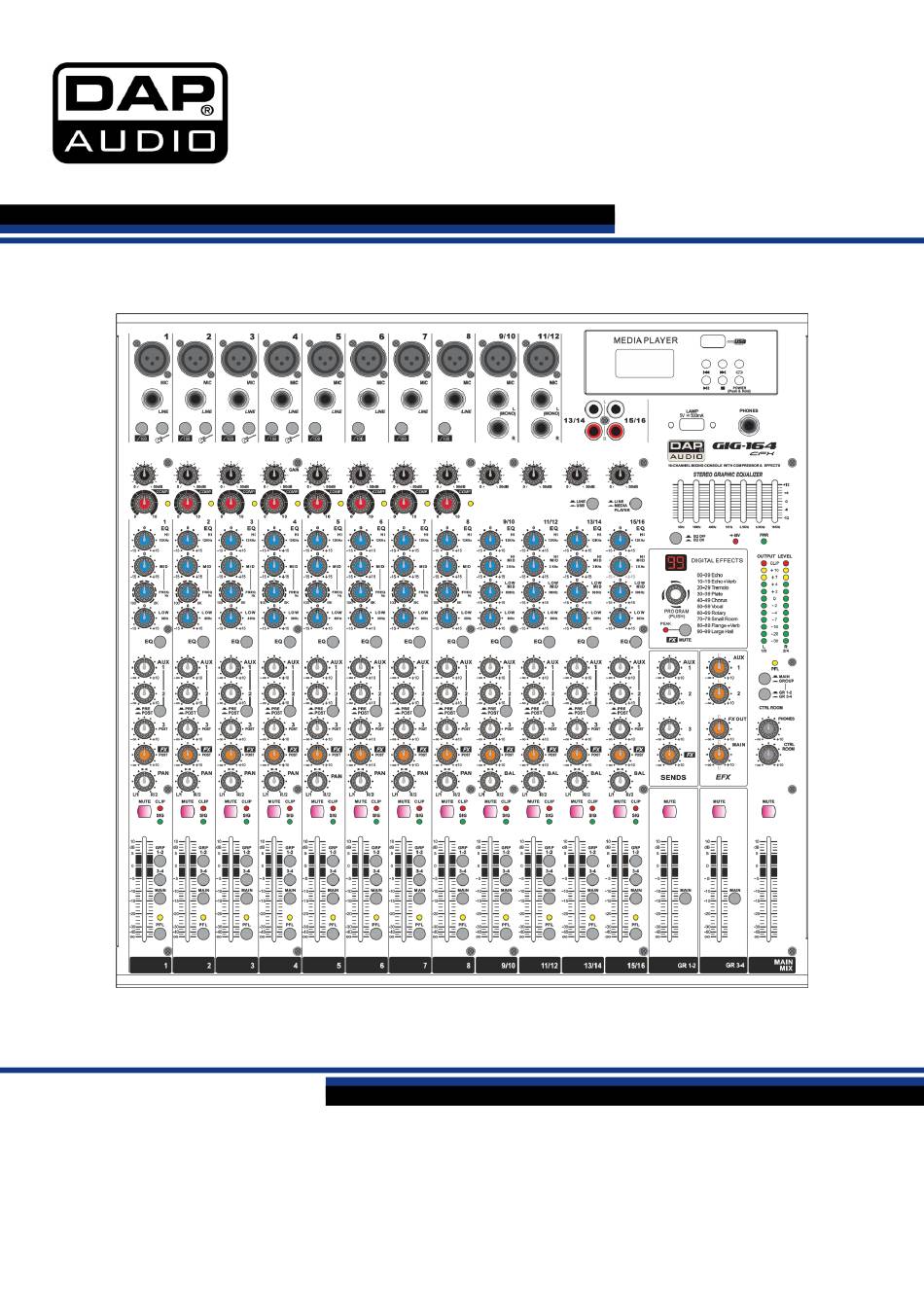

- Page 1 MANUAL ENGLISH GIG-164CFX Order code: D2287 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Media player (Optional) ..............................15 Installation ..................................16 Set Up and Operation ..............................16 Ready to start ................................16 Set up and connection .............................16 Connection Cables .................................17 Preset List GIG-164CFX ..............................18 Maintenance ..................................19 Replacing the Fuse ..............................19 Troubleshooting ................................19 Product Specifications ..............................19 Dimensions ..................................21 Notes ....................................22... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: GIG-164CFX mixing console 3-pin IEC power cable 1,5m ... - Page 4 GIG-164CFX IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the system. Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! ...
-
Page 5: Operating Determinations
GIG-164CFX Operating Determinations This system is not designed for permanent operation. Consistent operation breaks will ensure that the system will serve you for a long time without defects. If this system is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void. -
Page 6: Return Procedure
GIG-164CFX Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 7: Description Of The Device
GIG-164CFX Description of the device Features The DAP GIG-164CFX is a professional compact mixer, which gives you great quality and better reliability than ever before. It is really ideal for gigs, recording and fixed PA installations. Ultra-low noise discrete MIC Preamps with +48V Phantom Power. -
Page 8: Control Elements
GIG-164CFX Control Elements Elements section 1 1. MIC INPUT JACKS (CHs 1 to 11/12) Electronically balanced XLR-type inputs for connecting low-impedance microphones. The input provides extremely low noise and low hum signal processing. When connecting a microphone make sure that the pin assignment is correct. -
Page 9: Elements Section 2
GIG-164CFX 7. LED INDICATOR COMPRESSOR The LED indicator will light up when compressing. 8. LINE INPUT JACKS (CHs 9/10 and 11/12) The stereo channels consist of two line inputs (¼" jacks), one for the left and one for the right channel. The inputs are unbalanced (TS connectors). - Page 10 GIG-164CFX 15. EQUALIZER The high-frequency range is processed with a shelving filter above 12 kHz. You can boost or cut the bands up to 15 dB. In the center position (0 dB), the equalizer has a flat response. The mid control adjusts the mid frequency range. You can boost or cut the bands up to 15 dB. In the center position (0 dB), the equalizer has a flat response.
-
Page 11: Elements Section 3
GIG-164CFX 27. GROUP 1-2 Each channel is equipped with a GR1-2 switch, which allows you to feed multiple channels to a stereo mix down. The volume level can be adjusted using the GR1-2 LEVEL fader. 28. GROUP 3-4 Each channel is equipped with a GR3-4 switch, which allows you to feed multiple channels to a stereo mix down. -
Page 12: Elements Section 4
GIG-164CFX 31. EQUALIZER The high-frequency range is processed with a shelving filter above 12 kHz. You can boost or cut the bands up to 15 dB. In the center position (0 dB), the equalizer has a flat response. HI MID The high mid control adjusts the high mid frequency range. - Page 13 GIG-164CFX 33. STEREO GRAPHIC EQUALIZER This equalizer gives you up to 12 dB boost or cut at 63 Hz, 160 Hz, 400 Hz, 1 KHz, 2.5 KHz, 6.3 KHz and 16 KHz. 34. ACTIVATE STEREO GRAPHIC EQUALIZER With this button you can activate the stereo graphic equalizer.
- Page 14 GIG-164CFX 50. CHANNEL FADER GROUP 3-4 Use this fader to control the output level of the subgroup mix. 51. MAIN GR 1-2 Pressing this button, the total signal from group 1-2 will send to the MAIN MIX bus. 52. MAIN GR 3-4 Pressing this button, the total signal from group 3-4 will send to the MAIN MIX bus.
-
Page 15: Backside
The red Phantom LED (35) will light if the phantom power is activated. 63. USB PORT This USB port can be used to connect the GIG-164CFX to your PC/ laptop. You can use this connector for playback or record with your favorite media player. -
Page 16: Media Player (Optional)
GIG-164CFX 72. INSERT JACKS The insert connectors (unbalanced ¼" stereo jack connectors) are used to connect to external signal processors. You can connect a compressor, noise gate or equalizer to process the signal of a single channel. Media player (Optional) With this player you can play your MP3 files. -
Page 17: Installation
Set up and connection At this point you are in a position to successfully operate your GIG-164CFX Mixing Console. However, we advise you to carefully read the following section to be a real master of your own mixer. Not paying enough attention to the input signal level, to the routing of the signal and the assignment of the signal will result in unwanted distortion, a corrupted signal or no sound at all. -
Page 18: Connection Cables
GIG-164CFX Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 19: Preset List Gig-164Cfx
GIG-164CFX Preset List GIG-164CFX Preset Description Parameter Reproduce the sound input on the output after 00~09 Echo Delay Time: 145~205ms a lapse of time or delay. Delay Time: 208~650ms 10~19 Echo + Verb Echo with Room effect. Decay time: 1.7~2.1s... -
Page 20: Maintenance
GIG-164CFX Maintenance The DAP GIG-164CFX requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. - Page 21 GIG-164CFX Stereo input channels Mic input: XLR balanced LOW CUT: 100Hz Line input: 1/4' TRS or TRS/RCA un-balanced Frequency response: 10Hz to 55KHz,+/-3dB Distortion(THD+N): <0.03% at +0dB ,22Hz~22KHz A-weighted Sensitivity range: -20dBu~ +20dBu SNR: <-100dBr A-weighted Phantom power: +48V with switch control...
-
Page 22: Dimensions
GIG-164CFX Dimensions Order code: D2287... -
Page 23: Notes
GIG-164CFX Notes Order code: D2287... - Page 24 ©2017 DAP Audio...
