Summary of Contents for DAPAudio IMIX 5.3

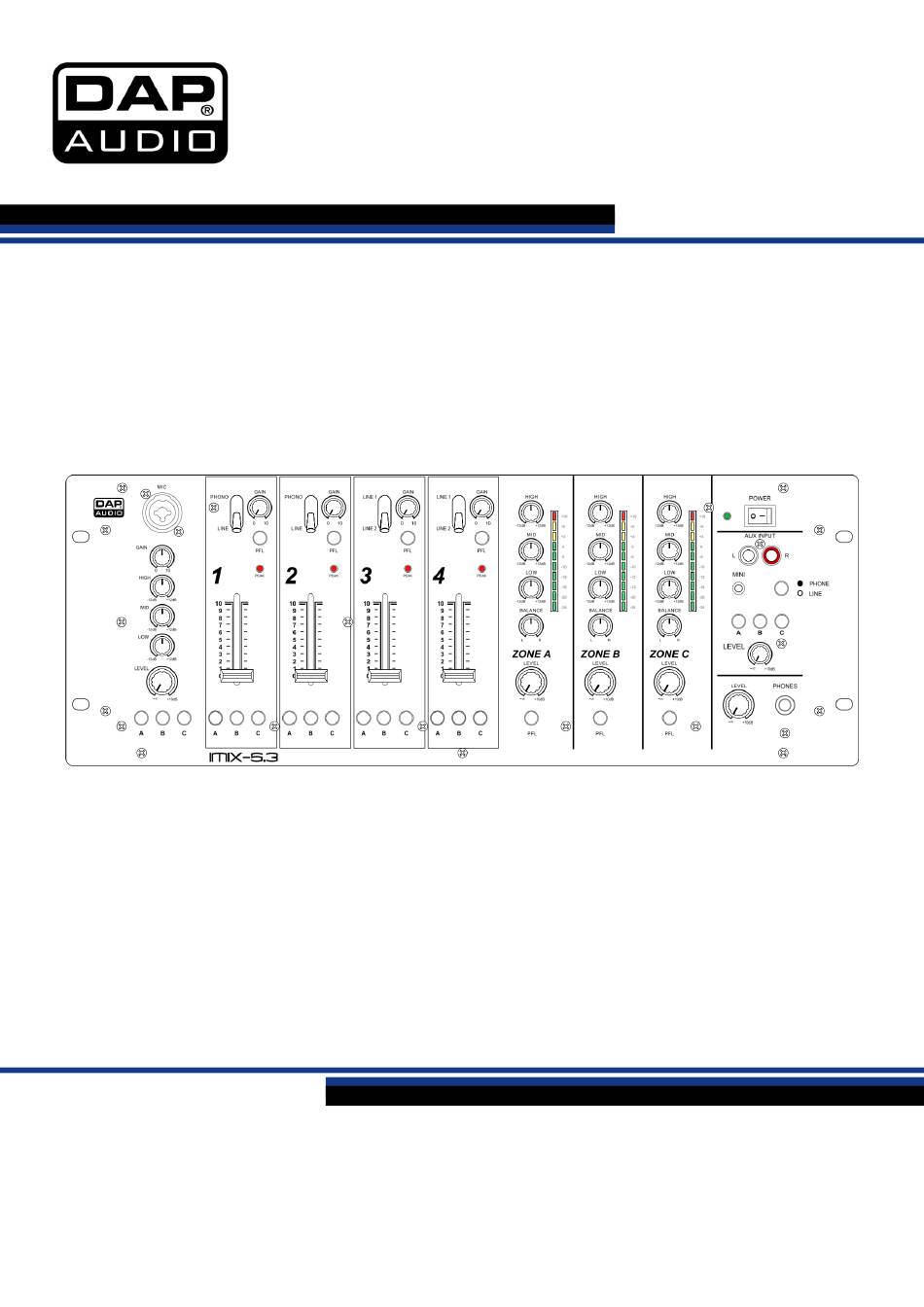

- Page 1 MANUAL ENGLISH IMIX 5.3 Ordercode: D2352 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
IMIX 5.3 Table of contents Warning ....................................2 Unpacking Instructions ..............................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Connection with the mains............................4 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................4 Features ..................................4 Overview .................................. -
Page 3: Warning
IMIX 5.3 Warning FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. -
Page 4: Operating Determinations
IMIX 5.3 Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! Never remove warning or informative labels from the unit. Never use anything to cover the ground contact. -
Page 5: Connection With The Mains
IMIX 5.3 Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE... -
Page 6: Overview
IMIX 5.3 Overview Front Gain control (mic) Low control (channel 1-4) Mic 1 balanced input connector Aux in unbalanced mini jack input connector High control (mic) Power on LED Mid control (mic) Power on/off switch Mic level control Aux in unbalanced RCA input connectors... -
Page 7: Rear
IMIX 5.3 Rear IEC cable inlet Zone B RCA unbalanced out connector Zone C XLR balanced out connectors Channel 4 line 1/line 2 input connectors Zone B XLR balanced out connectors Channel 3 line 1/line 2 input connectors Zone A XLR balanced out connectors... -
Page 8: Functions
IMIX 5.3 Functions 1. Mic gain control The input sensitivityof the Mic (2) input is determined by the gain control. With the gain control you are able to adjust the input-sensitivity for an optimal match with the mixer’s internal operation level. The high gain of this mixer is ideal when dealing with very low input levels. - Page 9 IMIX 5.3 Input selection switch (channel 1/2) With this you are able to assign the line inputs or the phono inputs to the according channel. 10. Peak LED The peak LED shows peak levels in a channel’s incoming signal level. If the red peak LED frequently...
- Page 10 IMIX 5.3 17. Aux mini jack in connector Unbalanced stereo mini jack aux input for connecting a line/phones level device. Use the phone/Line (21) button to set up this input for connecting either headphone or line level output devices. 18. Power LED Indicates that the IMIX-5.3 is switched on.
- Page 11 IMIX 5.3 Power adapter connector This is the remote AC power supply input socket for the IMIX-5.3 It is a special three core socket. Please use the supplied DAP audio adapter only. 31. Zone C XLR balanced out connectors Use these outputs to connect an amplifier with balanced inputs.
-
Page 12: Set Up And Operation
IMIX 5.3 Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 115V specification product on 230V power, or vice versa. Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. -
Page 13: Troubleshooting
IMIX 5.3 Troubleshooting DAP Audio IMIX-5.3 This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps. -
Page 14: Block Diagram
IMIX 5.3 Block diagram Ordercode: D2352... -
Page 15: Notes
IMIX 5.3 Notes Ordercode: D2352... - Page 16 ©2013 DAP Audio...
