Summary of Contents for DAPAudio Sessionmix 12 DSP
- Page 1 Sessionmix 12 DSP ORDERCODE D2193...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP Audio Sessionmix 12 DSP brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio Sessionmix 12 DSP Product Guide ™ Warning..…...................…………………………………………....Safety-instructions………………………………………………………………………………………….…....Operating Determinations………………………………………………………………………………...... Description..…................……….…………………………………....Features……………………………………………………………………………….………………….…...... Overview ..…………………………………………………………………………………….………..……....Frontside.………………………………………………………………………….………..………………..... Backside.………………………………………………………………………….………..……………..…....Installation................…...……………………………………..……….……….. Set Up and Operation.............……..…………………………….…....... Connection Cables......…........………..………….…….………….…....Maintenance………......…........………..………….…….………….…....Troubleshooting………......…........………..………….…….………….…...... Product Specifications..............……………….…….…………………..... Appendix 1: Sessionmix 12 DSP block diagram..............……………….…….. -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • DAP Sessionmix 12 DSP • 1X 1,80 m, 3-pin IEC powercable • User manual Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. -
Page 5: Safety-Instructions
WARNING CAUTION! Keep this system away from rain and moisture! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires! Before you initial start-up, please make sure that there is no damage caused by transportation. -
Page 6: Operating Determinations
Make sure that the available voltage is not higher than stated on the rear panel. Make sure that the power-cord is never crimped or damaged. Check the system and the power- cord from time to time. Please turn off the power switch, when changing the power cord or signal cable, or select the input mode switch. -
Page 7: Description

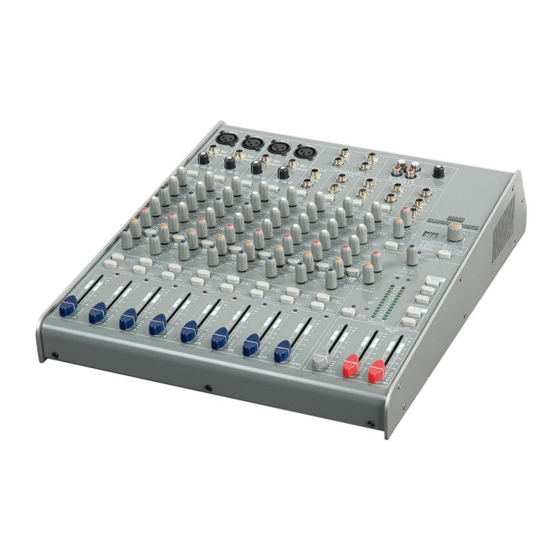

Description of the device Features The Sessionmix 12 DSP is a mixer from Dap Audio. • 12 input channels • 4 mono MIC inputs • 4 stereo Line inputs • Built in DSP module with 99 presets: Echo + Verb, Tremelo, Plate, Leslie, Vocal, Rotary, Small Room, Flanger + Verb, Large Hall •... -
Page 8: Frontside
Frontside 1) Balanced mic input (mono channel 1-4) 2) Balanced line input mono (mono channel 1-4) 3) Left line input (stereo channel 5-12) 4) Gain range for mic +0 / +40 dB range for line -25 / +15 dB 5) Right line Input (stereo channel 5-12) 6) Low cut filter (mono channel 1-4) 7) Line level switch +4dB/ -10dB (stereo channel 5-12) 8) EQ hi, range -15 / +15 dB... - Page 9 22) Aux 1 return 23) Aux 2/ DFX return 24) EFX to aux 1 switch 25) Peak / mute LED 26) Preset dial 27) Digital effects display 28) Digital effects mute switch 29) Phones 29) Phones/ control room level 30) Aux 1 send 31) Phantom power LED 32) Aux 2 send 33) LED VU Meter...
-
Page 10: Backside
63) Alt unbalanced out left right 64) Channel 1-4 insert Installation Remove all packing materials from the Sessionmix 12 DSP. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. - Page 11 If you push the “Low Cut” button, a filter will be inserted into the audio chain of the Sessionmix 12 DSP that has a characteristic 62Hz, 18dB/oct high pass characteristic to cut any undesired low frequencies. This function can be used to cut the humming sound or to prevent resonances of low frequencies, when the speakers are placed in close distance.
- Page 12 Insert for external device, effect, compressor etc. The insert jack is situated at the rear of the Sessionmix 12 DSP. It provides an output of the channels signal is amplified to line-level. At the same time the inserts have an input at line level from where the signal is further routed through the channels equalizer and so forth.
- Page 13 3/ 5. LINE in Unbalanced stereo inputs for connecting a keyboard, CD player, mixer, etc. You can connect unbalanced signal sources to the Line input. If using a mono device, always connect it to the Left (mono) input. Note: When connecting signal sources, please make sure that the corresponding channel faders and the master faders are at their minimum settings.
- Page 14 43 / 45. MASTER Fader These faders control respectively the Left and Right output level. 44. ALT 3-4 Fader The fader controls the ALT output level. Please, make sure to close the fader of the corresponding input channel or at least the MASTER controls before connecting any audio signal sources.
- Page 15 41. Assign ALT3-4 to mix Use this button to assign the ALT3-4 group to the main mix. ALT3-4 level is controlled by the ALT3-4 fader (44). 42. Assign 2TK to mix Use this button to assign the 2TK input to the main mix. 2TK level is controlled by the 2TK IN control (50). 22.
- Page 16 Fig. 15 54. Phantom Power Switch Press this button to turn the phantom power +48V on. Do not connect any unbalanced microphones with the phantom power switched on. The red Phantom LED (31) will light if the phantom power is activated. 55.
-
Page 17: Set Up And Operation
Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. -
Page 18: Maintenance
Compensation of interference with balanced connections Maintenance DAP Audio Sessionmix 12 DSP requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. -
Page 19: Product Specifications
Product Specification Model: DAP Audio Sessionmix 12 DSP Mono input channels: Mic 1-4 input Electronically balanced Freq. response: 20 Hz - 22 kHz, +/- 1 dB Distortion (THD +N): <0,03% at +0 dB, 1 kHz Gain Range: 0 dB - 40 dB (Mic) SNR: >85 dB... -
Page 20: Appendix 1: Sessionmix 12 Dsp Block Diagram
Appendix 1: Sessionmix 12 DSP block diagram... - Page 21 2008 Dap Audio.
