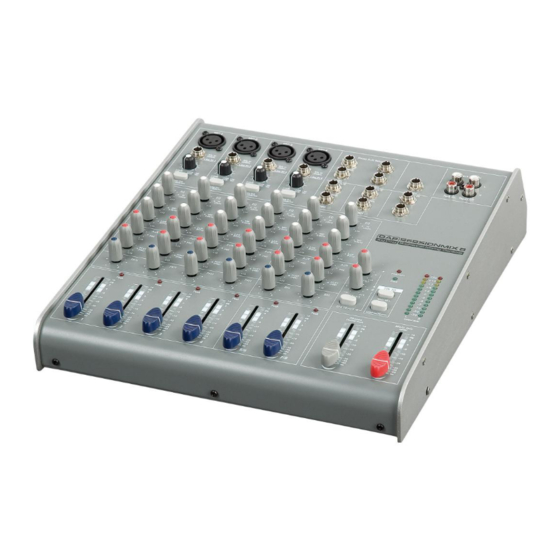

Sessionmix 8
ORDERCODE D2191

Advertisement

Table of Contents
loading

Related Manuals for DAPAudio Sessionmix 8

Summary of Contents for DAPAudio Sessionmix 8

  • Page 1 Sessionmix 8 ORDERCODE D2191...
  • Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP Audio Sessionmix 8 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.

  • Page 3: Table Of Contents

    DAP Audio DAP Audio Sessionmix 8 Product Guide ™ Warning..…...................…………………………………………....Safety-instructions………………………………………………………………………………………….…....Operating Determinations………………………………………………………………………………...... Description..…................……….…………………………………....Features……………………………………………………………………………….………………….…...... Overview ..…………………………………………………………………………………….………..……....Frontside.………………………………………………………………………….………..………………..... Backside.………………………………………………………………………….………..……………..…....Installation................…...……………………………………..……….……….. Set Up and Operation.............……..…………………………….…....... Connection Cables......…........………..………….…….………….…....Maintenance………......…........………..………….…….………….…....Troubleshooting………......…........………..………….…….………….…...... Product Specifications..............……………….…….…………………..... Appendix 1: Sessionmix 8 block diagram..............……………….…..…..

  • Page 4: Dap Audio Sessionmix

    Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • DAP Sessionmix 8 • 1X AC/AC adapter AC500E 2x 18VAC~ 500mA • User manual Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

  • Page 5: Safety-Instructions

    WARNING CAUTION! Keep this system away from rain and moisture! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires! Before you initial start-up, please make sure that there is no damage caused by transportation.

  • Page 6: Operating Determinations

    Make sure that the available voltage is not higher than stated on the rear panel. Make sure that the power-cord is never crimped or damaged. Check the system and the power- cord from time to time. Please turn off the power switch, when changing the power cord or signal cable, or select the input mode switch.

  • Page 7: Description

    Description of the device Features The Sessionmix 8 is a mixer from Dap Audio. • 8 input channels • 4 mono MIC inputs • 2 stereo Line inputs • Extremely high headroom offering enough dynamic range • Extra low distortion pre-amp section •...

  • Page 8: Frontside

    Frontside 1) Balanced mic input (mono channel) 2) Balanced line input mono (mono channel) 3) Left line input (stereo channel) 4) Gain range for mic +0 / +40 dB range for line -25 / +15 dB 5) Right line Input (stereo channel) 6) Low cut filter (mono channel) 7) EQ hi, range -15 / +15 dB 8) EQ mid, range -15 / +15 dB...
  • Page 9 15) Phantom power LED 16) Aux 1 return 17) Power on LED 18) Aux 2 return 19) Aux 1 to Aux 2 switch 20) Phones/ control room level fader 21) LED VU meter 22) 2TK to main mix switch 23) 2TK to main mix switch 24) Main mix level Fig.

  • Page 10: Backside

    38) Control room unbalanced out left/ right 39) Channel 1-4 insert Installation Remove all packing materials from the Sessionmix 8. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing.
  • Page 11 1. Mic Electronically balanced XLR-type inputs for connecting low- impedance microphones. The input provides extremely low noise and low hum signal processing. When connecting a microphone make sure that the pin assignment is correct. Always make sure to read the manual of the microphone you want to connect. The XLR- inputs are not suitable for connecting line level signals like an additional mixing console, FX-unit, etc.
  • Page 12 6. Low cut switch If you push the “Low Cut” button, a filter will be inserted into the audio chain of the Sessionmix 12 DSP that has a characteristic 75Hz, 18dB/oct high pass characteristic to cut any undesired low frequencies. This function can be used to cut the humming sound or to prevent resonances of low frequencies, when the speakers are placed in close distance.
  • Page 13 15. Phantom Power LED This LED indicates when the phantom power is switched on for the microphone inputs. After switching on the mixer, the red LED should not light up. So both balanced and unbalanced microphones can be connected. Unbalanced microphones may be damaged if the Phantom power is activated however unbalanced microphones are rarely to be found these days.
  • Page 14 25. Aux 1 returns Use these stereo inputs in combination with the Aux 1 send to connect an external effect device. 26. Aux 2 returns Use these stereo inputs in combination with the Aux 2 send to connect an external effect device.

  • Page 15: Set Up And Operation

    Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability.

  • Page 16: Maintenance

    Compensation of interference with balanced connections Maintenance DAP Audio Sessionmix 8 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid.

  • Page 17: Product Specifications

    Product Specification Model: DAP Audio Sessionmix 8 Mono input channels: Mic 1-4 input Electronically balanced Freq. response: 20 Hz - 22 kHz, +/- 1 dB Distortion (THD +N): <0,03% at +0 dB, 1 kHz Gain Range: 0 dB - 40 dB (Mic) SNR: >85 dB...

  • Page 18: Appendix 1: Sessionmix 8 Block Diagram

    Appendix 1: Sessionmix 8 DSP block diagram...
  • Page 19 2008 Dap Audio.
