Compak E6 OD Instruction Manual page 26

12.3.2. Models with conical burrs

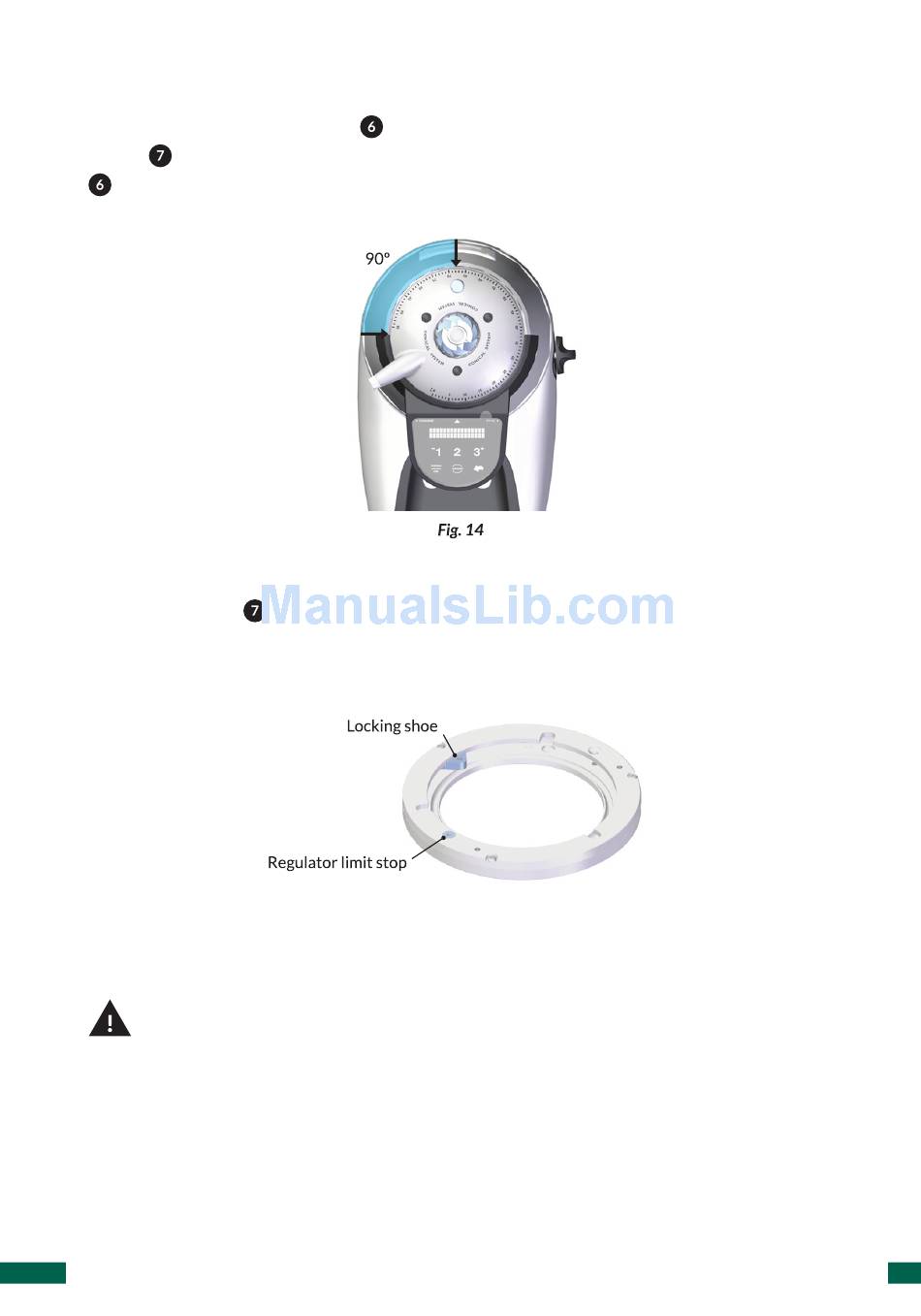

Position the regulator collar (
screw ( ) and regulator limit stop (Fig. 14). In that position, tighten the regulator
( ) on the upper burr carrier and with a T20 Torx screwdriver, as Fig. 10.
For the models with the micrometric Parallel system, first make sure that the grind
point lock screw (
screw and locking foot move in conjunction with one another, and that the locking
mechanism works properly (Fig. 11).
This process should be performed with extreme caution, making sure that there
are no coffee particles or debris in the housing threading. Also the placement of the
upper burr assembly should be done with caution, making sure it is perfectly level
and screwed in patiently. Failure to clean, lubricate or properly place the upper burr
assembly prior to screwing in, can result in blockage or locking of grind adjustment
system.
24
) leaving about 90º between the grind point lock
) is lined up with the locking foot. This will ensure that the lock
ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v. 22/09/2014 | K06307
