VIESMANN
Installation and service
instructions
for contractors

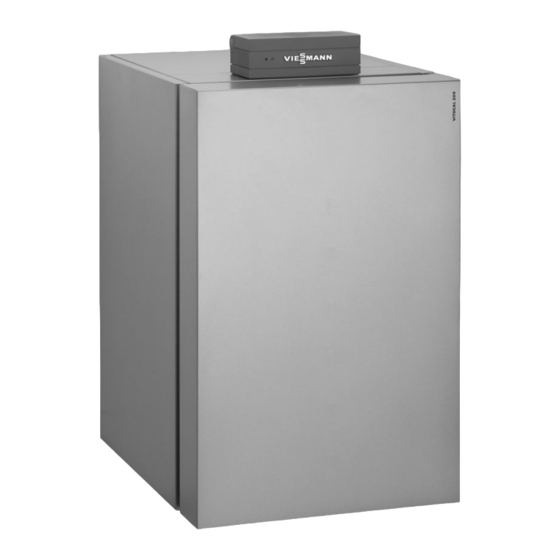

Vitocal 200-G
Type BWC 201.A06 to A17, 6 to 17 kW
Single stage heat pump with electric drive, 400 V~
Type BWC-M 201.A06 to A10, 6 to 10 kW
Single stage heat pump with electric drive, 230 V~
For applicability, see the last page
VITOCAL 200-G
Please keep safe.
5600 138 GB
5/2013
