VIESMANN
Technical guide
VITOCAL 200-G
Type BWP

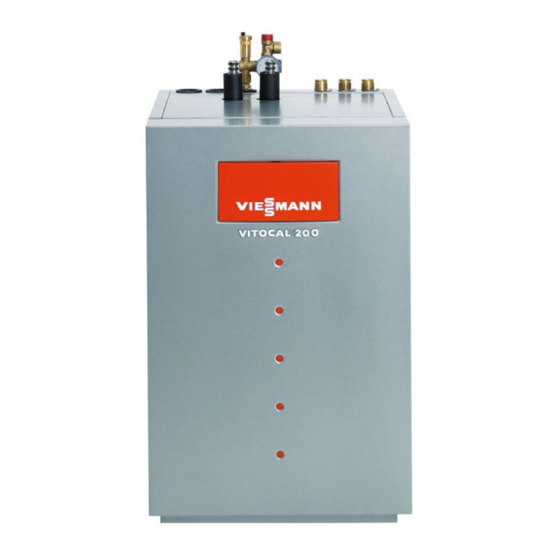

Compact brine/water heat pump
Compact brine/water heat pump with 6.4 to 9.6 kW rated
■
heating output for central heating and DHW
Circulation pumps for brine and heating circuit plus integral
■
heating/DHW diverter valve and heating circuit safety
assembly
Prepared for the permanent or temporary integration of an
■
instantaneous heating water heater (accessory) with 9 kW (3
stages)
5442 496 GB
9/2009
VITOCAL 200-G
Brine/water heat pump
