VIESMANN
VITOCAL 200-G
Brine/water heat pump
6.1 to 9.7 kW
Datasheet
Part numbers and prices: see pricelist
VITOCAL 200-G
Type BWP
Up to 60 ºC flow temperature
Heat pump with electric drive for DHW and central heating
in mono-mode or mono-energetic heating systems
With integral brine and heating circuit pump, three-way
"Central heating/DHW" diverter valve and fitted safety
equipment
5822 347-2 GB
4/2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VITOCAL 200-G and is the answer not in the manual?

Questions and answers

Related Manuals for Viessmann VITOCAL 200-G

Summary of Contents for Viessmann VITOCAL 200-G

  • Page 1 VIESMANN VITOCAL 200-G Brine/water heat pump 6.1 to 9.7 kW Datasheet Part numbers and prices: see pricelist VITOCAL 200-G Type BWP Up to 60 ºC flow temperature Heat pump with electric drive for DHW and central heating in mono-mode or mono-energetic heating systems With integral brine and heating circuit pump, three-way "Central heating/DHW"...

  • Page 2: Product Information

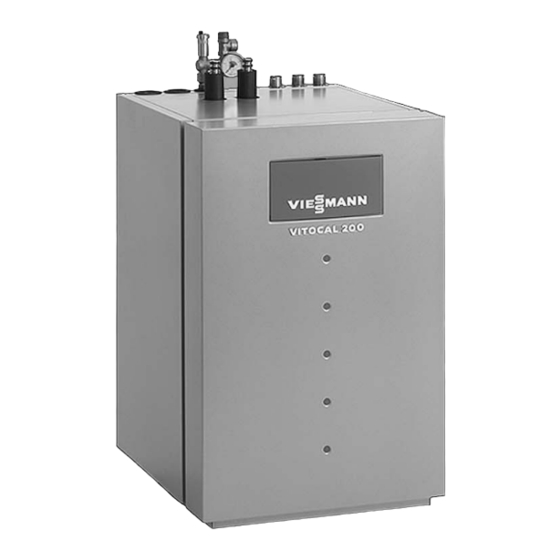

    Product information Vitocal 200-G Heat from the ground: The Vitocal 200-G extracts energy from the ground with the help of ground collectors or ground probes. The ground provides almost completely stable temperatures all the year round, enabling the Vitocal 200-G to operate virtually independently of the outside temperature.
  • Page 3 Benefits (cont.) A Hermetically sealed Compliant scroll compressor B Brine circuit pump C Condenser D Evaporator E Weather-compensated, digital heat pump control unit CD 70 F Safety equipment block with safety assembly VIESMANN VITOCAL 200-G...

  • Page 4: Specification

    Specification Vitocal 200-G Type BWP 106 BWP 108 BWP 110 Heat pump performance data Heating output Refrigerating capacity Power consumption Coefficient of Performance ∊ (COP) during heating operation Instantaneous heating water heater (acces- sories) performance data Heat output stepped 3/6/9 Instantaneous heating water heater output 15.1...
  • Page 5 Specification (cont.) Dimensions Cable entries HR Heating return Safety assembly HV Heating flow Primary flow (brine) IN SRL DHW return Primary return (brine) OUT SVL DHW flow VIESMANN VITOCAL 200-G...

  • Page 6: Output Diagrams

    Coefficient of Performance ∊ (COP) A Heating output B Refrigerating capacity C Power consumption = 35 °C = 45 °C = 55 °C Data for the COP in tables and diagrams calculated with reference to DIN EN 255. VIESMANN VITOCAL 200-G...
  • Page 7 Type BWP 108 Output data Operating point B0/W35 B2/W45 B2/W55 Heating output Refrigerating capacity Power consumption Coefficient of Performance ∊ (COP) A Heating output B Refrigerating capacity C Power consumption = 35 °C = 45 °C = 55 °C VIESMANN VITOCAL 200-G...
  • Page 8 Type BWP 110 Output data Operating point B0/W35 B2/W45 B2/W55 Heating output Refrigerating capacity Power consumption Coefficient of Performance ∊ (COP) A Heating output B Refrigerating capacity C Power consumption = 35 °C = 45 °C = 55 °C VIESMANN VITOCAL 200-G...

  • Page 9: Delivered Condition

    (accessories) and additionally, when using Including screed drying programs (utilisation permissible only in the natural cooling function, one cooling circuit with mixer conjunction with the instantaneous heating water heater) & (accessories) Menu-guided operation & With cylinder thermostat VIESMANN VITOCAL 200-G...

  • Page 10: Design Information

    For connectable output, see the DHW cylinder manufacturer's specification. Note We recommend the installation of the Vitocell 100-V, type CVW DHW cylinder with 390 l capacity (for further details, see the sepa- rate datasheet). VIESMANN VITOCAL 200-G...
  • Page 11 Diaphragm expansion vessels Install separate diaphragm expansion vessels for the brine and heating circuits. Technical guide For further details regarding the design and sizing, see the "Vitocal 200-G/222-G/242-G technical guide". Accessories Brine accessory pack Part no. Z002 394 & Pressure gauge Assembled connection set.
  • Page 12 Vitoset pricelist & Installation accessories Contact humidistat Part no. 7881 418 & Contact sensor for capturing the dew point & to prevent the formation of condensate VIESMANN VITOCAL 200-G...

  • Page 13: Room Temperature Sensor

    Specification Protection class Protection level IP 30 to EN 60529; safeguard through appro- priate design and instal- lation Permissible ambient temperature – during operation 0 to +40 °C – during storage and transport −20 to +65 °C VIESMANN VITOCAL 200-G...

  • Page 14: Extension Kit For One Heating Circuit With Mixer With Integral Mixer Motor

    Runtime for 90 °∢ 120 min & BUS connecting cable (3.0 m long) The mixer motor is mounted directly onto the Viessmann mixer DN 20 to 50 and R ½" to 1¼". Flow temperature sensor (contact sensor) Mixer electronics with mixer motor Secured with a tie.

  • Page 15: Immersion Thermostat

    May be used as a maximum temperature limiter for underfloor heating systems (only in conjunction with metallic pipes). The temperature limiter is installed into the heating flow and switches the heating circuit pump OFF in case of excessive flow temperature. VIESMANN VITOCAL 200-G...

  • Page 16: Km Bus Distributor

    -20 to +65 °C Tested quality CE designation according to current EC Directives International quality seal for heat pumps. Subject to technical modifications. Viessmann Werke GmbH&Co KG Viessmann Limited D-35107 Allendorf Hortonwood 30, Telford Telephone: +49 6452 70-0 Shropshire, TF1 7YP, GB...
